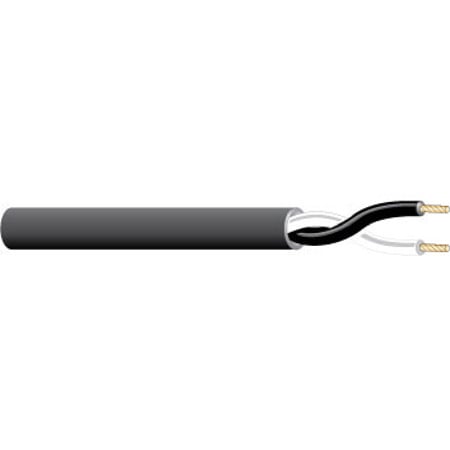

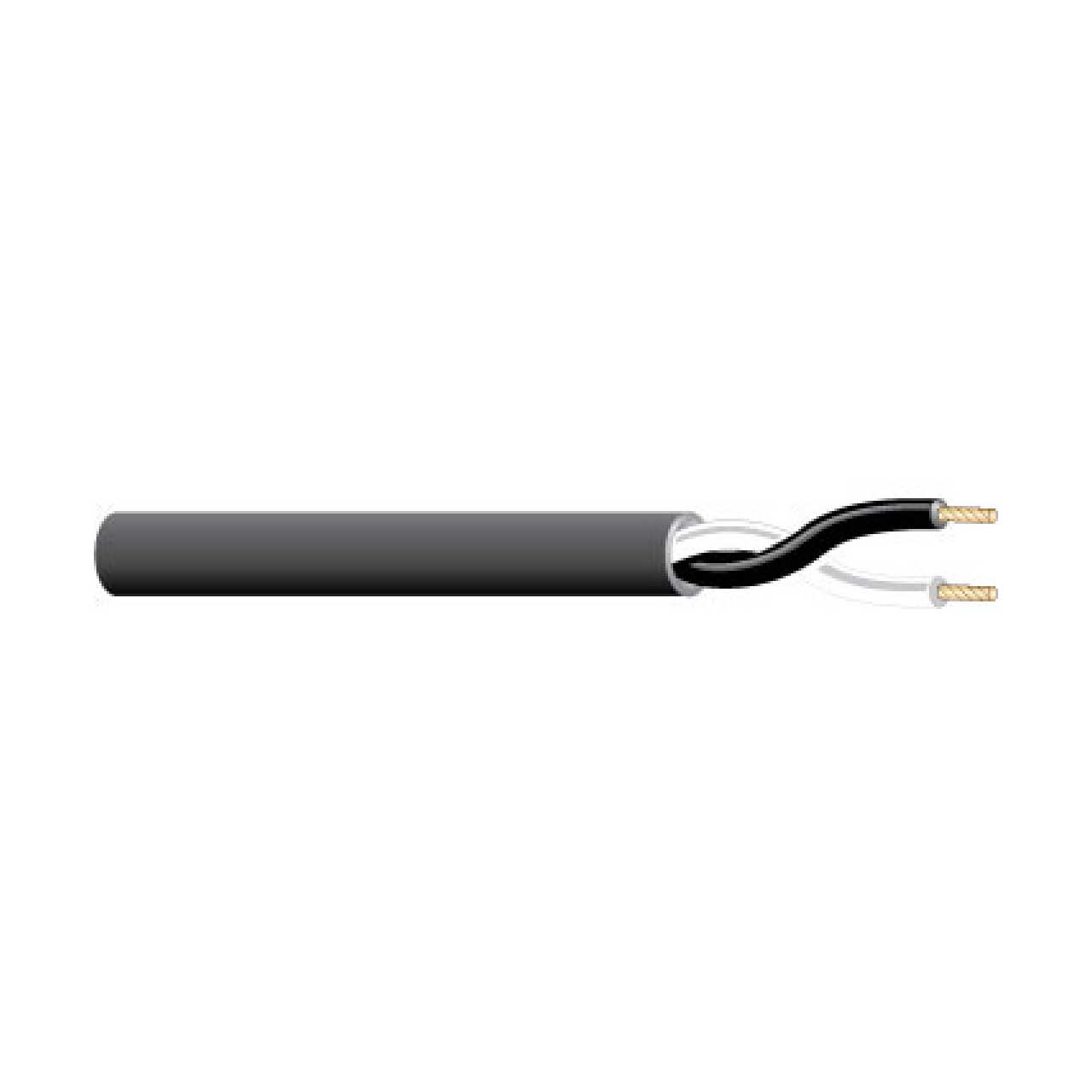

West Penn 25226B 14/2 Plenum Speaker Cable 1000 Feet Gray
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn 25226B 14/2 Plenum Speaker Cable 1000 Feet Gray

    Manufacturer: West Penn Wire Corp

    Item #: WP-25226B-1000   •   MFG #: WP-25226B-1000







    Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems,Security Systems, Sound, Audio, Background Music)

    • Specifications

      • Conductor: 14 AWG Bare Copper
      • Stranding: 19x27
      • Insulation: Material Flex Plenum PVC
      • Insulation: Thickness 0.010'' Nom.
      • Number of Conductors: 2
      • Shield: None
      • Drain: None
      • Jacket: Material Flex Plenum PVC
      • Jacket: Thickness 0.015'' Nom.
      • Overall Cable Diameter: 0.218'' Nom.
      • Approximate Cable Weight: 36 Lbs/1M' Nom.
      • Flame Rating: NFPA 262 Flame
      • Temperature Rating: -10°C To +60°C
      • Operating Voltage: 150 V RMS
      • Max.Capacitance: Between Conductors @ 1 KHz 34 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C: 2.7 Ohms/1M' Nom.
      • Insulation Colors: Black, Red
      • Jacket Color: Gray, Black
      • RoHS Compliant: Yes
