West Penn WP-25290B - 22 AWG 2 Cond. Plenum Shielded Cable - 1000ft

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn WP-25290B - 22 AWG 2 Cond. Plenum Shielded Cable - 1000ft

    Manufacturer: West Penn Wire Corp

    Item #: WP-25290B   •   MFG #: 25290B



    List Price:$115.00
    Our Price:$99.95

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!

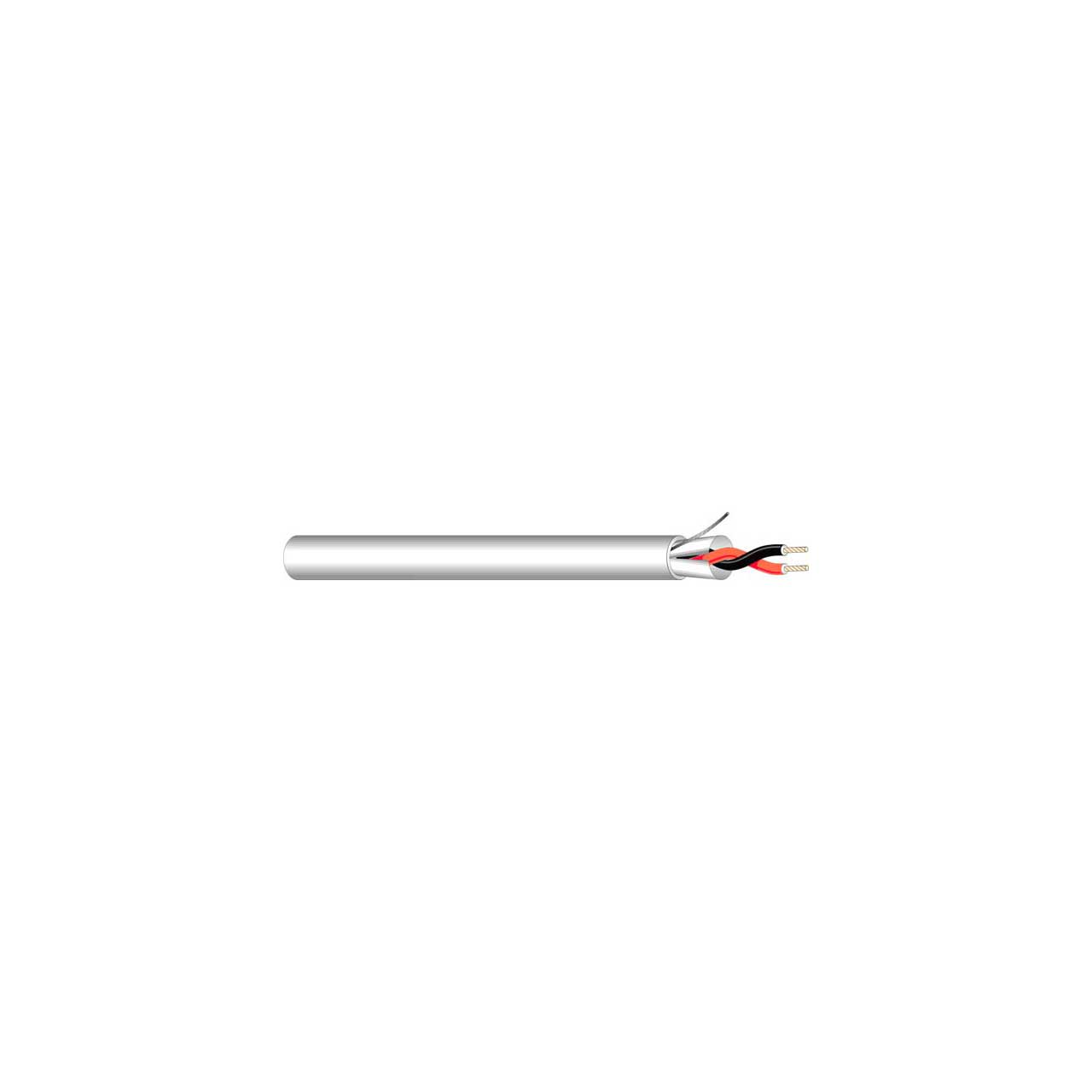

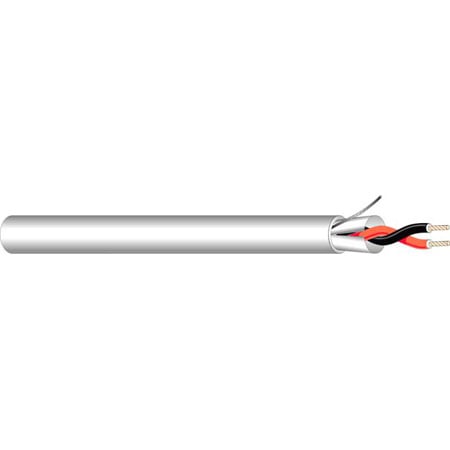

    22/2 Solid bare copper conductors, shielded with an overall jacket.
    APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)


    • Specifications

      • Conductor 22 AWG Bare Copper
      • Stranding Solid
      • Insulation Material Flex Plenum PVC
      • Insulation Thickness 0.080'' Nom.
      • Number of Conductors 2
      • Shield 100% Aluminum Polyester Foil
      • Drain Stranded Tinned Copper
      • Jacket Material Flex Plenum PVC
      • Jacket Thickness 0.015'' Nom.
      • Overall Cable Diameter 0.116'' Nom.
      • Approximate Cable Weight 11 Lbs/1M' Nom.
      • Flame Rating NFPA 262 Flame Test
      • Temperature Rating -10°C To +60°C
      • Operating Voltage 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz 54 pf/ft Nom.
      • Capacitance Between Conductors to Shield @ 1 KHz 97 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C 17.5 Ohms/1M' Nom.
      • Insulation Colors Black, Red
      • Jacket Color Gray
      • RoHS Compliant --
      • Max. Recommended Pull Tension 28 lbs
      • Min. Bend Radius (Install) 1.25"
