West Penn 25819 Plenum RG59 HD/SDI Digital Coaxial Cable 500 Ft Ivory

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn 25819 Plenum RG59 HD/SDI Digital Coaxial Cable 500 Ft Ivory

    Manufacturer: West Penn Wire Corp

    Item #: WP-25819-500-IY   •   MFG #: WP-25819-500-IY








    Lengths:





    Share!

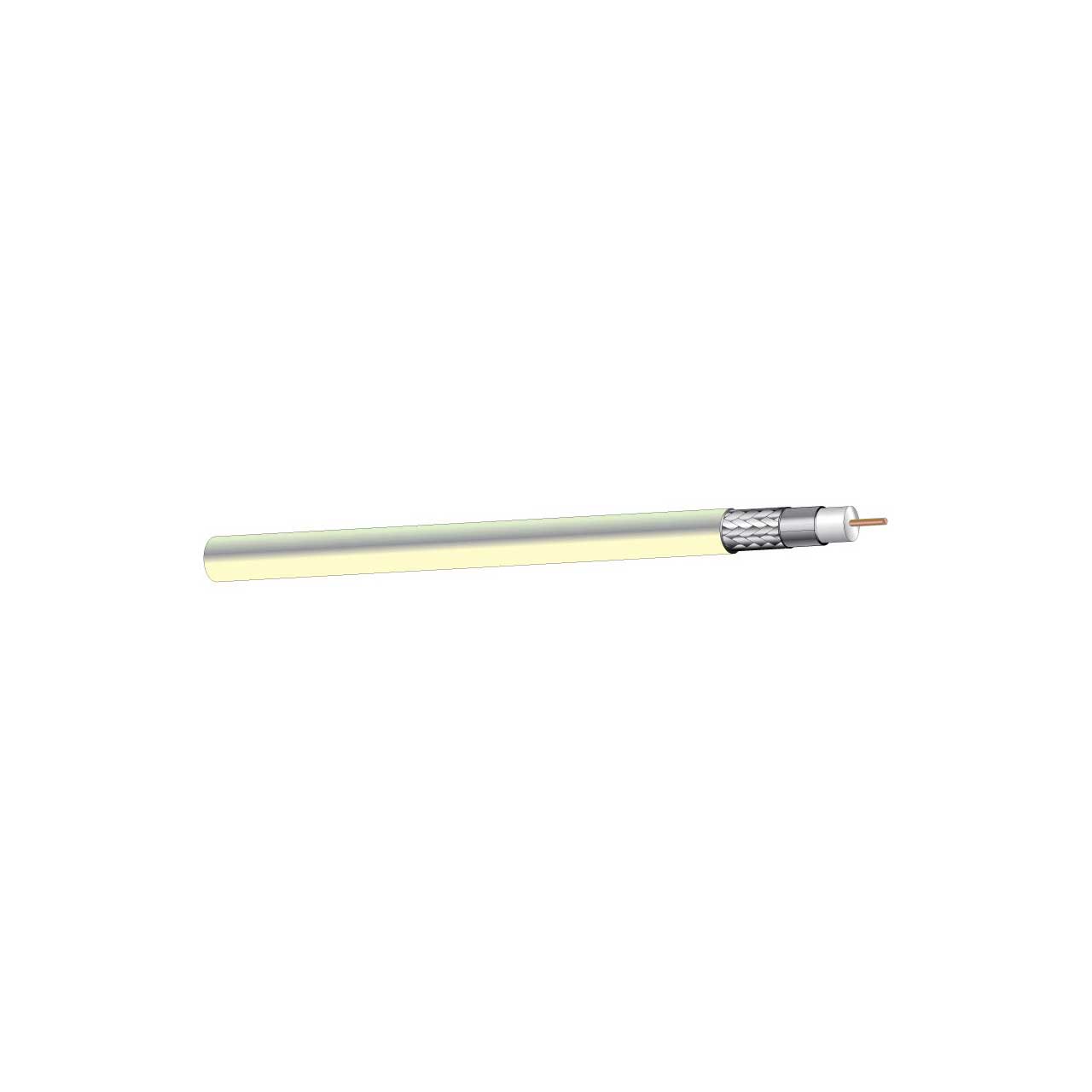

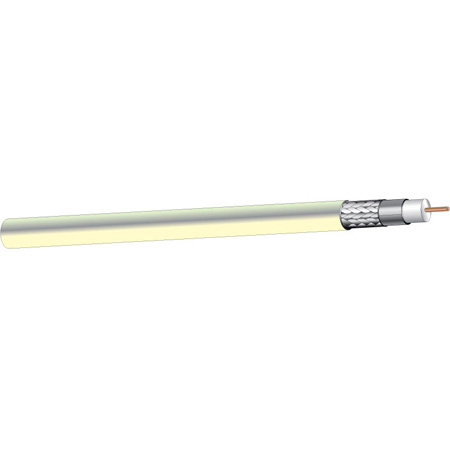

    An overall Flex Plenum Jacket RG59/U - 1 Conductor 20AWG Solid, 100% Aluminum Foil + 95% Tinned copper braid.
    NEC RATING: CMP
    APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed


    • Specifications

      • Conductor: 20 AWG Bare Copper
      • Stranding: Solid
      • Insulation Material: Foam FEP - Teflon
      • Insulation Thickness: 0.138" Nom.
      • Number of Conductors: 1 Center Conductor
      • Shield: 100% Al. Foil + 95% Tinned Copper Braid
      • Jacket Material: Flex Plenum PVC
      • Overall Cable Diameter: 0.207'' Nom.
      • Approximate Cable Weight: 18 Lbs/1M' Nom.
      • Flame Rating UL NFPA62
      • Max. Capacitance Between Conductors @ 1 KHz: 16.2 pf/ft Nom.
      • Velocity of Propagation: 82%
      • Nom. Impedance: 75 ohms Nom.
      • DC Resistance per Conductor @ 20deg C: 10.1 Ohms/1M' Nom.

    • Applications

      • Pro-Video
      • SDI
      • Digital Audio
      • CCTV and CATV
