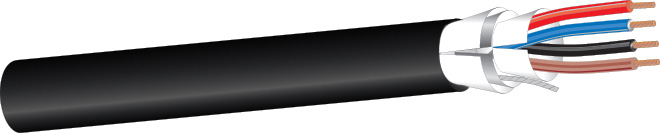

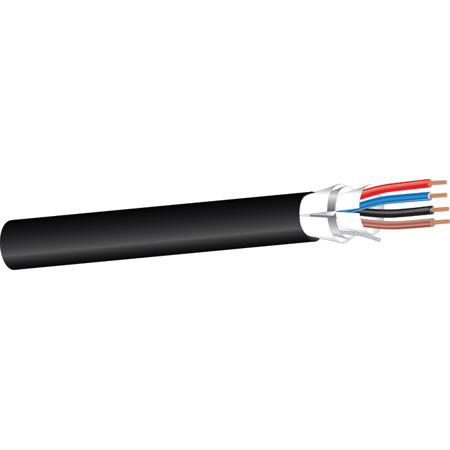

West Penn AQ3245 4 Cond. 16 AWG Aquaseal Fire-Alarm Cable - 500 Ft. Black

ITEM #: WP-AQ3245-500BK MFG #: AQ3245BK0500

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WP-AQ3245-500BK

AQ3245BK0500 - Overview

16/4 Stranded bare copper conductors, overall shield with Aquaseal tape and overall jacket.

APPLICATION: Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Low voltage industrial process control circuits, Power-Limited circuits, Power-Limited fire alarm circuits, Power-Limited tray cable PLTC)

  • Specifications:

    • Construction Parameters:
    • Conductor 16 AWG Bare Copper
    • Stranding 7x24
    • Insulation Material PVC with Nylon
    • Insulation Thickness PVC 0.015'' Nom.
    • Nylon .005" Nom.
    • Number of Conductors 4
    • Shield 100% Aluminum Polyester Foil
    • Drain Stranded Tinned Copper
    • Water-Blocking Tape 2 Ply water swellable tape
    • Jacket Material Sunlight/ Moisture Resistant PVC
    • Jacket Thickness 0.050'' Nom.
    • Overall Cable Diameter 0.415'' Nom.
    • Approximate Cable Weight 97 Lbs/1M' Nom.
    • Flame Rating UL 1685 Vertical Tray

    • Electrical & Environmental Properties:
    • Temperature Rating -20deg C to 90deg C
    • Operating Voltage 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz 37 pf/ft Nom.
    • Capacitance Between Conductors to Shield @ 1 KHz 67 pf/ft Nom.
    • DC Resistance per Conductor @ 20deg C 4.2 Ohms/1M' Nom.
    • Insulation Colors Black, Red, Brown, Blue
    • Jacket Color Black
    • RoHS Compliant --
    • TIA455-82B Water Infiltration Test Compliant Yes
    • UL 444 & 13 Compliant Yes

      Mechanical Properties:
    • Max. Recommended Pull Tension 123 lbs.
    • Min. Bend Radius (Install) 4.1"

  • GTIN:

    0612825007029
