West Penn AQC292 20/2 Aquaseal Communication Cable (500 ft.)

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    West Penn AQC292 20/2 Aquaseal Communication Cable (500 ft.)

    Manufacturer: West Penn Wire Corp

    Item #: WP-AQC292-500   •   MFG #: WP-AQC292-500








    Lengths:





    Share!

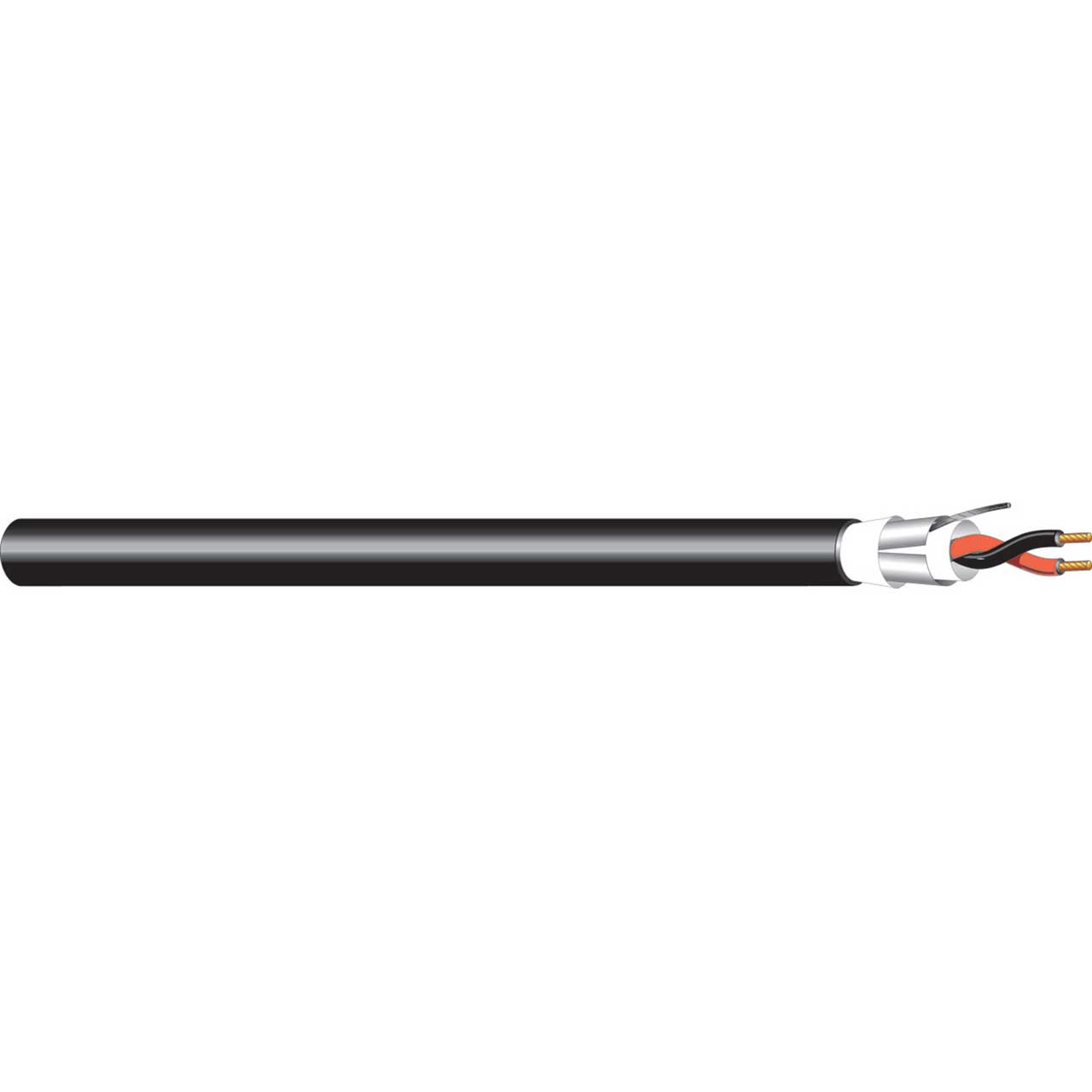

    20/2 Stranded bare copper conductors, shielded with an Aquaseal tape and overall jacket.


    • Features

      • NEC RATING: CM or CL3, NEC Article 800 and 725
      • APPROVALS: (UL) C(UL) Listed, (ETL)us Listed
      • APPLICATION: Materials suitable for outdoor use, and indoor trays, allows a variety of uses for (Intercom, Security, Sound, Audio, Background music)
      • Conductor 20 AWG Bare Copper
      • Stranding 7x28
      • Insulation Material PVC
      • Insulation Thickness 0.010'' Nom.
      • Number of Conductors 2 (1 Pair)
      • Shield 100% Aluminum Polyester Foil
      • Drain Stranded Tinned Copper
      • Water-Blocking Tape 2 ply water swellable tape
      • Jacket Material Sunlight/Moisture Resistance PVC
      • Jacket Thickness 0.025'' Nom.
      • Overall Cable Diameter 0.220'' Nom.
      • Approximate Cable Weight 25 Lbs/1M' Nom.
      • Flame Rating UL 1685 Vertical Tray
      • Temperature Rating -20deg C to 60deg C
      • Operating Voltage 300 V RMS
      • Max.Capacitance Between Conductors @ 1 KHz 60 pf/ft Nom.
      • Capacitance Between Conductors to Shield @ 1 KHz 108 pf/ft Nom.
      • DC Resistance per Conductor @ 20deg C 10.5 Ohms/1M' Nom.
      • Insulation Colors Black, Red
      • Jacket Color Gray
      • RoHS Compliant --
      • TIA455-82B Water Infiltration Test Compliant Yes
      • UL 444 & 13 Compliant Yes
