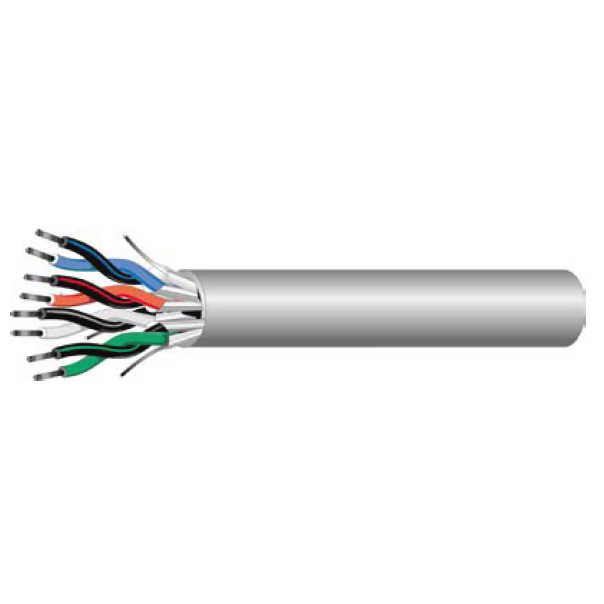

West Penn D438 22 AWG/27 Pair Stranded and Shielded 1000Ft. - Gray

ITEM #: WP-D438-1000GY MFG #: D438GY1000

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WP-D438-1000GY

D438GY1000 - Overview

22 AWG.- 27 PAIR Stranded tinned copper conductors, individually shielded with an overall jacket.

APPLICATION: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.

  • Specifications:

    • Construction Parameters:
    • Conductor: 22 AWG Tinned Copper
    • Stranding: 7x30
    • Insulation Material: Polyolefin
    • Insulation Thickness: 0.006'' Nom.
    • Number of Conductors: 54 (27 Pair)
    • Shield: Each Pair 100% Aluminum Foil
    • Drain: Stranded Tinned Copper
    • Jacket Material: PVC
    • Jacket Thickness: 0.047'' Nom.
    • Overall Cable Diameter: 0.678'' Nom.
    • Approximate Cable Weight: 180 Lbs/1M' Nom.
    • Flame Rating: UL 1685

    • Electrical & Environmental Properties:
    • Temperature Rating: -20°C To +60°C
    • Operating Voltage: 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz: 34 pf/ft Nom.
    • Capacitance Between Conductors to Shield @ 1 KHz: 67 pf/ft Nom.
    • DC Resistance per Conductor @ 20deg C: 17 Ohms/1M' Nom.


  • GTIN:

    0612825028741
