Theatrixx XVV-HDMI2SDI-TRUE1 xVision Video Converter HDMI to SDI - Powercon True1 In/Thru

ITEM #: XVV-HDMI2SDITRUE MFG #: XVV-HDMI2SDITRUE

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the XVV-HDMI2SDITRUE

XVV-HDMI2SDITRUE - Overview

Professional equipment in mission-critical applications is all about reliability and confidence. Introducing the world's first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role. Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. They wanted to change that, so they designed the xVision Video Converters.

  • Features:

    • Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience AC outlet to power nearby projector, TV, laptop, small video projector, Power bar to power both the converter and device not required anymore.

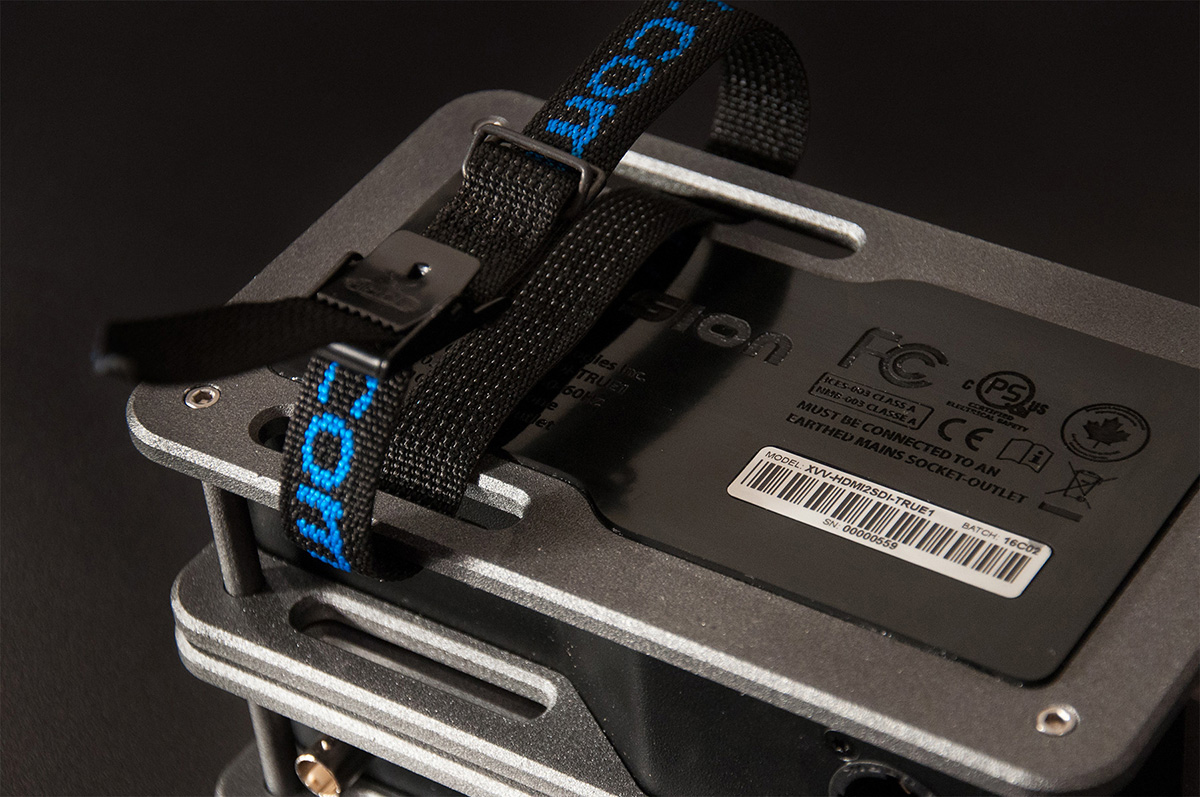

    • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.

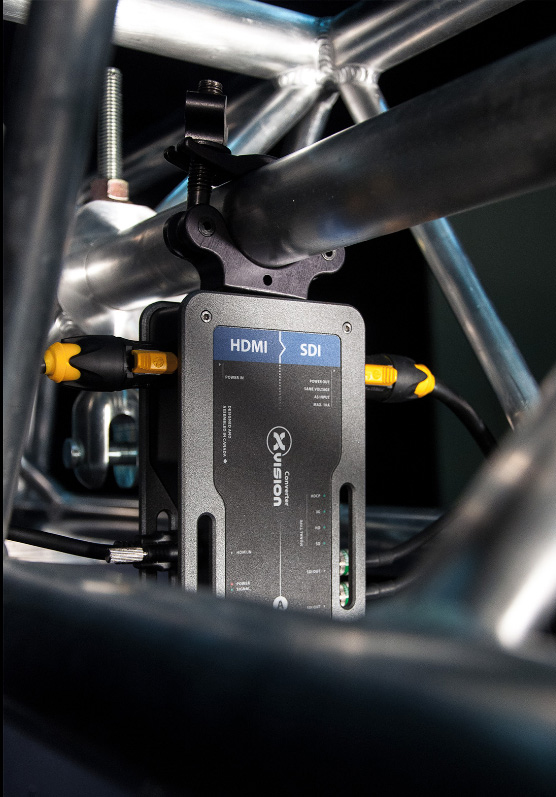

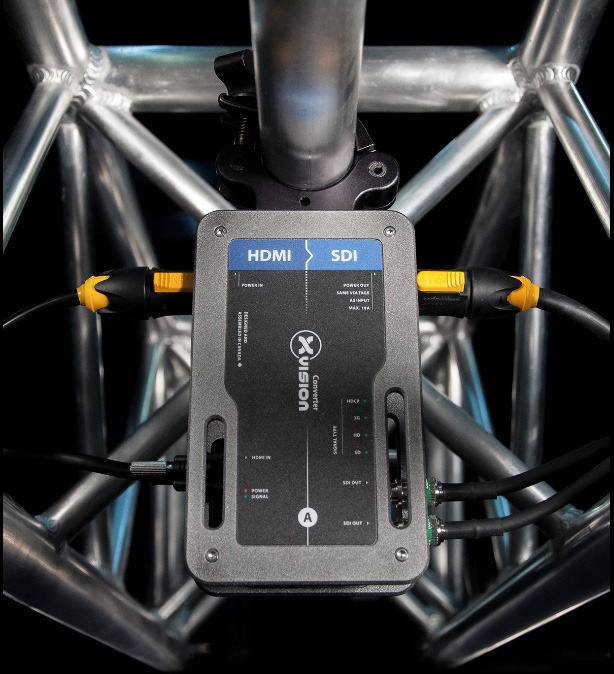

    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • HDMI input tested and compatible with Apple computers and iPad.
    • Easy on-the-field identification with unique color and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Integrated SDI splitter: Dual SDI outputs.
    • Proudly designed and assembled in Canada.

  • Specifications:

    • Connections
    • Video Input: HDMI 1.2 type A with lock system
    • Video Output: 2 x 3G/HD/SD SDI BNC
      Supported Signals
    • 3G Format Support: 1080p50, 1080p59.94, 1080p60.
    • HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30
    • SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit.
    • SDI Color Space: YUV and RGB
    • SDI Auto Switching: Automatically detects incoming signal format.
      Physical Specifications
    • Height: 1.97in
    • Depth: 7.08in
    • Width: 4.21in
    • Weight: 2.2lbs
    • Relative Humidity: 0% to 90% non-condensing
      Power Requirements
    • Power Supply: Built-in power supply, PowerCON True1 input, PowerCON True1 output
    • Power Consumption: 25W
    • Operational Voltage Range: 90-250V with True1 Connectors
    • Courtesy Outlet: Max 10A, same voltage as input

  • Item Includes:

    • xVision converter
    • HDMI to SDI (True1)
    • HDMI male with locking
    • system to DVI male (1m)
