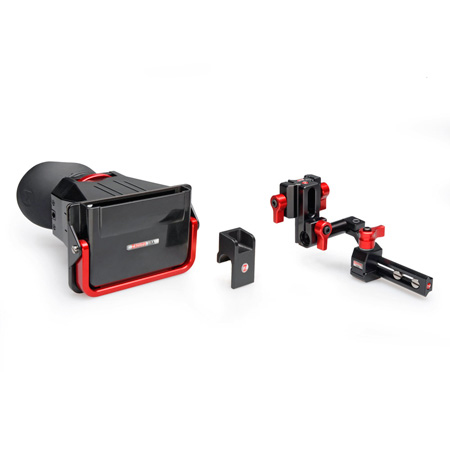

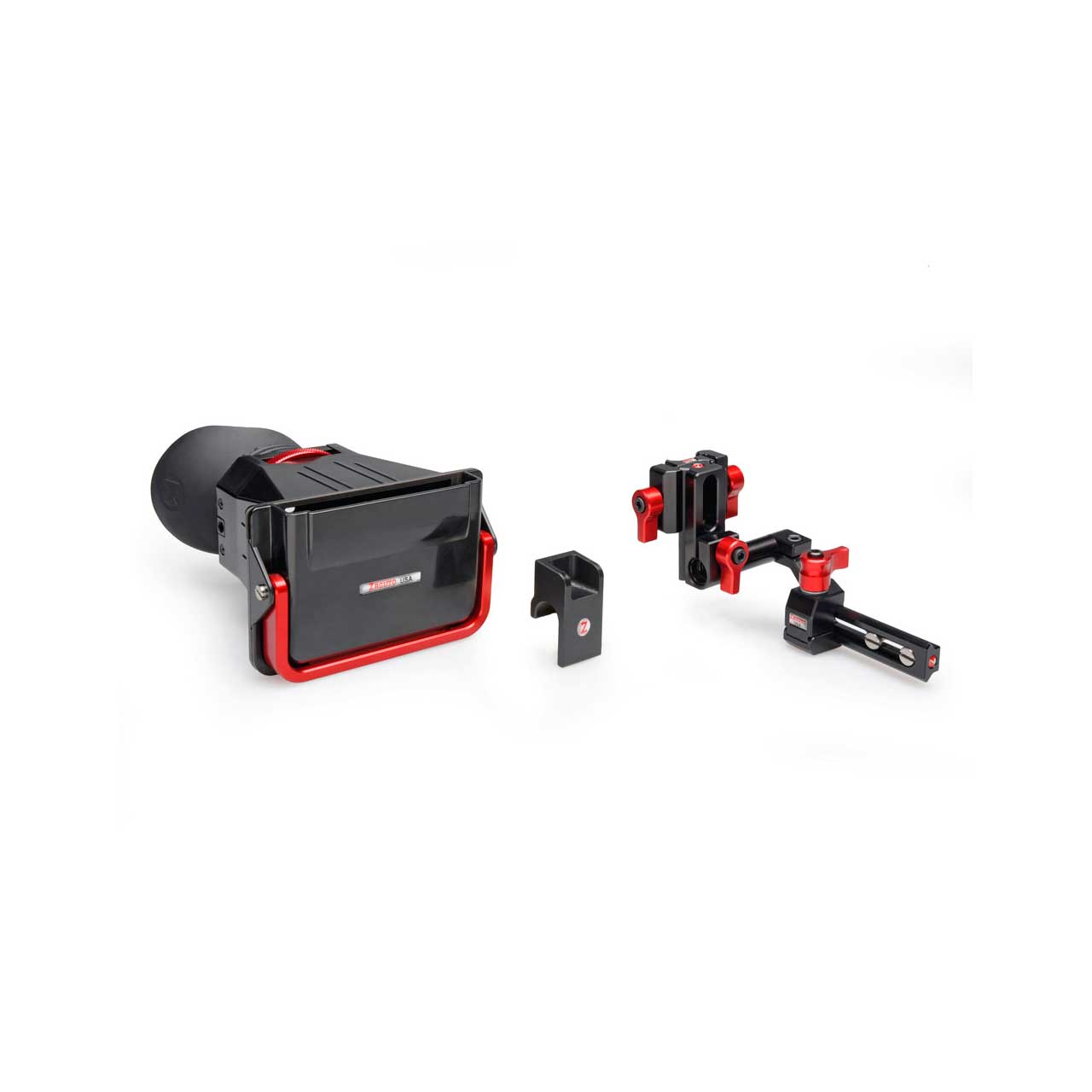

The C300/500 Z-Finder is an optical viewfinder, specifically designed to attach to the Canon C300 and C500 cinema camera's LCD screen. This Z-Finder will magnify the LCD screen by 1.8x and has a diopter wheel for specific focus tuning. It cuts out any extraneous light and offers an initial point of stability by pressing your eye against the large eyecup. The Z-Finder includes 4 interchangeable anti-fog glass diopters, 0, +1, +2, and +3 so you can correct it to your vision right out of the box and then fine tune it with our red adjust wheel for perfect clarity. -1 and +4 diopters are available for purchase separately. An aluminum sun mask is built in to the Z-Finder to protect your LCD screen from sunlight.
The C300/C500 Z-Finder is attaches by using a foam padded sleeve that slides over the LCD screen of either the C300 or C500. The sleeve is secured into place with a bar clamp. It also includes a unique monitor lock clip to keep the LCD screen from moving forward when the Z-Finder is pressed against your eye.

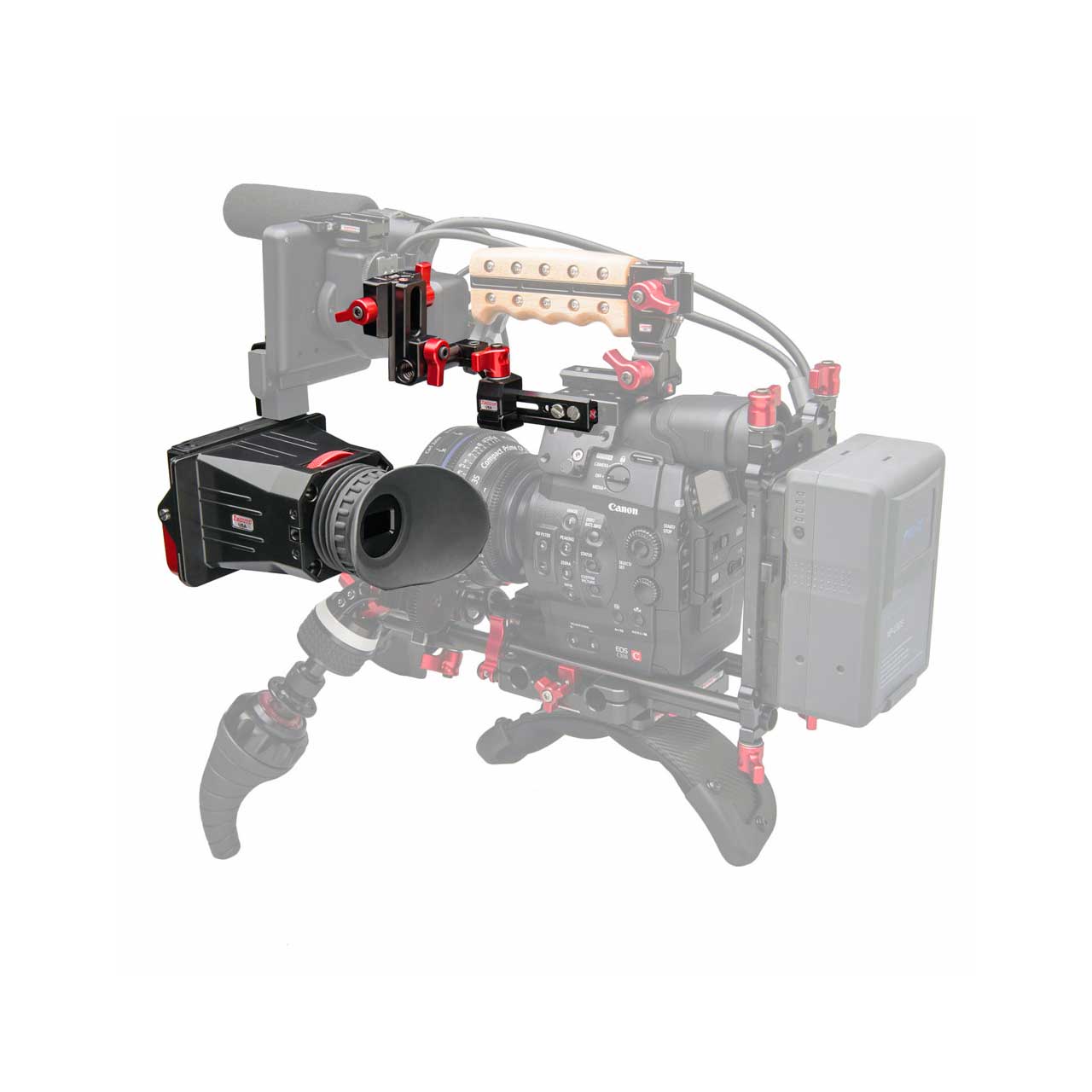

The Mounting Kit for the C300/C500 Z-Finder allows you to position the LCD screen forward and off the the side in a position to better enable shoulder mounted shooting. The Mounting Kit attaches to a Z-Rail mount and will allow forward/backward, side to side, and tilt adjustment of the Z-Finder. This mounting kit works with the C300/C500 Helmet and handle as a unified system. Either the C300/C500 Helmet Tapped Handle Kit or the C300/C500 Helmet Coldshoe Handle Kit is required to use this kit.
When moving the LCD this far forward, you may need to get the Canon Extension cable - sold by Canon.
The C300/C500 Z-Finder with Mounting Kit is only compatible with the Canon C300 and C500 cameras. It is not compatible with any other camera or set up.
