Zigen ZIG-CX-100 100 Meter HDMI Over Single Coax Extender - Tx/Rx Set
  • Zigen ZIG-CX-100 100 Meter HDMI Over Single Coax Extender - Tx/Rx Set
  • Zigen ZIG-CX-100 100 Meter HDMI Over Single Coax Extender - Tx/Rx Set

Questions? Ask a Markertek Expert:
800-522-2025 Email

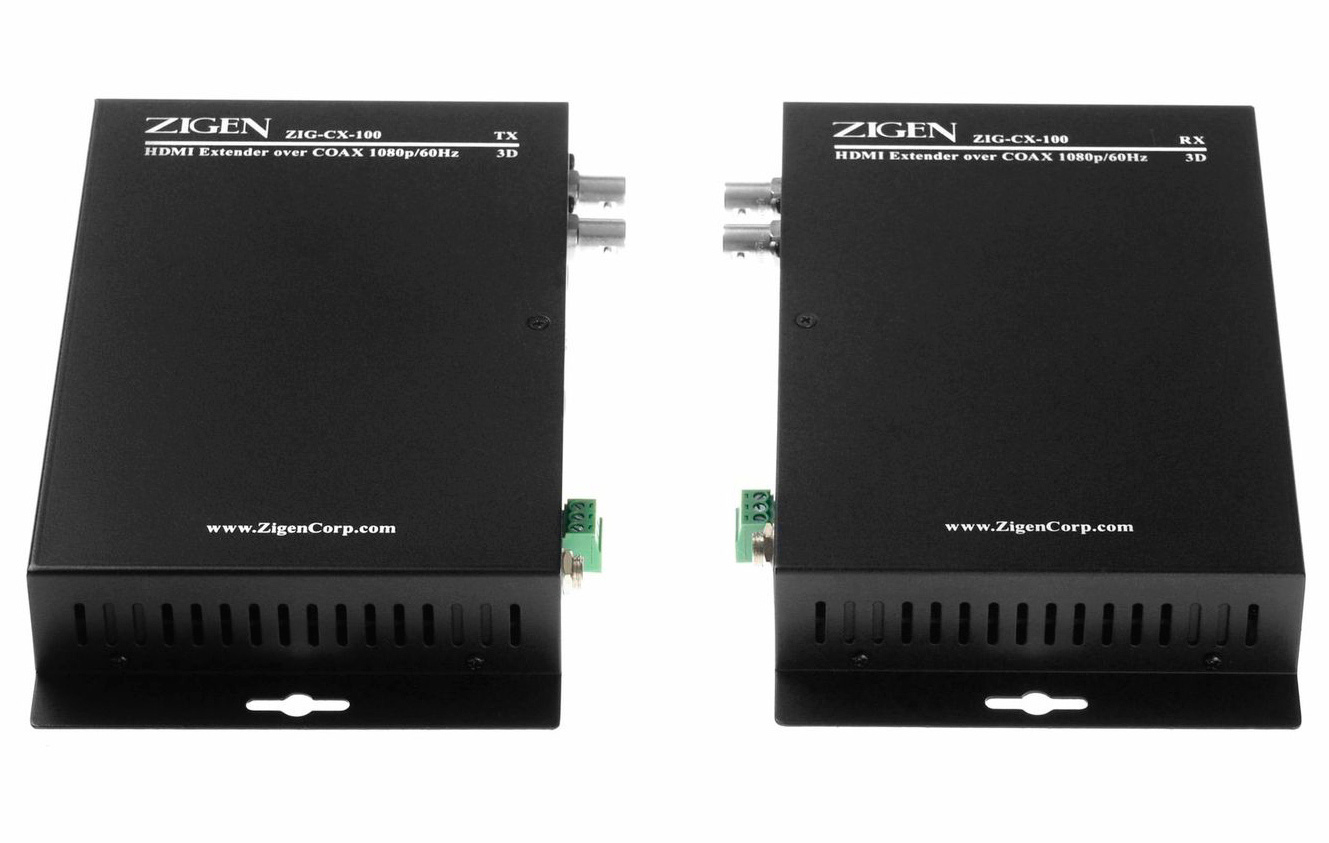

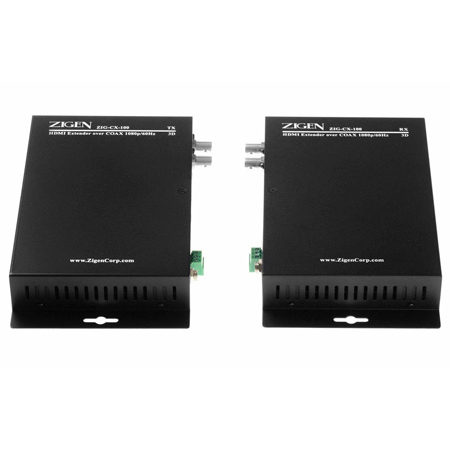

Zigen ZIG-CX-100 100 Meter HDMI Over Single Coax Extender - Tx/Rx Set

Manufacturer: Zigen Corp

Item #: ZIG-CX-100   •   MFG #: ZIG-CX-100




Share!





The ZIG-CX-100 is a transmitter/receiver extender kit for long distance transmission of HDMI video and embedded audio plus bi-directional control signals over a single Coaxial cable. The ZIG-CX-100 can be used as a point-to-point solution or integrated with Matrix switching equipment to extend inputs or outputs to remote locations. The transmitter and receiver sets support simultaneous transmission of bi-directional RS-232 and IR signals from a control system, providing remote control to source equipment or displays.

ZIG-CX-100 is Compliant with HDMI 1.3C, 3D, HDCP, DVI – D standards.


  • Specifications

    • Input Video Signal 0.5-1.0 volts p-p
    • Input DDC Signal 5 volts p-p (TTL)
    • Supported Video Format 640x480P to 1920x1080P
    • Output Video HDMI1.4+HDCP
    • Support 5.1/7.1/stereo audio (Including PCM and non PCM, HD ADUIO, etc)
    • Extend HDMI signal by using a single RG-6Quad COAX cable.
    • 1080p/24Hz with 3D up to 330-ft / 100-meters or 1080p/60Hz up to 330-ft / 100-meters
    • Power Supply 5V/3A DC
    • Power Consumption 7.5Watts (transmitter) 8Watts (receiver)
    • Operating Temperature Range -5 to +35°C (-41 to +95 °F)
    • Operating Humidity Range 5 to 90 % RH (no condensation)

  • Item Includes

    • Main unit ZIG-CX-100 Rx.
    • Main unit ZIG-CX-100Tx.
    • Operating instructions.
    • 2x 5V 3A DC power supply.
    • 1xIR TX unit. (IR emitter cable)
    • 1xIR RX unit. (IR receiver cable)
