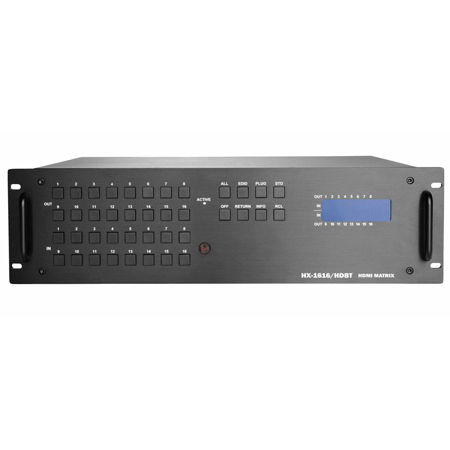

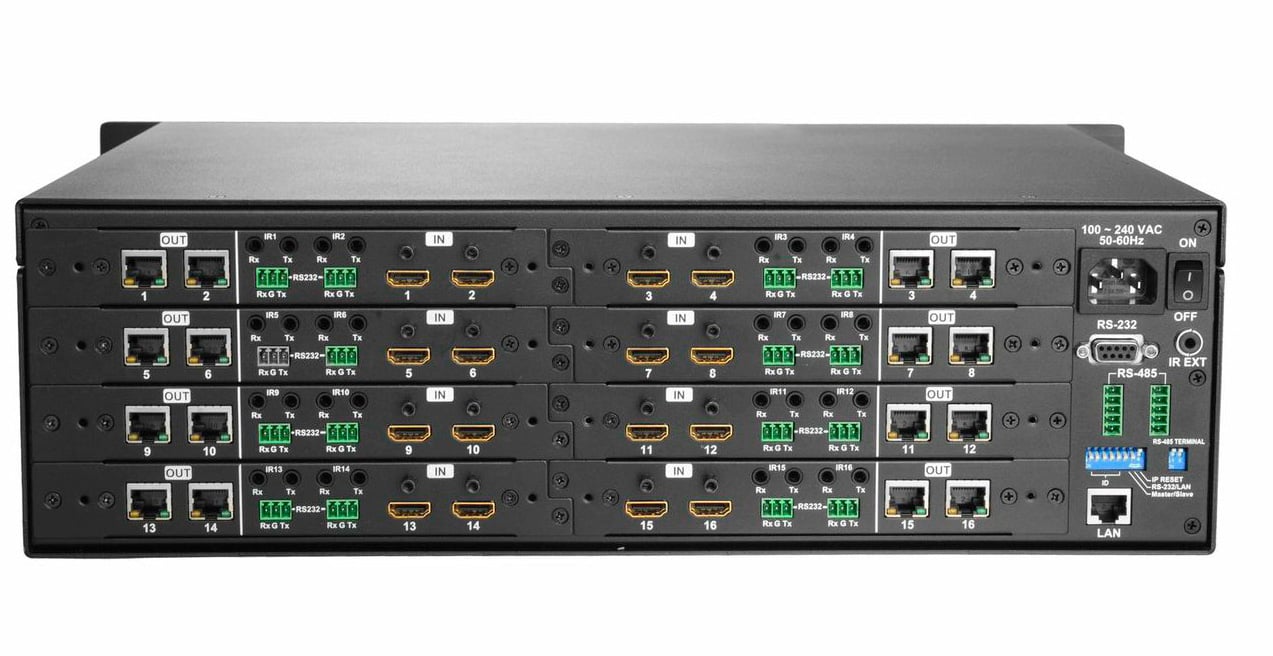

Zigen HX-1616/HDBTCHASSISEMPTY 16X16 HDMI-HDMI or HDBT Modular Matrix Chassis 4K

Manufacturer: Zigen Corp

Item #: ZIG-HX-1616-HDBT   •   MFG #: HX-1616/HDBTCHASSISEMPTY




Our Price:$7,399.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)


Share!





The Zigen UHD 2K/4K modular HDMI to HDBaseT matrix switch is field upgradable from 2x2 to 16x16. Available two port cards (two inputs and two outputs) include 70m and 100m HDBaseT along with HDMI to HDMI cards. Models ZIG-HX-88/HDBT and ZIG-HX-1616/HDBT are currently shipping. Advanced EDID management, IR functions, memory management and internal power supply are just a few of the features that make the new HX series stand out. Control system integration is a breeze with Crestron, AMX, RTI, Control4, Bitwise, and URC drivers available.


  • Specifications

    • ULTRA HD 4K Certified
    • 4K / 2K, 30Hz, 24bpp
    • 4K / 2K, 60Hz, 24bpp with 4:2:0 pixel format
    • Support up to 16 HDMI input/output interfaces
    • Mixed use HDMI cables for input and output connection
    • HDCP Compliant
    • EDID management (Copy from each OUTPUT or generate internal)
    • Centralized control upon 32 series connections via RS-485
    • Memory control up to 8 presets
    • Support computer video up to 1920*1200
    • Support HDTV up to [email protected], 12-bit
    • Support original 3D pass through
    • Support High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master)
    • IR pass-through supports all IN and OUT ports
    • IR pass-through supports all IR frequency band
    • IR pass-through supports duplex transmission between IN and OUT ports
    • IR pass-through switch is based on HDMI switched by controller
    • Support IR remote control
    • Support IR Mini-Controller to select the input channel through Output configuration
    • Support RS-232 control
    • Support RS-485 serial control
    • Support Ethernet control
    • Internal universal power supply
    • 3U rack

  • Item Includes

    • HDMI Matrix Switcher * 1 (HX-44,HX-88 or HX-1616)
    • RS-232 Communication Connected Cable * 1
    • Power Cord * 1
    • IR Receiver Cable * 1
    • LAN Line * 1
    • Female 1x5 Pole Captive Screw Socket * 2
    • Matrix Switcher Remote Controller * 1
    • AAA Battery * 2
    • AV Matrix Software CD * 1
