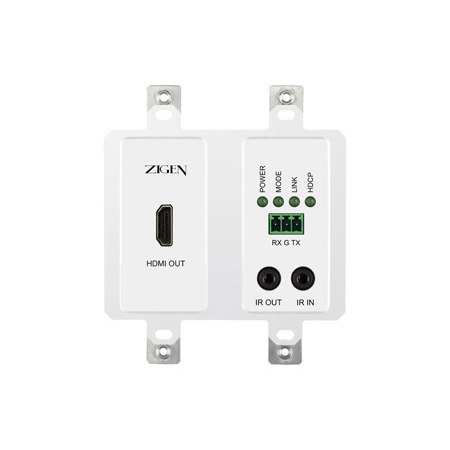

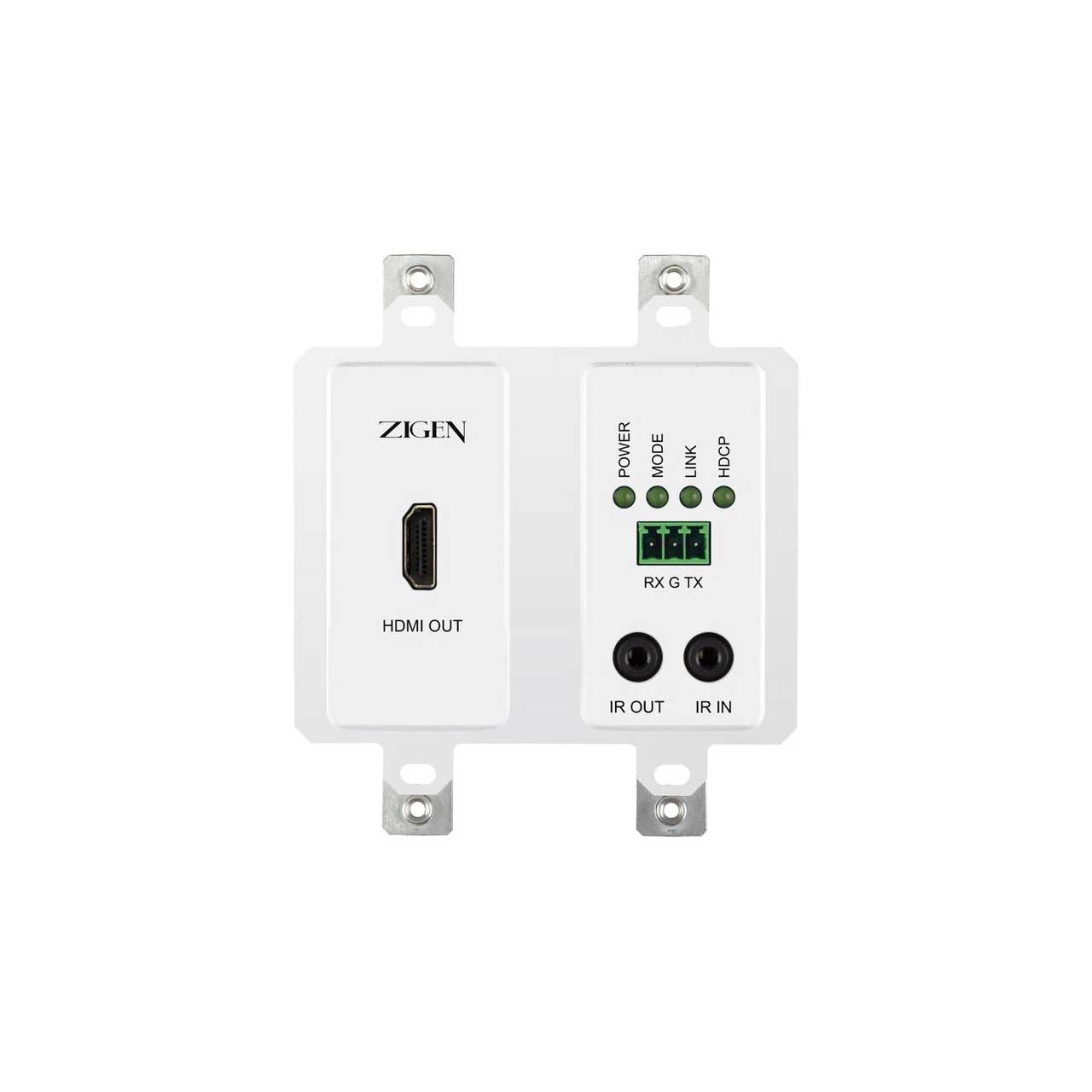

Zigen ZIG-POEWP-RX70 HDBaseT (70M) Wallplate Receiver (POE) with Bi-Directional IR & RS-232

ITEM #: ZIG-POEWP-RX70 MFG #: ZIG-POEWP-RX70

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ZIG-POEWP-RX70

ZIG-POEWP-RX70 - Overview

The Zigen ZIG-POEWP-RX70 HDBaseT receiver perfect for trim out behind a UHD display or projector in commercial and residential environments - standard 2-gang Decora wall plate.
Simply connect up to 70 meters (228') of category cable from the rack to the ZIG-POE-RX70 and you are all set. Additional capabilities include bi-directional RS232 and IR In and Out ports for added control capabilities. Elegant and cost effective - plus POE or optional 5 VDC direct power.

Typical Applications:
Conference rooms, boardrooms, huddle rooms for trimming out display/projector HDMI connection.
Residential trim out
Industrial environments for connection to remote displays
Extending HDMI 4K for 70 meters over single CAT5/6/7

  • Features:

    • HDBaseT technology
    • Supports HDR
    • Extend HDMI signals up to 70 meters/228 feet by using Cat-5e/6/7
    • Supports HDMI 1.2, 1.3, 1.4, 2.0 with 3D
    • HDCP compliant - 1.4 & 2.2
    • Supports 3D pass-through
    • Supports CEC pass-through
    • Supports RS-232 (Bi-direction transfer)
    • Supports all frequency band IR control (Bi-direction transfer)
    • Supports 12V or 5V IR Receiver/Emitter
    • Full HD support: 1080P@60Hz, 3D and 4Kx2K
    • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more
    • Supports all frequency band IR control (Bi-directional transfer)

  • Specifications:

    • Ports

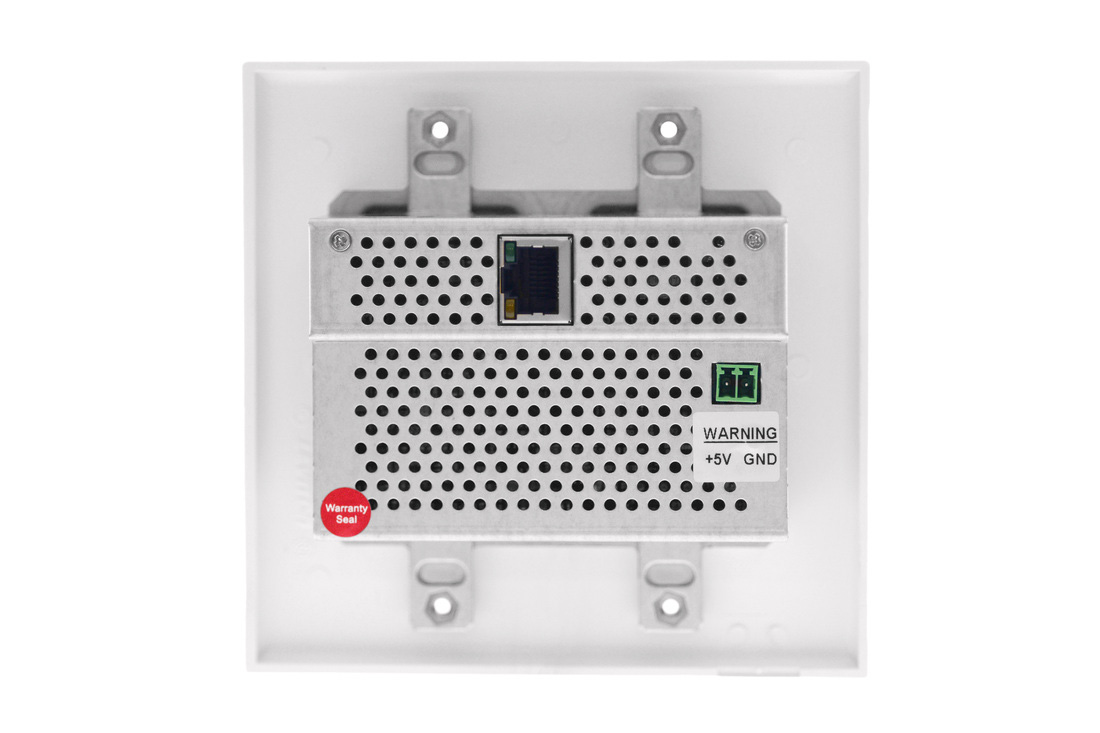

    • HDBaseT - RJ-45 on back
    • HDMI x 1
    • VGA Multi-port w/3.5mm Audio
    • Power - 48V POE - Optional from PS-61 or RXAV

      Distance
    • Up to 328 ft @ 2160P60 4:2:0

      Bandwidth
    • 10.2 Gbps

      Video
    • Up To Ultra HD (2160P60 4:2:0 8-Bit)

      Audio
    • Up to Dolby TrueHD and DTS-HD Master

      Wall Mountable
    • Yes - 2-gang Decora style - black or white

      Power Consumption
    • 10W

      Dimensions
    • 5.9 X 2.9 X .95 inches
    • 150 X 74 X 24 millimeters

      Weight
    • 303 grams/.67 pounds

      Certifications
    • FCC, HDBT, CE, RoHS

      WebOS
    • Programmable via simple WebOS with any browser - issue RS-232, IR or Ethernet commands.

      Works With
    • Zigen "Ecosystem" family of products. A great application would be as transmitter for a PS-61 or a POE-RXAV (as shown below).

  • Item Includes:

    • ZIG-POEWP-RX70

  • Warranty:

    • 3 years
