5601MSC+GP+PTP+3GTG - Overview

The Evertz 5601MSC Master Sync and Clock Generator is a broadcast quality, master sync pulse generator (SPG) and a master clock. It provides all of the synchronizing signals needed in a 21st century TV station or post production facility at the same time as solving the problem of locking the in-house master clock system to the master video sync pulse generator.

A high stability, temperature controlled oscillator, provides the 5601MSC with better than 1.0x10-8 (or 0.01ppm) frequency reference. The free running drift of this 10MHz reference will be less than 0.1Hz (which amounts to less than one millisecond time drift per day). This guarantees that any frequency drift, with time and temperature, will be within the tolerances expected from the best SPGs or master clocks available in the industry. The 5601MSC may also be referenced to an external 5 MHz or 10 MHz master oscillator if higher stability is required. Both the SPG and the Master Clock section of the 5601MSC may be referenced to high stability time and frequency standards present in the Global Position System (GPS) by adding the GPS option (+GP).

The SPG section of the 5601MSC provides six timeable reference outputs. These six BNC outputs may be confi gured to provide independently timed color black (black burst) outputs or independently timed HDTV tri-level sync outputs. Each color black output can optionally carry vertical interval time code (VITC) on a user specifi ed set of lines. Additionally, each output can provide 10MHz, 5MHz, PAL Subcarrier, NTSC Subcarrier, 1 PPS, 1/1.001 PPS, 6/1.001 PPS, PAL color frame pulse and 48kHz wordclock.

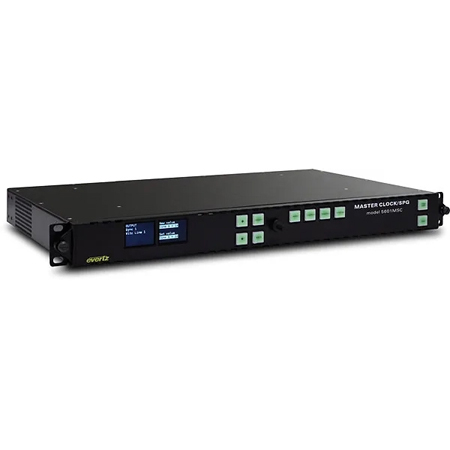

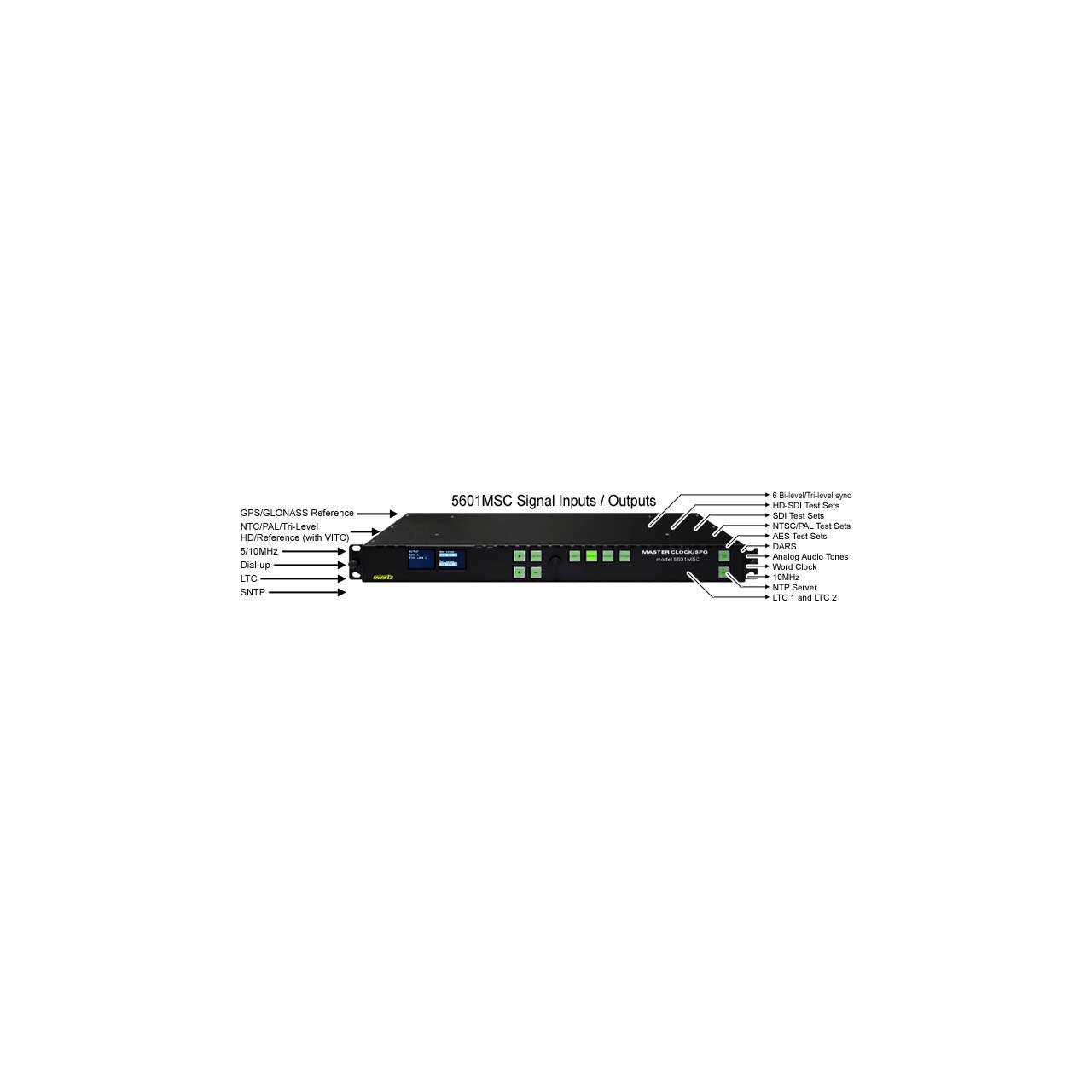

Input / Output Summary
On the 5601MSC, a wordclock output is a standard feature. It provides a 48kHz wordclock or may be configured as an additional sync output. Also, the 10MHz output provides 10MHz or 5MHz, or may be configured as an additional sync output.

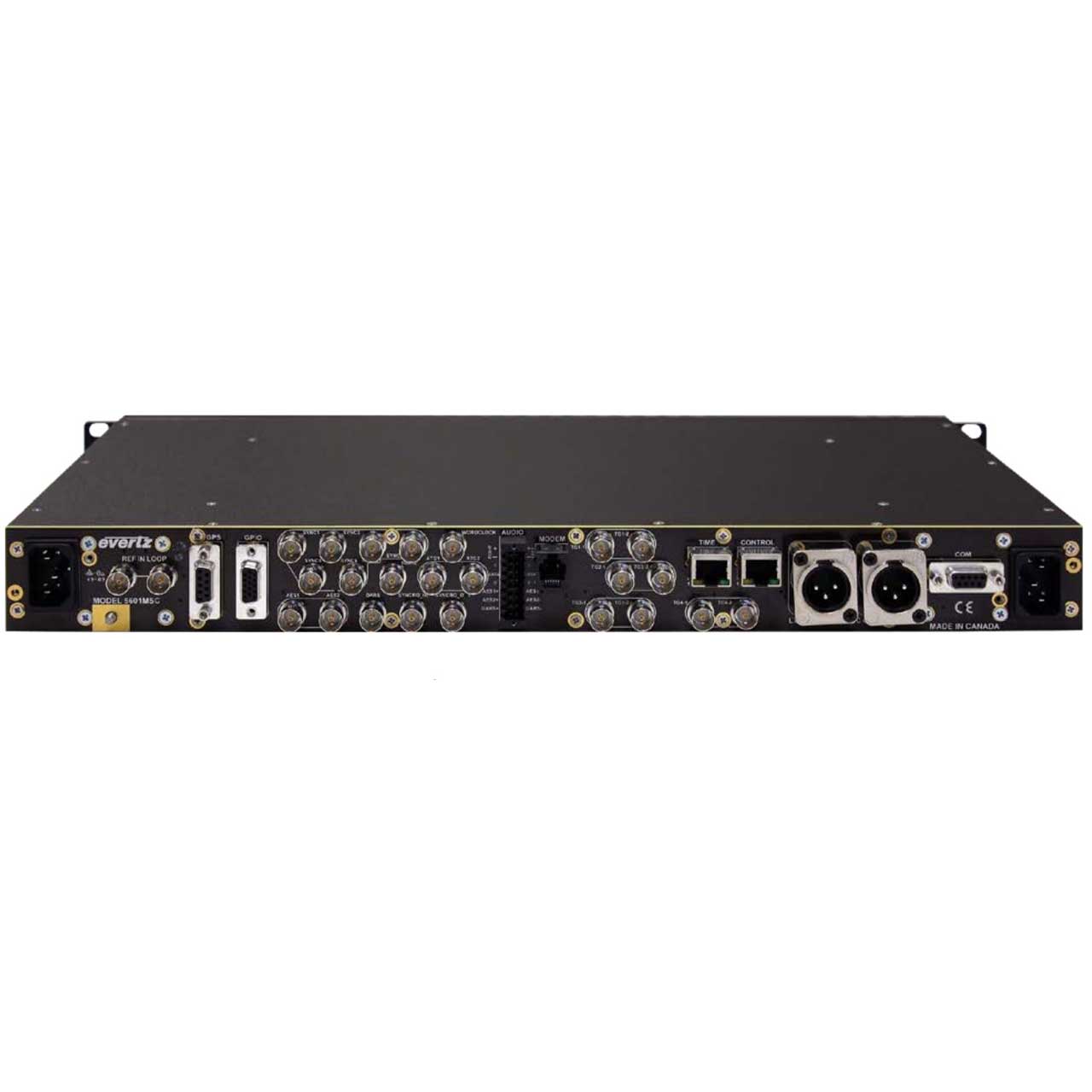

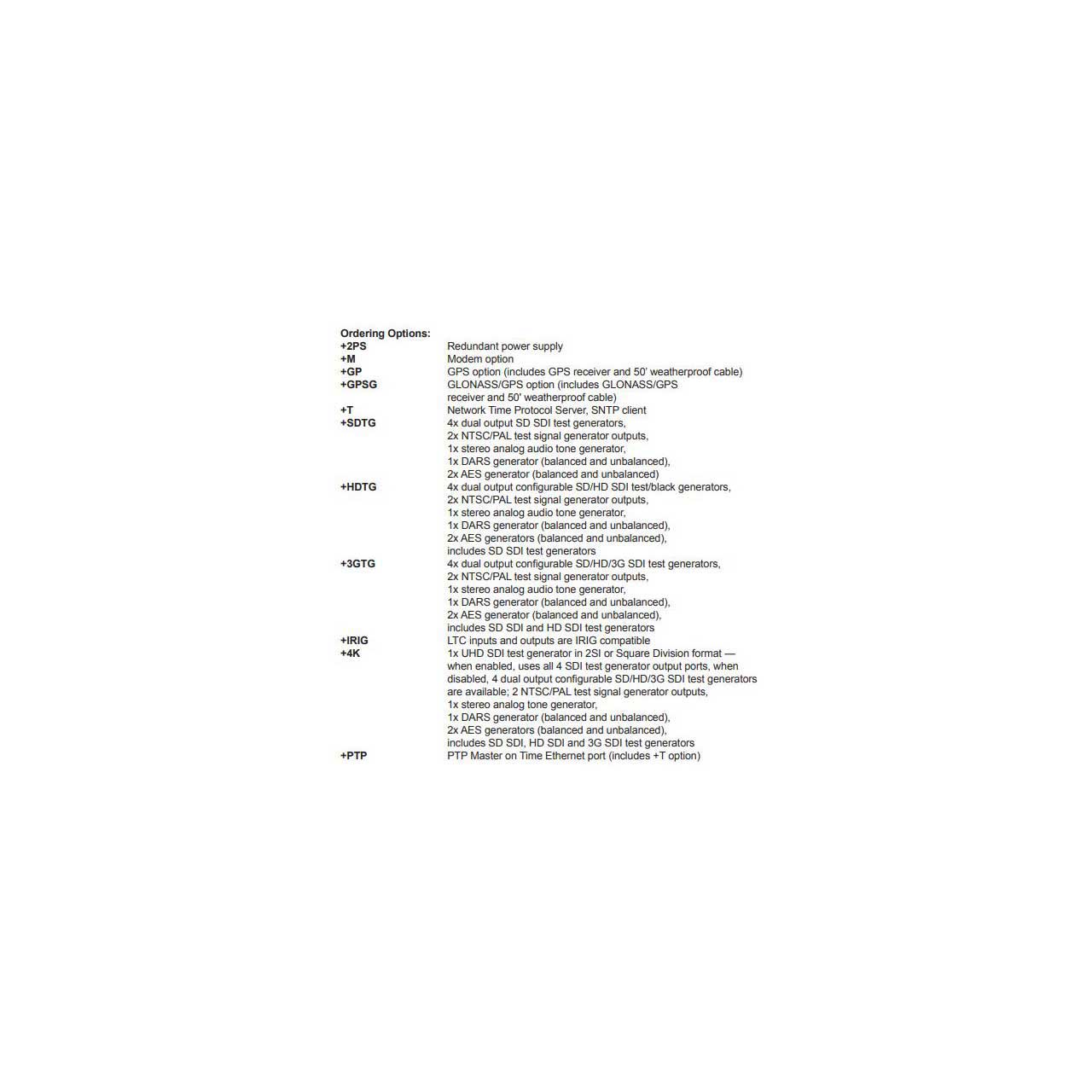

There are four test signal generator options available. The 3GTG option includes all features of the HDTG option and adds support for dual-link and 3G formats. Each test generator has two outputs and a large suite of test signals available. When the 3GTG option is ordered, 3D test signals are also available. In the 4K/UHDTV mode the four test generators are combined into one quad-link test generator.

The 5601MSC offers an optional redundant power supply. The redundant power supplies and fans are hot-swappable.

  • Features:

    • Six independently timeable programmable reference outputs
    • Bi-level or Tri-level outputs selectable
    • Two independent LTC Time Code outputs (optional IRIG-B)
    • LTC Input (optional IRIG-B)
    • Reference loop input for video and 10MHz/5MHz references
    • GPS option for frequency and time reference (GLONASS option)
    • SNTP option for time reference
    • 3.58/4.43/5MHz frequency reference output
    • 10MHz frequency reference output
    • Wordclock output
    • Output frequency stability better than 1.0x10-8 (or 0.01ppm)
    • Optional modem for time reference dial-up
    • 2x GPS-based units will be in time and phase even

  • Specifications:

    • Analog Sync Outputs - Output Standards
    • Black Burst: SMPTE ST 170 (NTSC-M), ITU-R BT.1700-1 (PAL-B)
    • Bi-Level: Slo-Pal 625i/48, 625i/47.95, 480p/59.94
    • HD Tri-Level: SMPTE ST 274 (1080p/23.98, 1080p/24, 1080i/50, 1080i/59.94, 1080i/60, 1080p/23.98sF, 1080p/24sF, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60)
    • SMPTE ST 296 (720p/59.94, 720p/60, 720p/50, 720p/30, 720p/24)
    • Pulse Signals: PAL color frame, 1Hz pulse, IR1G DATUM 1/1.001Hz pulse, 6/1.001Hz pulse
    • CW Signals: 5MHz, 10MHz, NTSC-M Subcarrier, PAL-B Subcarrier
    • Wordclock: 48kHz Wordclock
    • Connector: 6 BNC per IEC 61169-8 Annex A
    • Number of Outputs: 6
    • DC Offset: 0V ±0.05V
    • Return Loss: > 40dB up to 10MHz
    • SNR: > 75dB rms
      10MHz Output
    • Output Levels: 1.0V p-p, 2.0V p-p, in 75Ω selectable
    • Connector: BNC per IEC 61169-8 Annex A
    • Output Type: 10MHz sine wave (default),
    • SNR: > 70dB rms
    • SFDR: > 50dBc
      Wordclock Output
    • Output Type: 48kHz Wordclock (default), all other analog sync standards (see above) selectable
    • Connector: BNC per IEC 61169-8 Annex A
    • Risetime: < 25ns
    • Levels: 5V CMOS (1kΩ) or ±1V (75Ω)
      LTC Outputs
    • Standard: SMPTE ST 12-1 or IRIG-B
    • Frame Rate: 24, 25, 30 and 29.97 (drop frame and non-drop frame)
    • Number of Outputs: 2 balanced
    • Connectors: 3-pin male XLR type, Female DB-15
    • Un-powered: Adjustable, 1.0V to 8.0V p-p, balanced
    • Powered: 2V p-p with 11V DC offset to drive downstream 1200 series slave clocks on LTC1 only
    • Output Impedance: 44Ω balanced (un-powered)
    • Rise Time: 40 ±10æs
    • Jitter: < 2æs
      Communications and Control
    • Connector: Female DB-9
    • Level: RS-232
    • Baud Rate: 115200 baud
    • Format: 8 data bits, no parity, 2 stop bits

      Installed Option Specs
      GPS/GLONASS Receiver - +GP option installed
    • Temperature: -40°C to +70°C
    • Humidity: 95% R.H. Condensing at 60°C
    • Dimensions: 3.74" D x 2.85" H
      PTP/IEEE-1588 - +PTP option installed
    • PTP version 2 support on Time Ethernet port
      DARS & AES Test Generator Outputs - 3GTG installed
    • Unbalanced: SMPTE ST 276-1single ended AES (24-bits) (1V p-p into 75Ω)
    • Balanced: AES3 (24-bits) (4V p-p 110Ω terminated)
    • Number of Outputs
    • DARS: 1 unbalanced, 1 balanced
    • AES Test Gen: 2 unbalanced, 2 balanced
    • Unbalanced: BNC per IEC 61169-8 Annex A
    • Balanced: Removable Terminal Strip
    • Sampling Rate: 48kHz
    • Unbalanced: 75Ω unbalanced
    • Balanced: 110Ω balanced
    • AES Tones: Menu selectable

      Ethernet
    • Network Type: Fast Ethernet 100 Base-TX IEEE 802.3u standard for 100MB/s baseband CSMA/CD local area network
    • Ethernet 10 Base-T IEEE 802.3 standard for 10MB/s baseband CSMA/CD local area network
    • Connector: RJ-45
    • Function: VistaLINK PRO control
    • NTP port with +T option installed

      General Purpose Inputs and Output
    • Number of Inputs: 2
    • Number of Outputs: 2
    • Output Type: Opto-isolated, active closure to GND, 20kΩ pull-ups to +5V
    • Input Type: Opto-isolated, senses closure to GND, pull-ups to +5V
    • Connector: 4 pins + 2 ground pins on DB-15 female

      Physical
    • Dimensions: 19" W x 1.75" H x 11.5" D
    • Weight: 8lbs (3.5kg)

      Electrical
    • Voltage: Auto ranging 100 to 240V AC, 50/60Hz
    • ConfiGuration: Optional redundant supply available
    • Power: 90 watts max
    • Safety: TuV Listed
    • Complies with EU safety directives
    • EMI/RFI: Complies with FCC Part 15 Class A, Complies with EU EMC Directive
