    BP892X - Overview

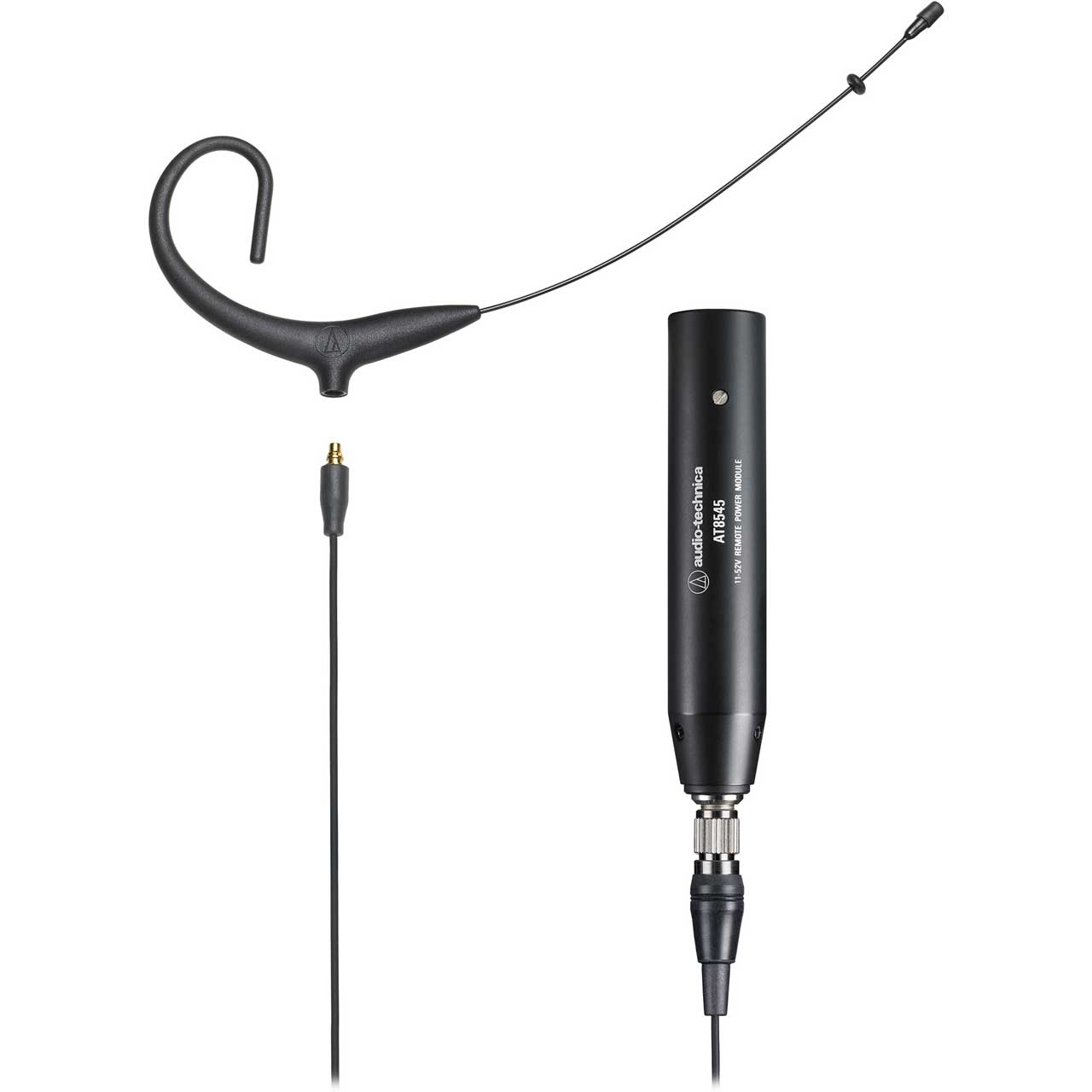

    Delivering clear and accurate sound in an inconspicuous package, Audio-Techinca's ultra-lightweight, high-SPL BP892x MicroSet® hooks securely behind either ear for hours of comfortable use. Its subminiature omnidirectional condenser capsule delivers clear, natural audio with a flat, extended frequency response.

    Like the other two BP89x models, the BP892x includes a detachable, field-replaceable cable with a variety of available terminations for use in wired and wireless applications. The BP892x is a headworn condenser microphone with an omnidirectional polar pattern. It is designed to provide intelligible natural audio for stage and television talent, lecturers and houses of worship. The microphone requires 11V to 52V phantom power for operation (wired only). The microphone includes a 1.4 m (55") detachable, field-replaceable cable. Its free end connects to the provided AT8545 power module via a screw-down 4-pin connector. The connector is also available in a variety of terminations for use with Audio-Technica and other manufacturers' body-pack transmitters. The output of the power module is a 3-pin XLRM-type connector. A recessed switch in the power module permits choice of flat response or low-frequency rolloff (via integral 80 Hz high-pass UniSteep® filter) to help control undesired ambient noise.

    The microphone comes equipped with a power module, a cable clip, a dual-ear mount, two windscreens, two element covers, a moisture guard, a belt clip and a protective carrying case. The microphone is available in black and beige. The BP892x is terminated with a cH-style screw-down 4-pin connector for use with the included AT8545 power module.

    • Features:

      • Subminiature omnidirectional condenser capsule offers extremely intelligible, natural vocal reproduction
      • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
      • Ergonomic under-ear design-the flexible, lightweight, contoured loop hooks
      • behind the ear for an ultra-secure, comfortable fit even for those wearing glasses
      • Detachable, field-replaceable cable with robust connector at the earset and a
      • variety of available output terminations
      • Handles high sound pressure levels with ease
      • Wired version's power module (AT8545) includes a high-pass filter that provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
      • Comes with the AT8464x Dual-Ear Adapter Kit that converts the single-ear
      • MicroSet to a unit that's worn on both ears for maximum stability and comfort
      • Constructed of hypoallergenic materials
    • Specifications:

      • Element: Fixed-change back plate, permanently polarized condenser
      • Polar Pattern: Omnidirectional
      • Frequency Response: 20-20,000 Hz
      • Low Frequency Roll-Off: 80 Hz, 18 dB/octave (wired only)
      • Open Circuit Sensitivity: -43 dB (7.2 mV) re 1V at 1 Pa
      • Impedance: 250 ohms (wired only)
      • Maximum Input Sound Level: 136 dB SPL, 1kHz at 3% T.H.D.
      • Dynamic Range (Typical): 104 dB, 1 kHz at 3% T.H.D. Max SPL (wired only)
      • Signal-To-Noise Ratio: 63 dB, 1 kHz at 1 Pa
      • Phantom Power Requirements: 11-52V DC, 2 mA typical (wired only)
      • Current Consumption: 0.2 mA typical at 5V (wireless only)
      • Voltage Range: 2.5-10V (wireless only)
      • Switch: Flat, roll-off (wired only)
      • Output Connector (Power Module): Integral 3-pin XLRM-type
      • Cable: Detachable 1.4 m (55") long, 1.6 mm (0.06") diameter, 2- or 3-conductor shielded cable (termination dependent)
      • Audio-Technica Case Style: M31

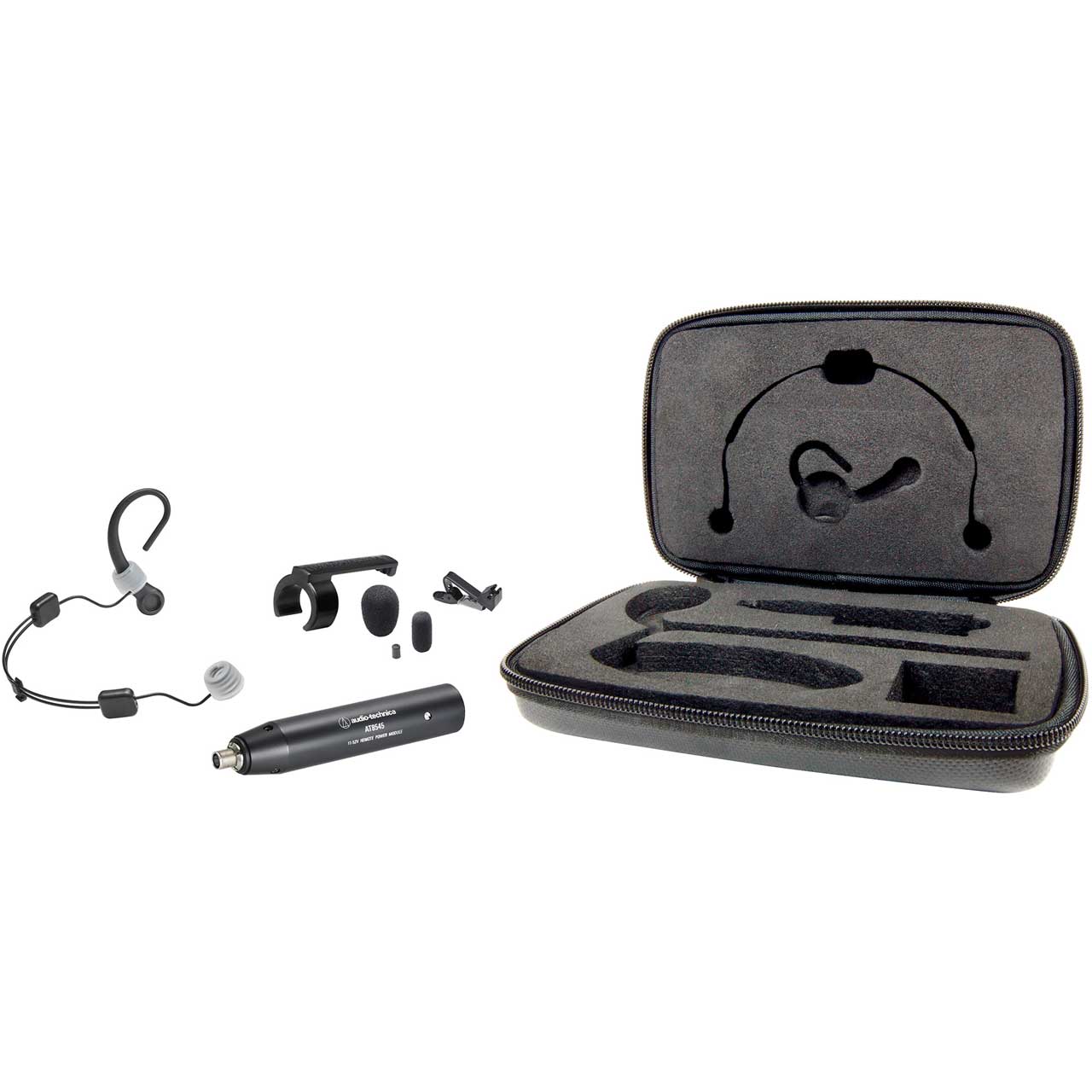

    • Item Includes:

      • AT8545 power module (wired only)
      • AT8464x dual-ear adapter kit
      • AT8440 cable clip
      • AT8157 windscreen
      • AT8171 windscreen
      • 2x AT8156 element covers
      • Moisture guard
      • Belt clip (wired only)
      • Carrying case
