    ES905CL - Overview

    The Engineered Sound®. Contractor-exclusive innovations for every acoustical challenge. And safe haven from RFI.

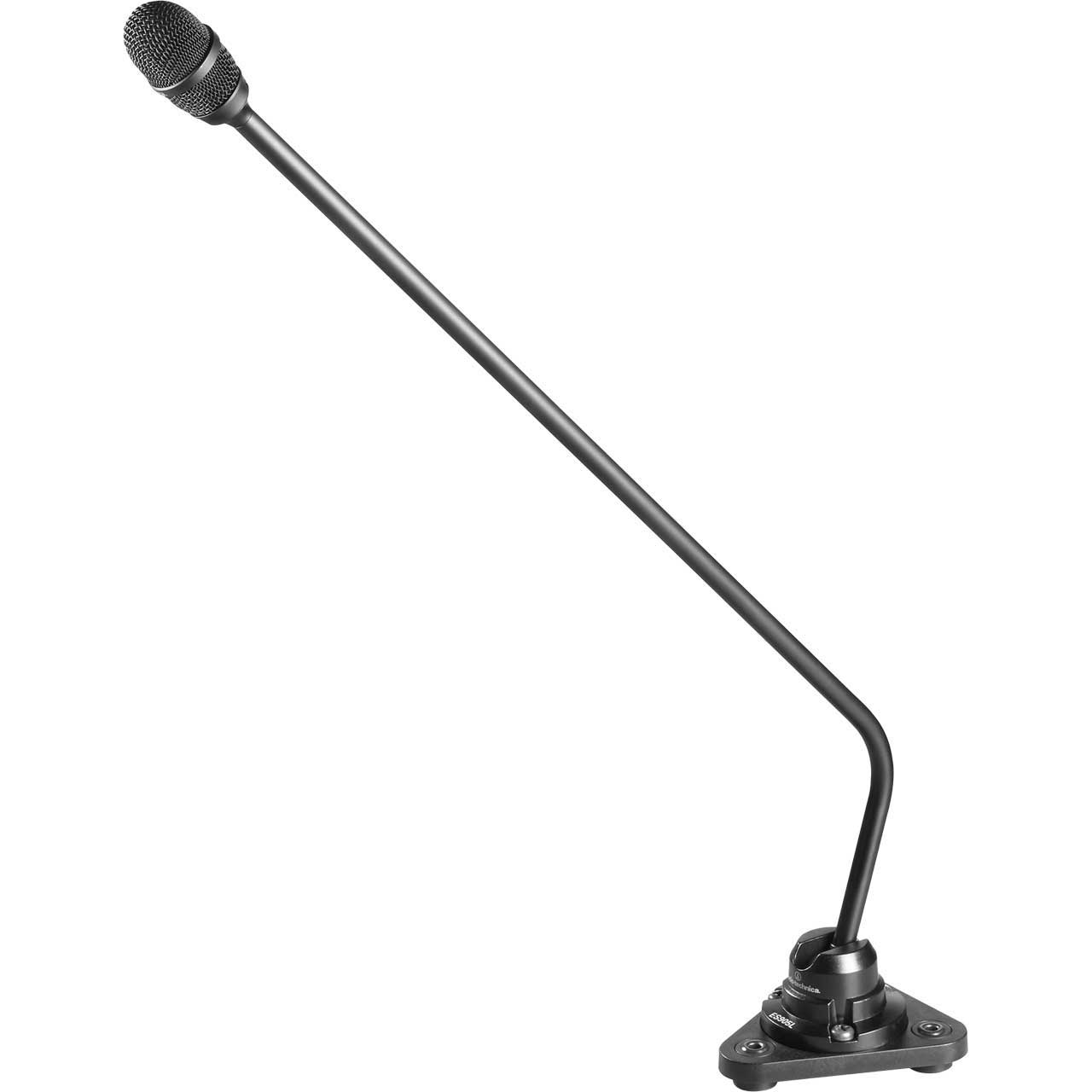

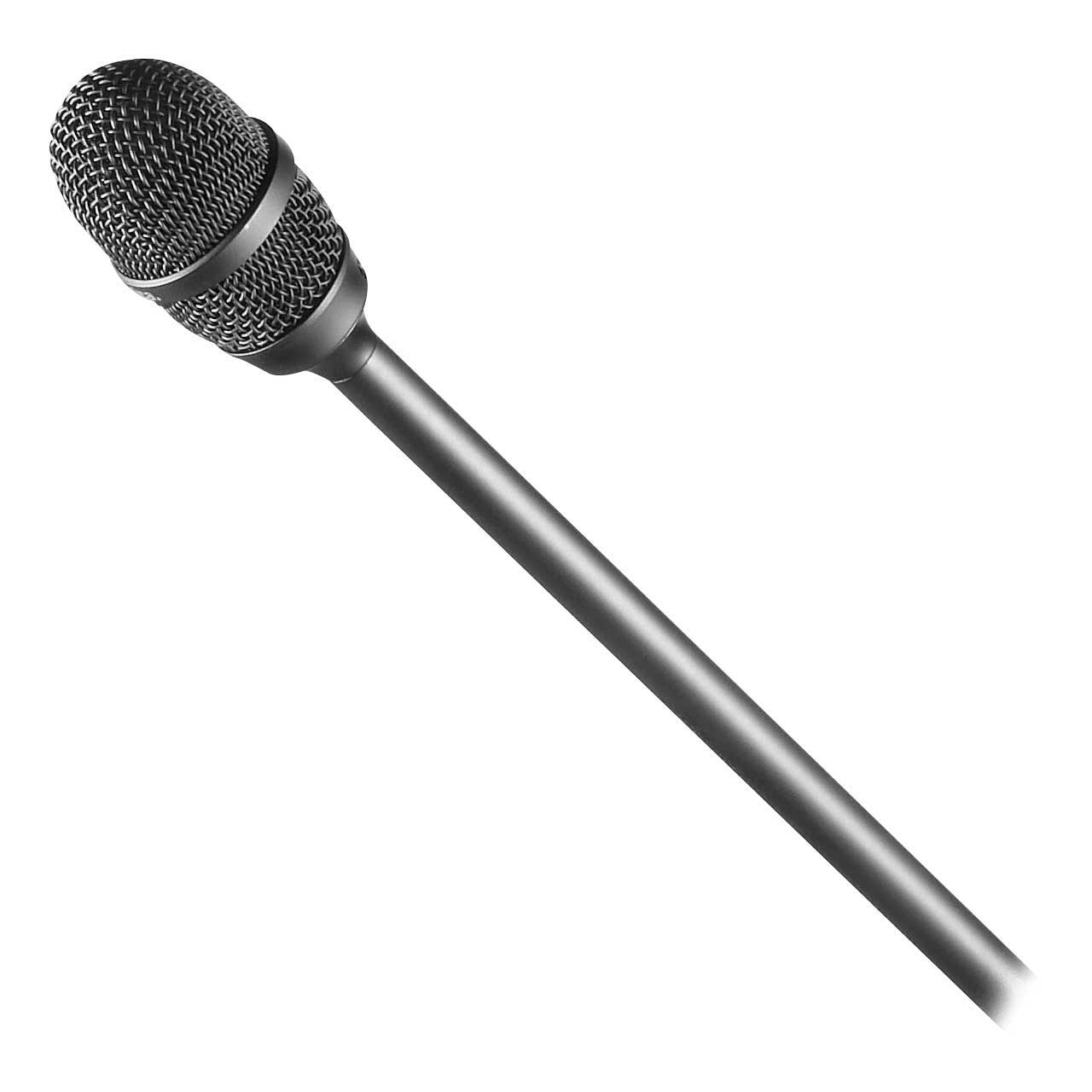

    The Audio-Technica ES905CL is designed for quality sound reinforcement, professional recording, television and other demanding sound pickup applications. Its rigid-pipe design with ball-in-socket base permits flexible positioning, while its durable metal base mounts to a table, desk or podium with included hardware. The attached wire mesh windscreen with internal pop protection effectively reduces noise from P-pops, wind, and ventilation air currents. The microphone offers unsurpassed immunity from radio frequency interference thanks to UniGuard® innovations. The ES905CL also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone's low-profile element provides a uniform cardioid polar pattern with a 120° acceptance angle. Power module included.

    • Features:

      • Designed for high-quality sound reinforcement, professional recording and broadcasting
      • Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
      • Rigid-pipe design with ball-in-socket base permits flexible positioning
      • Sturdy metal base mounts to table, desk or podium with included hardware
      • Superior off-axis rejection for maximum gain before feedback
      • Requires 11V to 52V DC phantom power
      • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
      • Integral UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
      • RoHS compliant-free from all substances specified in the EU directive on hazardous substances
    • Specifications:

      • Element: Fixed-charge back plate permanently polarized condenser
      • Polar Pattern: Cardioid
      • Frequency Response: 60-20,000 Hz
      • Low Frequency Roll Off: 80 Hz, 18 dB/octave
      • Open Circuit Sensitivity: -38 dB (12.5 mV) re 1V at 1 Pa
      • Maximum Input Sound Level: 138 dB SPL, 1 kHz at 1% T.H.D.
      • Dynamic Range: 111 dB, 1 kHz at Max SPL
      • Signal-to-Noise Ratio: 67 dB, 1 kHz at 1 Pa
      • Phantom Power Requirements: 11-52V DC, 2 mA typical
      • Weight (Microphone): 330 g (11.6 oz)
      • Weight (Power Module): 81 g (2.9 oz)
      • Weight: Microphone: 330 g (11.6 oz)
      • Power Module: 81 g (2.9 oz)
      • Cable: 2.9 m (9.5') long, (permanently attached to microphone) 3.2 mm (0.13") diameter, 2-conductor, shielded cable terminated with TA3F-type connector
      • Dimensions: Microphone : 523.4 mm (20.61") long - 24.6 mm (0.97") head diameter
      • Power Module: 92.9 mm (3.66") long, 18.9 mm (0.74") diameter
      • Dimensions (Power Module): 92.9 mm (3.66") long, 18.9 mm (0.74") diameter
      • Dimensions (Microphone): 523.4 mm (20.61") long 24.6 mm (0.97") head diameter
      • Output Connector (Power Module): Integral 3-pin XLRM-type
      • Output Connector: Integral 3-pin XLRM-type (Power module)
      • Optional Interchangeable Elements: ESE-H hypercardioid (100°); ESE-O omnidirectional (360°)
      • Audio-Technica Case Style: M37
    • Item Includes:

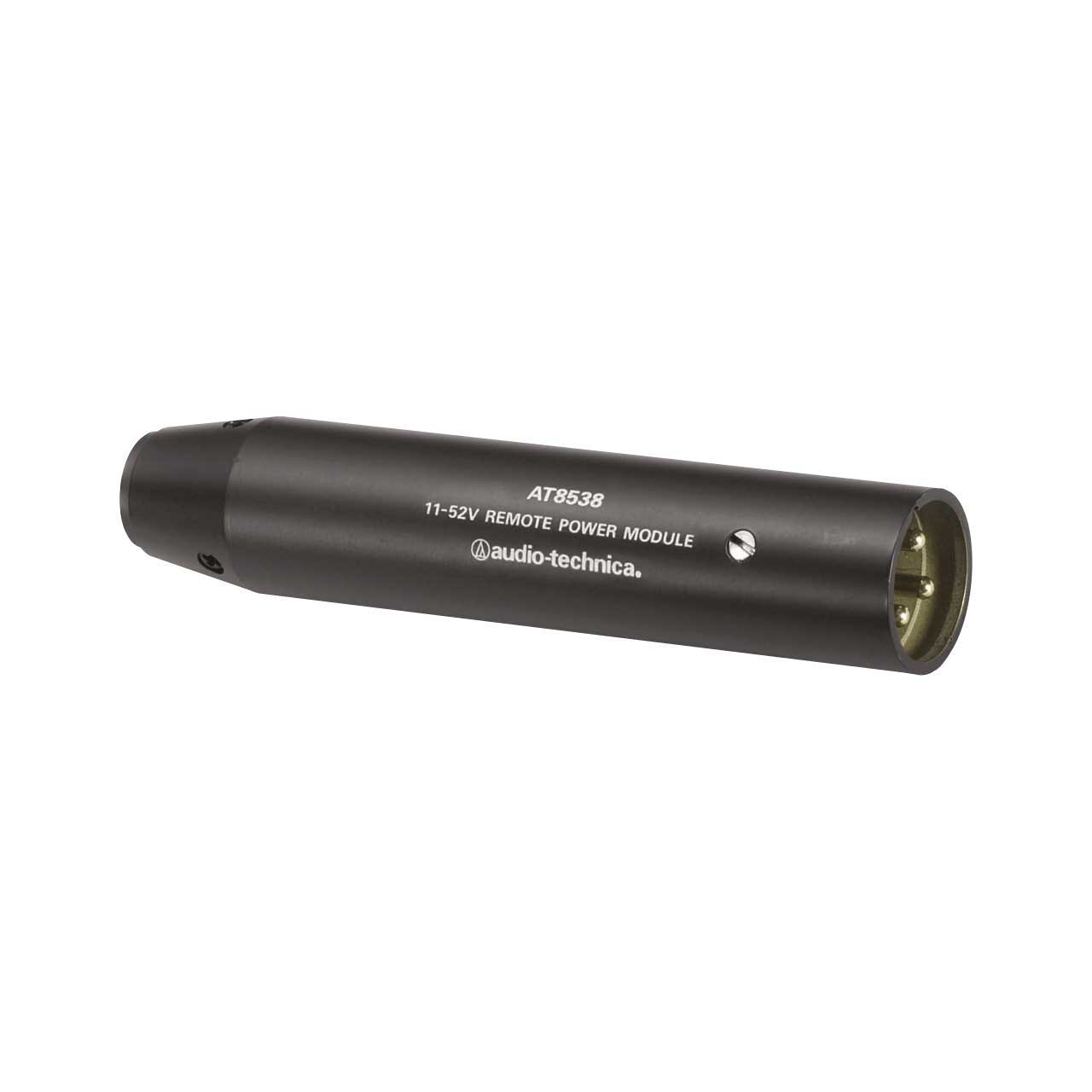

      • 1x AT8538 power module
      • 3x #8 x 1" black oxide wood screws for microphone mount
