NAD22-T1 - Overview

Bolin D Series Dante AV PTZ camera D220 is the world's first Dante AV hardware enabled pan, tilt, zoom camera interfacing video and audio in a standard 1 Gbps network, and providing uncompromised video quality with lowest latency and synchronization.

The D Series Dante AV camera provides high quality color image up to 4K60 / Full HD, with quiet and smooth Pan, Tilt and Zoom capability.Designed to seamlessly integrate into an existing Dante audio ecosystem, the D412 PTZ is managed using the Dante Controller Software with flexibility to independently route audio and video with sub-microsecond accuracy to minimize time alignment issues

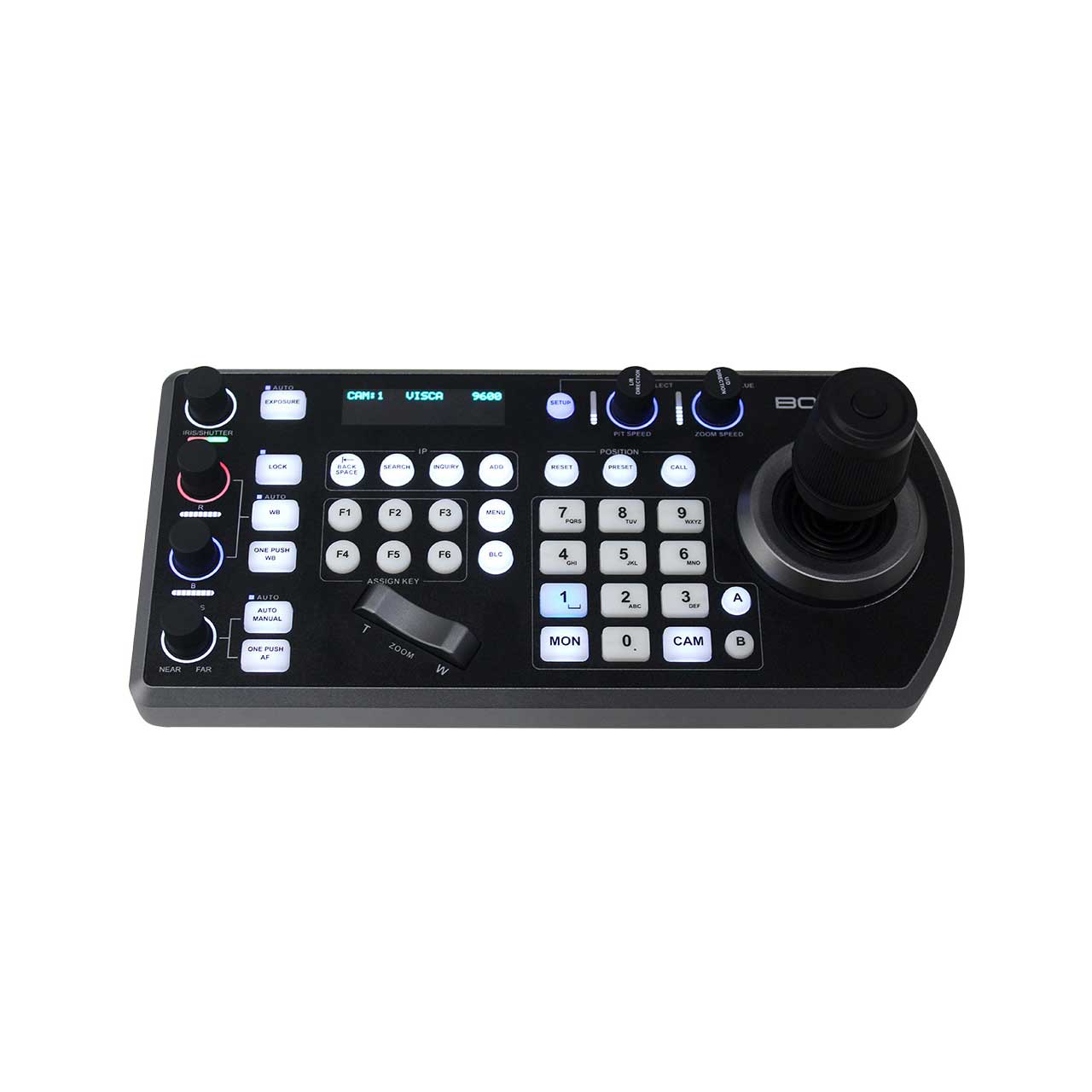

RS232/RS422 Remote Controller/Keyboard
The ergonomically designed Bolin KBD-1010-RNV controller has a direct-access panel interface with full preset store and recall for easy-to-find camera functions, dedicated knobs for PTZ variable speed control and for fine control with auto/manual toggle, illuminated push buttons for camera selection and a three-axis joystick for smooth precise camera movements.

Combining traditional serial control and IP network control, KBD-1010 PTZ camera controller comes equipped with many precision controls for the most demanding camera operation environments. It is an ideal partner for multi-PTZ-camera producer, creating a baseband video and a complete IP streaming solution for a wide range of content production applications, remote studio, education, state-of-the-art broadcast system, video conferencing, house of worship, etc.

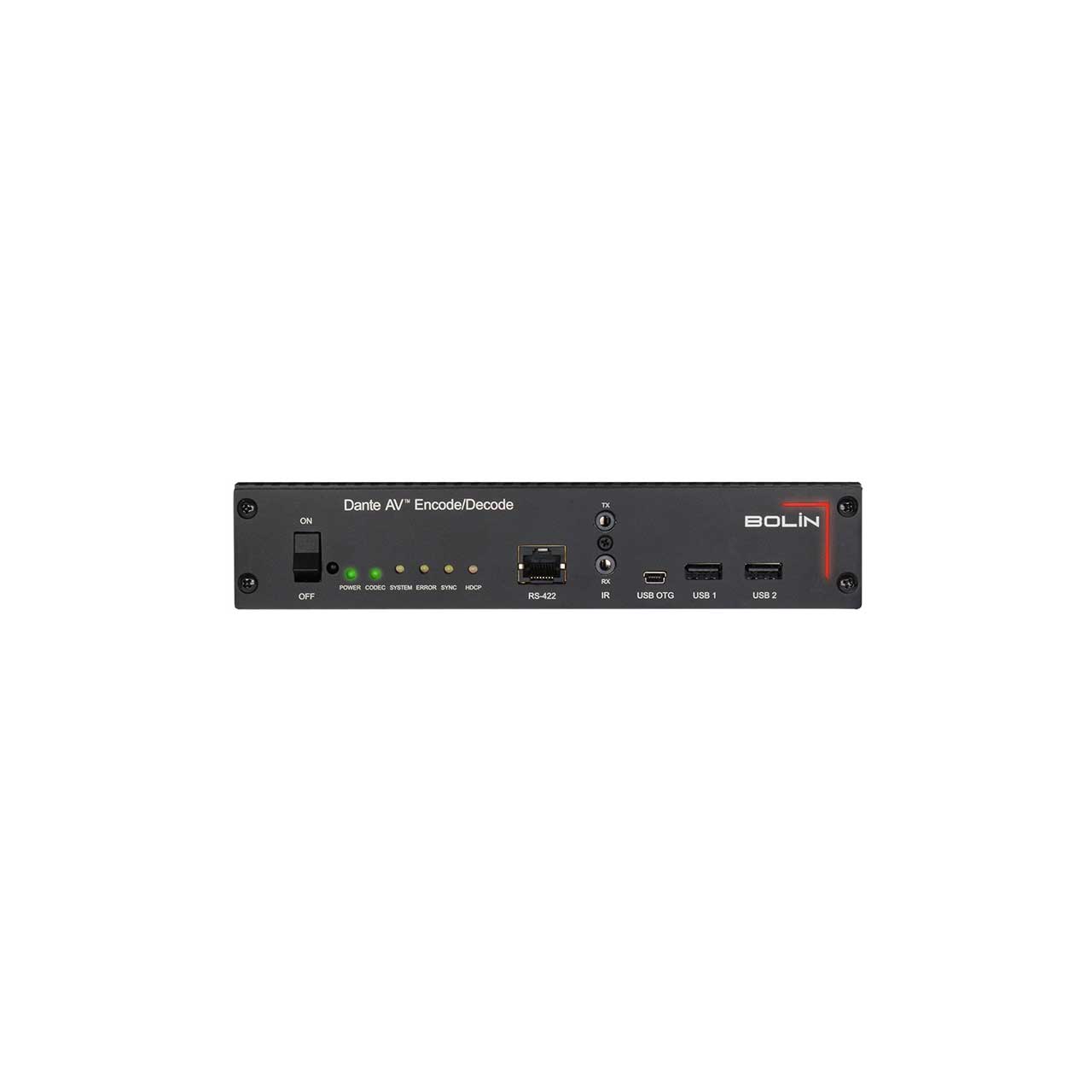

D20H HDMI DanteAV Transceiver

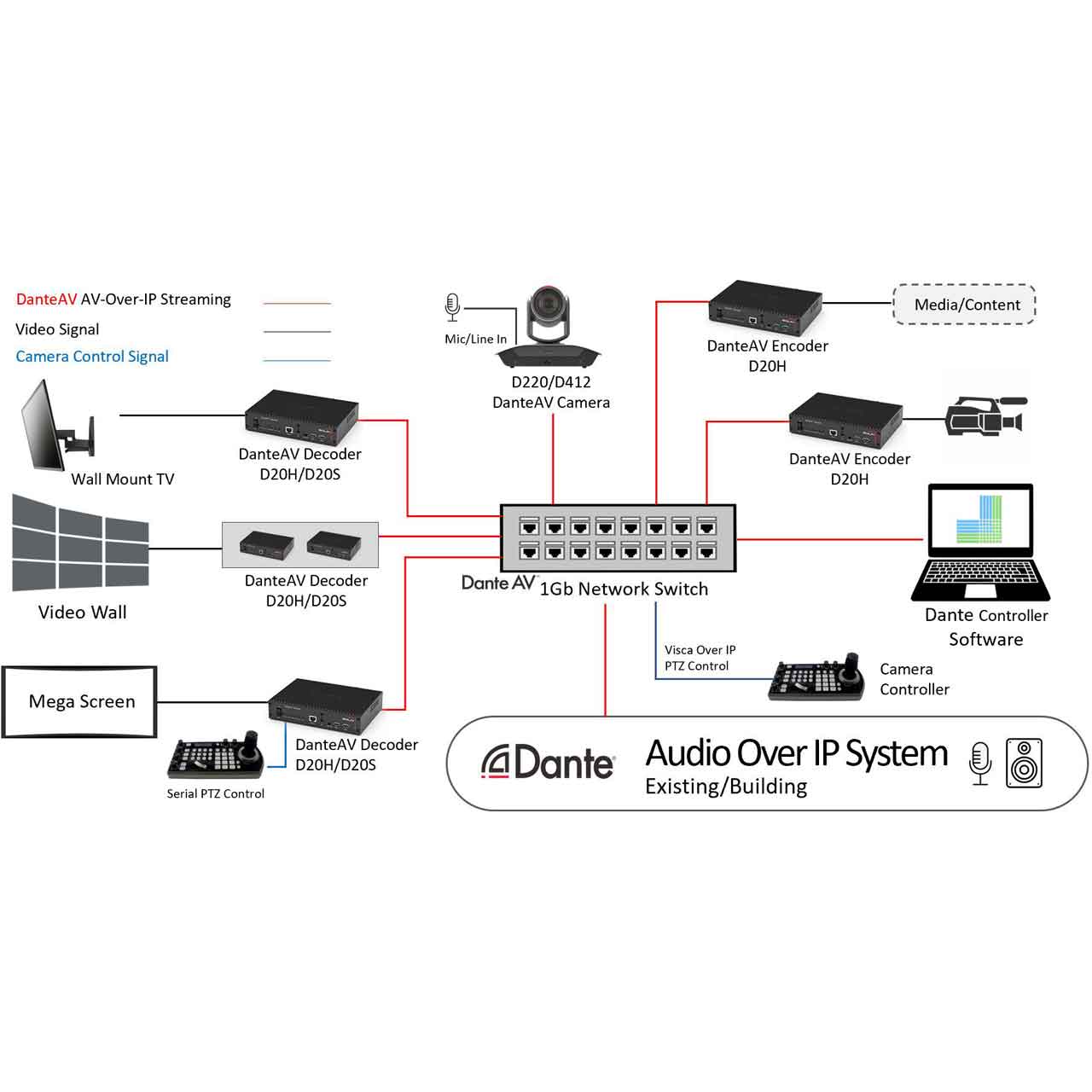

The Bolin D20H(HDMI) decoder is part of Bolin DanteAV camera system. Over standard Gigabit network, a single-channel networked AV decoder outputs baseband video HDMI 2.0 , which not only works with Bolin DanteAV PTZ camera but also works with standard DanteAV video device within Dante eco system.

It transports up to UHD/4K60 4:4:4 video output with ultra low latency and lossless quality. It supports HDCP, plus IP PTZ camera control, embedded audio and control pass-through.

  • Features:

    • Multi-screen video display routing
    • Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60 or FHD
    • Multicast Mode
    • Point to Multipoint and Point to Point Distribution - supports both unicast and multicast video distribution.
    • Ultra-low latency real-time video performance over IP network
    • 4K60 4:4:4 video over standard Gigabit Ethernet
    • Use as a decoder - provides HDMI 2.0 and/or 12G-SDI output
    • Tunable audio delay to facilitate lip-sync control
    • Supported by Dante Controller
    • Cross Protocol Mix-control with RS232/RS422 and IP in one single system
    • Protocol support: Visca, Visca-Over-IP, Pelco D/P, Onvif IP
    • Multiple controllers control up to total 255 IP/VISCA/PELCO cameras on a single system
    • Supports any brand of Visca Over IP cameras in a same system
    • 3-Way simultaneous joystick control
  • Specifications:

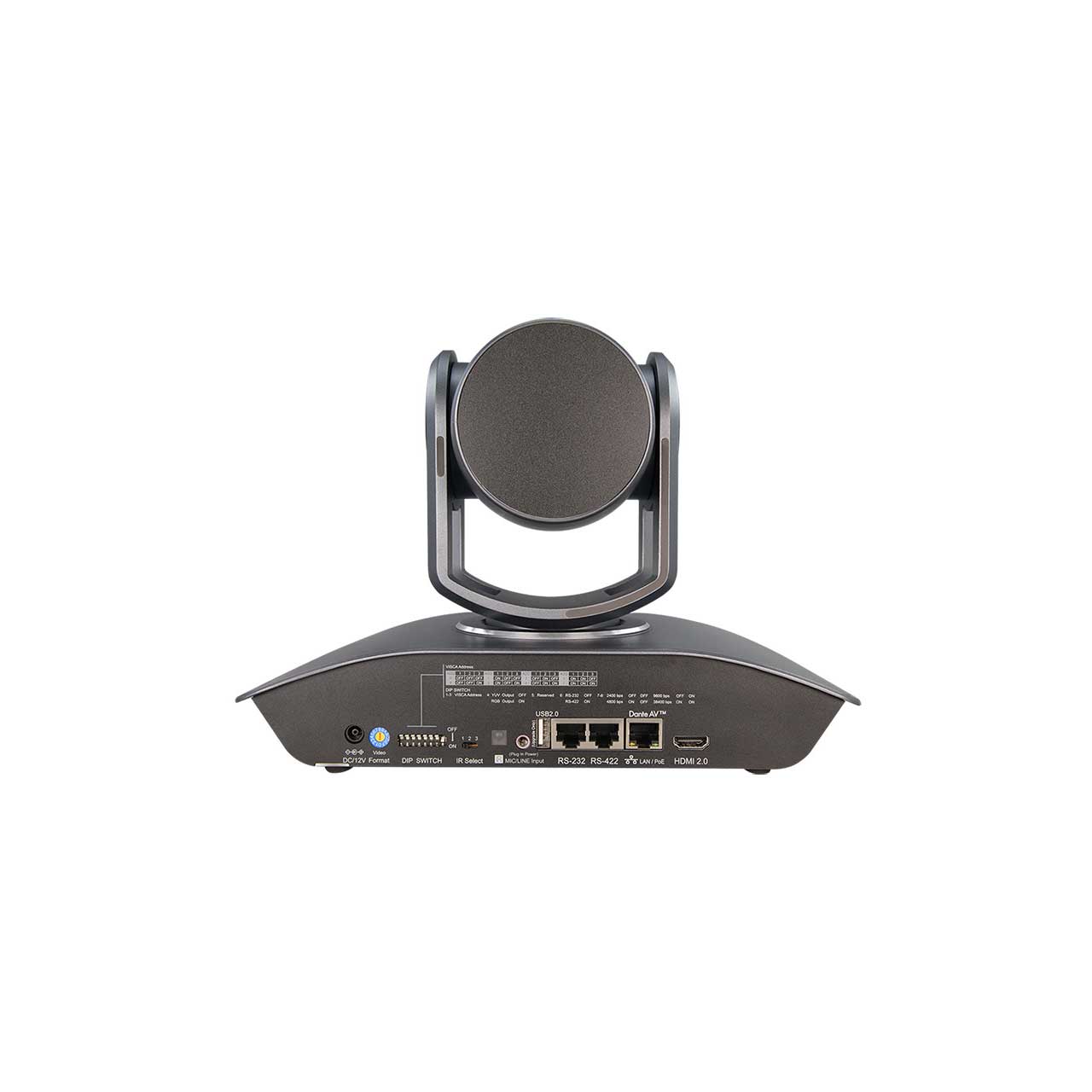

    • D220 Dante AV PTZ Camera
    • Image Sensor: Sony IMX 307, 1/2.8" CMOS
    • Pixels: 1920x1080, 2 MP
    • Zoom: Optical Zoom 20X, Digital Zoom 2x
    • Focal Length: 5.2~98mm, F1.5 ~ F3.0
    • Aperture: F1.5(W)~F3.0(T)
    • Horizontal Angle of View: 55.8°(W)~3.2°(T)
    • Min. Object Distance: 1000mm(Wide), 1500mm(Tele)
    • Min. Illumination: 0.5Lux (Day), 0.1Lux (Night)
    • Shutter Speed: 1/1s~1/10000s
    • Focus: Auto, Manual, One Push
    • White Balance: AUTO, ATW, Indoor, Outdoor, USER, OPW
    • Exposure: Full Auto, Manual, Shutter Priority, Iris Priority, Bright
    • Video Format - HDMI 2.0 -D220: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
    • Color Format: HDMI, RGB 8bit 4:4:4 / YUV 12bit 4:2:2
    • Color Space: YUV(YCbCr), RGB
    • Dante AV: Powered By DanteAV Module
    • Network Interface: Standard 1Gbps Ethernet
    • Video Codec: ProAV optimized implementation of JPEG2000 codec in FPGA, Licensed By IntoPIX
    • Video Transport Format: Dante Video over IP
    • DanteAV IP Video Format: 1920x1080p:60/59.94/50/30/29.97/25; 1280x720p:60/59.94/50/30/25
    • Video Streaming: Unicast or Multicast
    • Latency - Codec: Encoder to Decoder < 8ms with Low Latency Mode

      D20H HDMI DanteAV Transceiver
    • Device: Encoder/Decoder
    • Video Codec: JPEG2000
    • Video Resolution: Up to 4096x2160p60
    • Bit Rates: 200 to 800 Mbps
    • Format/Eco-System: Dante Video over IP
    • Encoder Input: HDMI 2.0
    • Encoder Monitor Output: HDMI 2.0
    • Decoder Output: HDMI 2.0
    • HDMI Resolution: 4096x2160p, 3840x2160p, 1920x1080p, 1920x1200, 1600x1200, 1280x720p, 1280x1024, 1024x768, 800x600, 720x576p, 720x480p, 640x480
    • HDMI Frame Rate: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • HDMI Color Space: RGB, YCbCr
    • HDMI Bit Width: 8-bit, 10-bit, 12-bit
    • HDMI Color Sampling: 4:4:4, 4:2:2, 4:2:0
    • HDMI EDID: Yes
    • Video Standard: SMPTE 292(1.5Gb/s), SMPTE 424, SMPTE 425-A(3Gb/s), SMPTE 2081, SMPTE 2082 With SMPTE352 SDI Metadata Supported
    • Audio Format: Dante Audio over IP
    • Encoder Input: Up to 8 channels to Dante
    • Decoder Output: 2 channels from Dante
    • Bit Depth: 24, 16 and 32 bits
    • Ethernet: Standard 1Gbps Ethernet
    • Ethernet Port: 2

      PTZ Camera Remote Controller/Keyboard
    • Control Input/Output: RS232: RJ45 x1 RS422: RJ45 x2; LAN: RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected. Tally In/Contact Out*: 9pin x1; USB2.0*: Type A x1 (For Firmware Upgrade)
    • Control Signal Format: Baud Rate: 2400/4800/9600/19200/38400 (For RS232-RS422) VISCA over IP communication
    • Power Connector: JEITA type 4 (12VDC), RJ45x1 for POE (IEEE 802.3af), RJ45x3 for Power Over Control
    • Firmware Upgrade: USB2.0: Type A x1, for FW Upgrade Only
    • Display: LED
    • Speed Control: 2 Knobs
    • Maximum Camera Control: Allow to control up to total 255 cameras with combining multiple protocols use in a single system.
    • Maximum IP Connections: Onvif Only: 255; CGI: TBD, Onvif/VISCA Over IP Only: 255
    • Maximum Serial Connections: RS232: 7(VISCA), RS422: 2x7 (VISCA), RS485:255(Pelco P/D)
    • Control Protocol: Pelco P/D over RS485, Visca over RS232/RS422, Onvif, VISCA over IP
    • Power/Input & Voltage: Independent power input 12VDC voltage tolerance 5V~48V, POE(IP), Power using RS422/232 port via Junction Box included.
    • Current Consumption: 5W
    • Operation Temperature: 32°F to 104°F
    • Storage Temperature: 4°F to 140°F

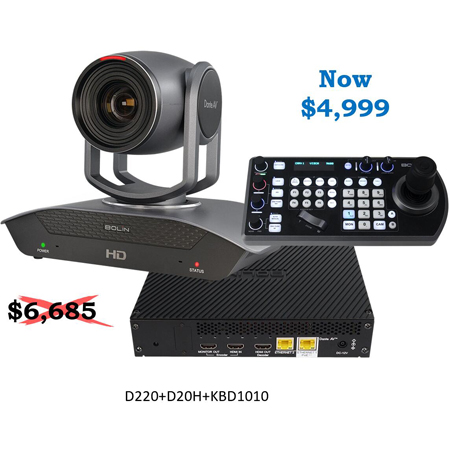

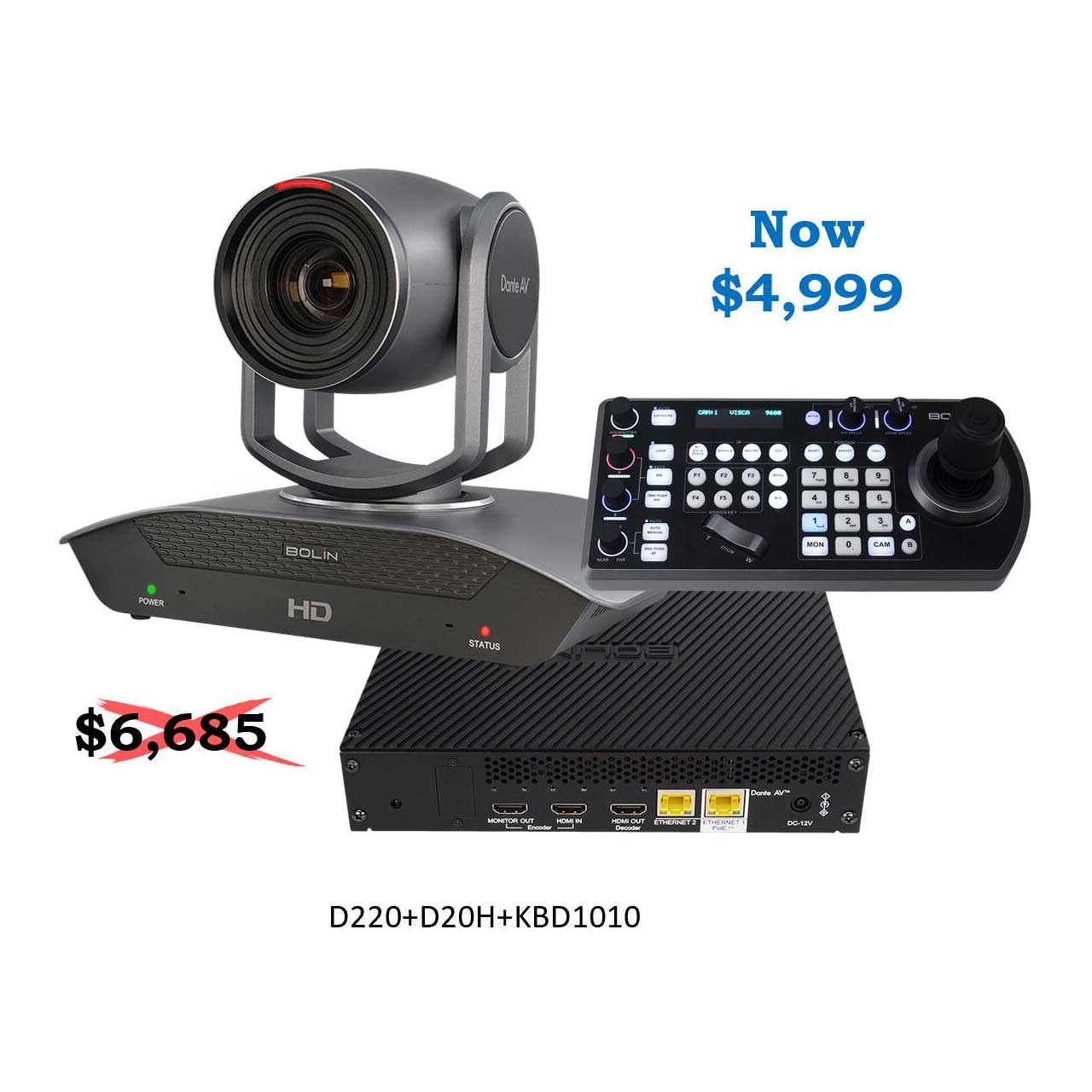

  • Item Includes:

    • 1x D220 PTZ Camera
    • 1x D20H Transceiver
    • 1x KBD1010 PTZ Controller
