    BARNMINI-06 - Overview

    These standalone solutions are ideal for smaller jobs where the BarnOne frames may not be required - they represent the "Swiss army knife" of the conversion and signal transport part of the industry.

    A rackmount solution is available allowing you to mount several units together or, you can use these little boxes as "throw-downs" behind racks and inside ceilings and floors to solve conversion and signal transport challenges as needed.

    The BarnMinis are ideal standalone solutions where no control is required and solve everything from a simple task to more comprehensive solutions where the BarnMini s are used in conjunction with BarnOne' frames to empower complete distributed systems in lager facilities.

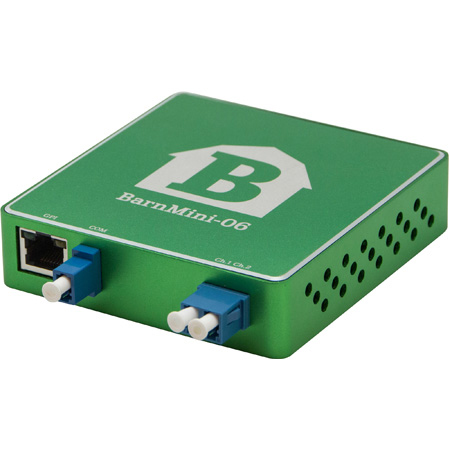

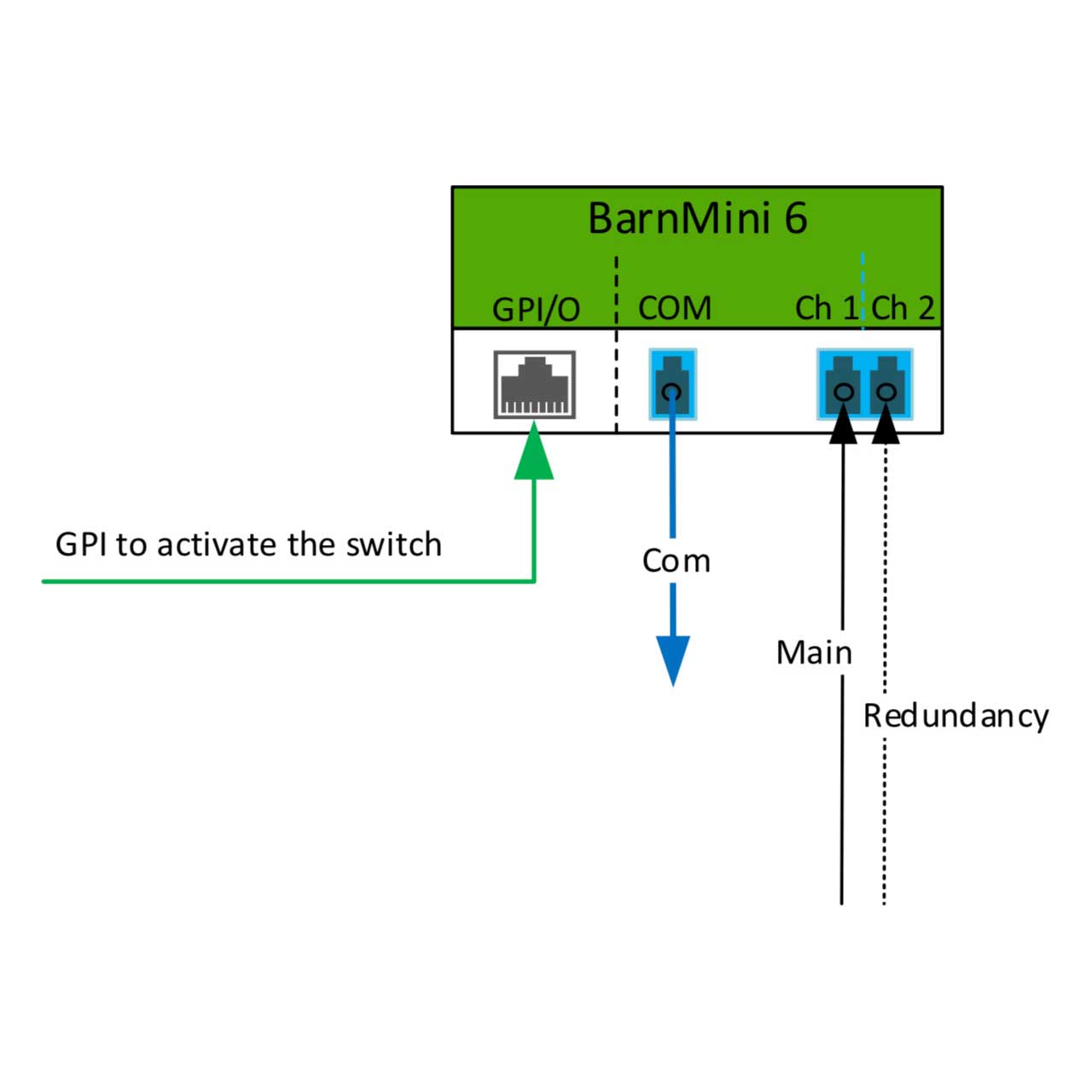

    The BarnMini-06 is the optical changeover switch, which is very easy to integrate with the GPO devices that are found in many broadcast applications. A great advantage is the ability to provide its own power needed to drive the switch either as a stand alone or in the BarnMini frame with common PSU. The BarnMini-06 is often used in conjunction with the BarnMini-05. This is a great combination to create advanced signal redundancy solutions.

    • Features:

      • Use any SFPs from Barnfind or any other SFP supplier as long as they are MSA compatible.
      • All BNCs and SFP outputs are re-clocked.
      • Unique HDMI to SDI solutions with any fiber distance depending on SFP selection.
      • Multimode to Singlemode conversion in one Mini.
      • BarnMini Housing in 2.5RU for up to 16 x different BarnMinis.
      • All BarnMini modules are operational from 5V to 24V.
      • Can be used as a standalone box or in advanced systems with
      • BarnOne or any 3rd party solution.
      • AC adapter is included.
      • Rock solid mechanics and technology. The BarnMinis are designed to work in harsh environments.
    • Specifications:

      • Optical Ports
      • LC/PC connectors
      • Operating Wavelength 850-1620nm
      • Fiber type Single Mode
      • Insertion Loss <1,2dB
      • Wavelength dependant loss <0,3dB
      • Polarisation dependant loss 0,05dB Physical Size
      • Crosstalk >35dB 92mm x 98mm x 22mm
      • Return loss >35dB 200g

        Optical Switch
      • Switching time <10ms (typically 4ms)
      • Max. switching cycles 10.000

        GPI port
      • RJ45 connector with 4x GPI wired parallel, non latching

        Power Supply
      • 12-24V DC power supply included
      • redundant power supply available with BTF-Mini-16

        Physical Size
      • 3.6 inch x 3.8 inch x 0.8 inch (92mm x 98mm x 22mm)
      • 0.4lbs (200g)
    • Item Includes:

      • 12-24V DC power supply included
