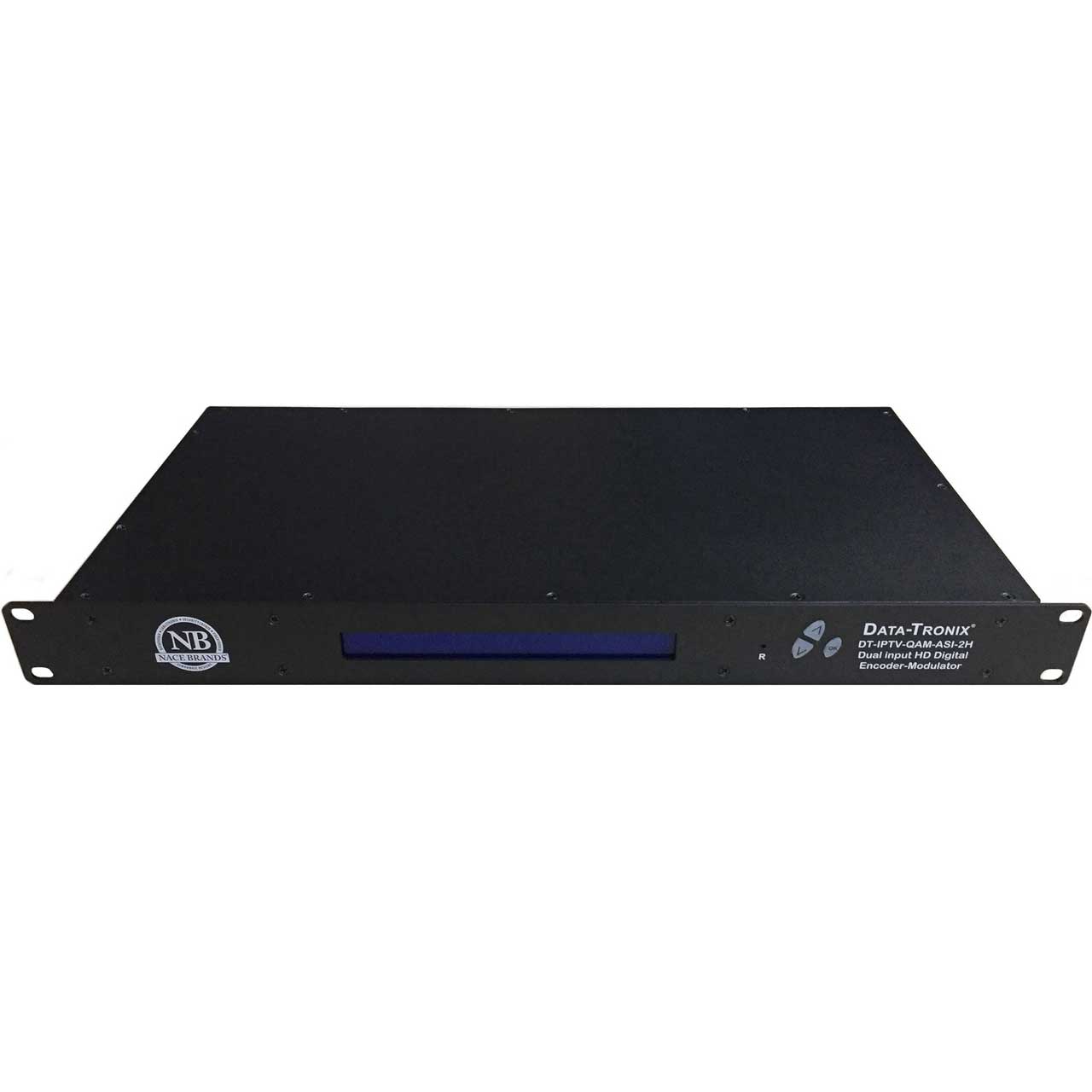

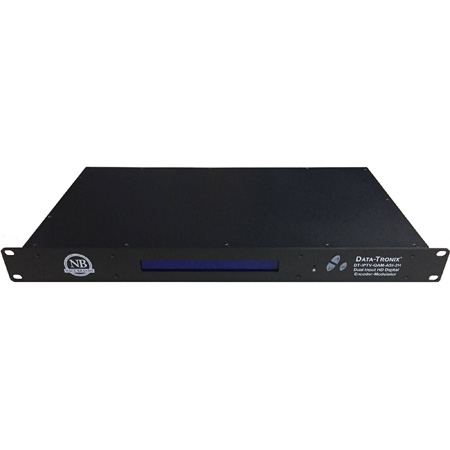

Cabletronix DT-IPTV-QAM-ASI-2H Dual Input Digital Encoder-Modulator with ASI

DT-IPTV-QAM-ASI-2H - Overview

DT-IPTV-QAM-ASI-2H - Overview

• Features:

  • Front panel LCD Display for easy installation
  • High Resolution 1080i/1080p
  • VCN Mode for Virtual Channel Mapping
  • Composite, Component, and HDMI (unencrypted) inputs
  • MPEG2 or MPEG4 (AVC) Video Output
  • Selectable Constellation
  • Closed Captioning Support
  • +40dBmV Output
  • Newly Added EAS Functionality
  • Rack mountable 1RU height


• Specifications:

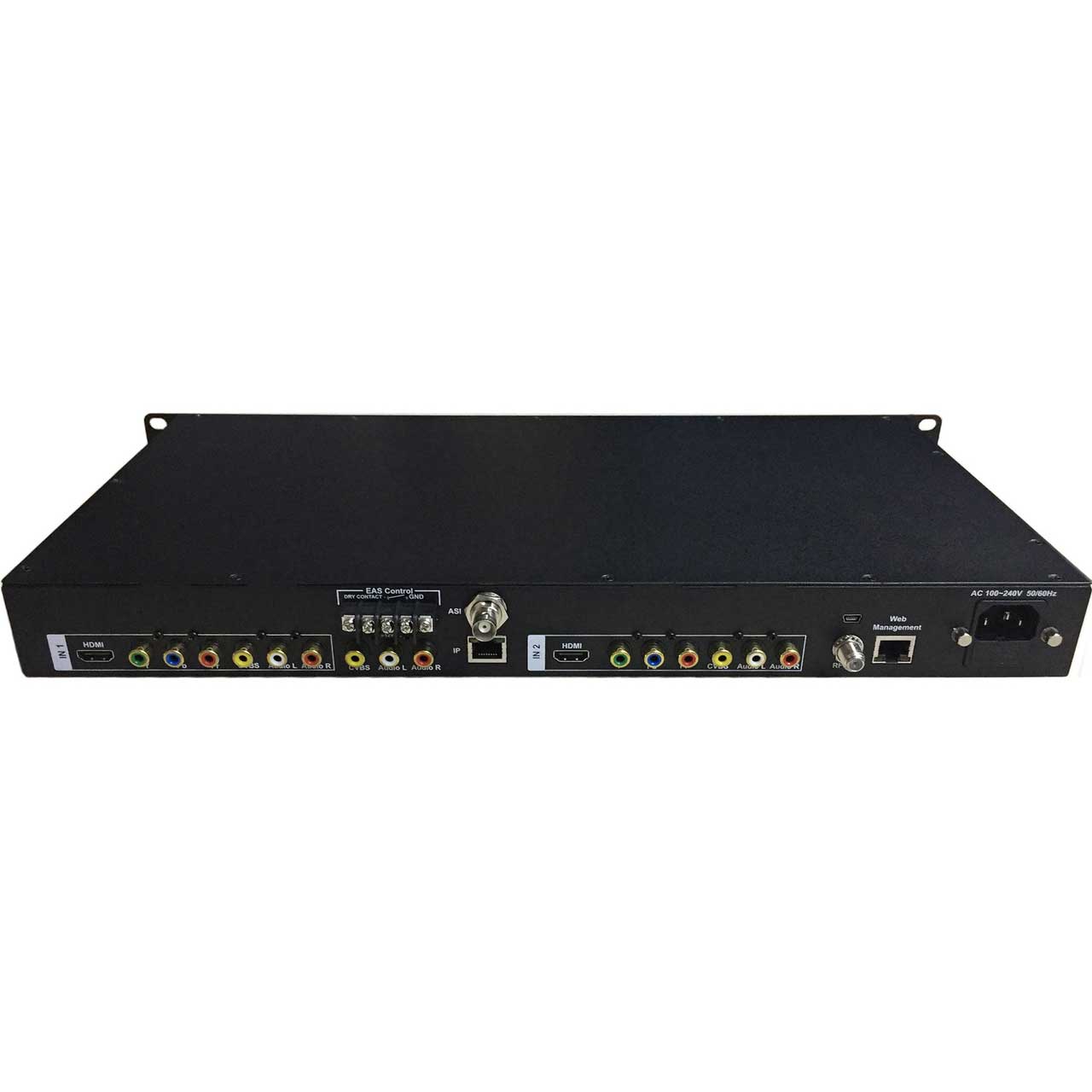

  • Video Inputs
  • HDMI: 1.4v
  • Component: YPrPb (RCA)
  • Composite: CVBS (RCA)

    Audio Inputs
  • Audio Input: L/R (RCA)

    Video Encoder
  • Mode: MPEG-2, MPEG-4 (AVC) Selectable, AVC only (4/1 Models)
  • Video Resolutions: 1080p(AVC Only), 1080i, 720p, 576p, 576i, 480p, 480i


  • Audio Encoder
  • Audio Compression: MPEG-1 Layer II, AAC, Supports Dlby® Digital AC-3, AC-3 Pass through.

    RF QAM Support
  • Frequency: 54 - 864MHz (CH 2 - CH 135)
  • RF-Channel Output: 1/1 (Single Input), 2/1 (Dual Input), 4/2 (Quad Input), 4/1 (Quad Input AVC Only)
  • QAM: J.83 Annex B
  • Constellation: QAM256 (Dual/Quad)
  • Bandwith: 6MHz
  • RF Output: "F" - Female 75
  • Closed Captioning Control: Per Output Control (Use of CVBS Input)

    EAS Support (Optional)
  • Connection: Dry Contact
  • Video Input: CVBS (RCA)
  • Audio Input: L/R (RCA)

    ASI Output Support (Optional)
  • Connection: BNC 75
  • Output: TS Multiplexed

    IP Output (Optional)
  • Type: RJ-45, GbE
  • Stream: Type: Unicast, Multicast
  • TS Format: SPTS (Single Input Only), MPTS

    Management/Control
  • Front Panel LCD Controller: Full Support (Up/Down/OK Control Buttons)

    General
  • Rack Mountable (1RU): 19" x 9.45" x 1.75" (482.7mm x 240mm x 44.4mm), 19" EIA Standard
  • Fan Cooled: Internal
  • LCD Front Panel: Dual Line, Scrolling Display


• Item Includes:

  • 1x DT-IPTV-QAM-ASI-2H HD Digital Encoder-Modulator
  • 1x Power Cable
