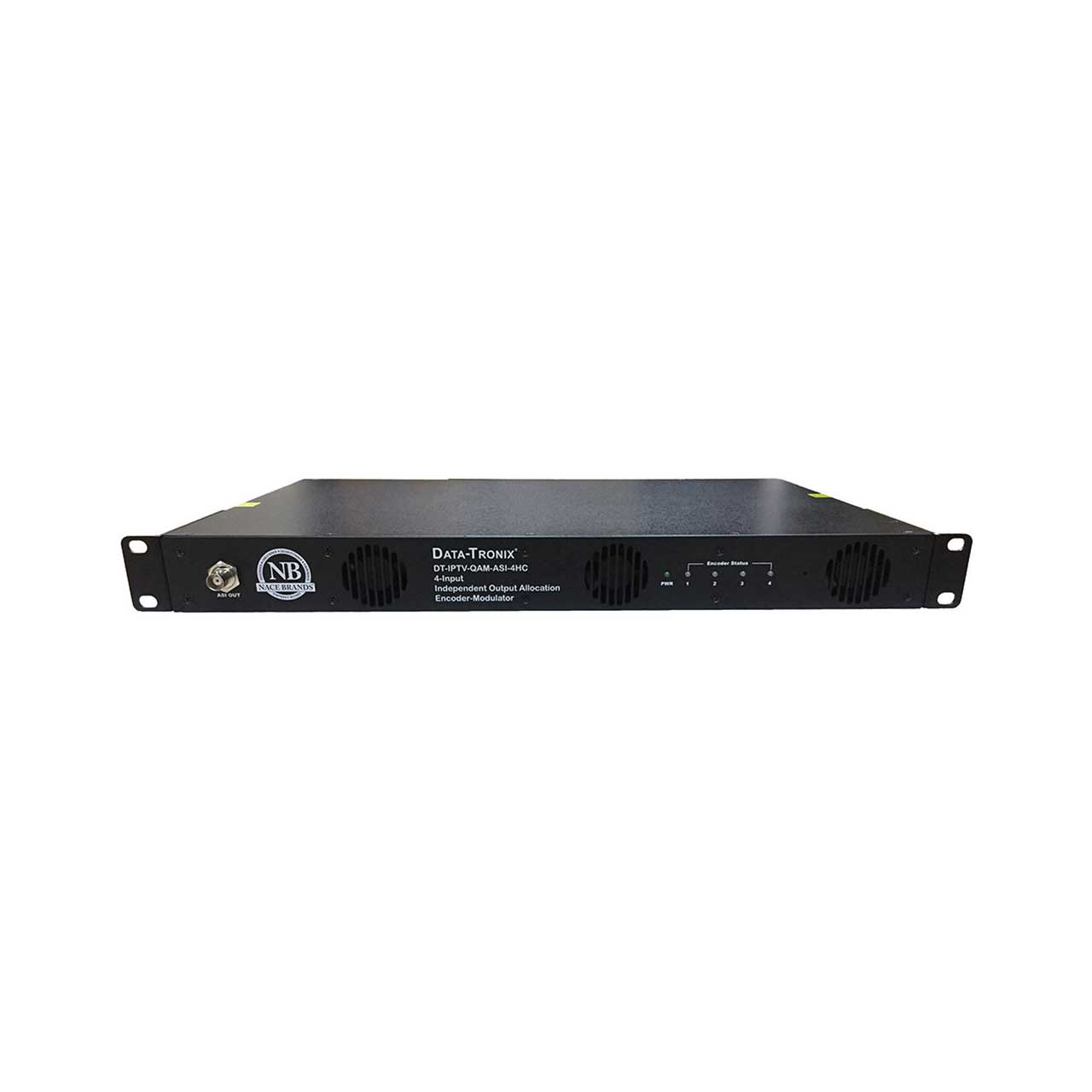

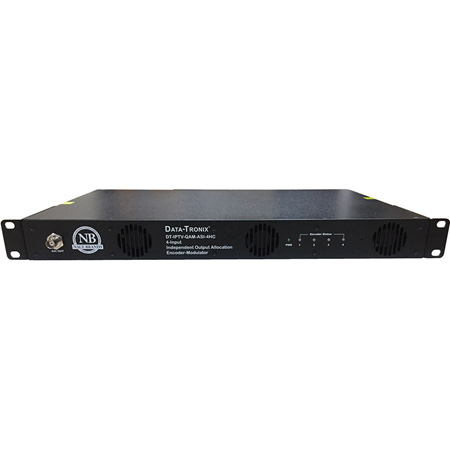

Cabletronix DT-IPTV-QAM-ASI-4HC 4-Input Encoder-Modulator with ASI and IP Outputs

DT-IPTV-QAM-ASI-4HC - Overview

DT-IPTV-QAM-ASI-4HC - Overview

• Features:

  • Integrated connection strain relief manager
  • 2 Frequency Independent QAM outputs
  • High resolution up to 1080i (MPEG-2) / 1080p (H.264)
  • 3 VCN (Virtual Channel Number) modes
  • GUI for easy setup and control
  • HDMI, Component / Composite inputs via DIN cable
  • Up to 4 selectable SPTS IP streams
  • Up to 4 selectable ASI streams with MPTS output
  • MPEG-2 or H.264 (AVC) Video (selectable) output
  • EAS functionality
  • 43dB typical MER
  • Closed captioning support
  • +40 dBmV RF Output
  • Rack mountable 1RU height


• Specifications:

  • Video/Audio Inputs
  • HDMI: x4 HDMI 1.4v
  • Mini DIN: x4 [Component & Composite Video / Audio Input(Combined)]

    Video Formats
  • Resolution: 1080p (H.264 Only), 1080i, 720p, 576p, 576i, 480p, 480i

    Video / Audio Compression
  • Video Codecs MPEG-2: [email protected]
  • Video Codecs H.264 (HD): > 1080p30, [email protected] 4.2 / ≤1080p30, HP @ Level 4 > 720p30, [email protected] 3.2 / ≤720p30, HP Level 3.1
  • Video Codecs H.264 (SD): Frame rate > 30, MP @ Level 3.1 / ≤30, Level 3
  • Audio Codecs: MPEG-1 Layer II / AAC / AC-3 pass through

    Video Bitrate
  • MPEG-2: SD: 1 to 8Mbps / HD: 10 to 15.7Mbps
  • H.264: SD: 1 to 4Mbps / HD: 4 to 8Mbps

    RF Output
  • Channel Plan: Varies by Country
  • Output Level: +40 dBmV
  • Output Impedance: 75ohm
  • Level Adjustment: 0~-20dB
  • Modulation Modes: 256 QAM / 64 QAM
  • QAM Type: DVB-C Annex B
  • Channel Allocation Type: Independent
  • VCN Mode: 3 Modes Supported
  • MER: 43dB Typical

    IP
  • Streaming Protocols: UDP/RTP Unicast, Multicast
  • Stream Types: 4 SPTS
  • Stream Control: L/R (RCA)
  • Connector: 1 GbE IP Stream

    ASI Support
  • Stream Type: Single output (1 MPTS stream carrying up to 4 programs)

    EAS Support
  • Connection: Dry Contact
  • Audio/Video Input: DIN

    General
  • Local Monitoring: LED System Indicators (Power & 4 Encoder Status LEDs)
  • Web Management: 1 RJ-45 10/100 Management
  • GUI Supported: Microsoft Edge, Firefox, Chrome, Safari
  • Password Protected: GUI: Changeable
  • Fan Cooled: Internal
  • Power Supply: 12VDC 7.5 AMP
  • Consumption: 34W Typical
  • Dimension: 482.7MM x 286mm x 44.2mm / 1RU 19" EIA (Housing Body: 438mm x 286mm x 44.2mm)


• Item Includes:

  • 1 x DT-IPTV-QAM-ASI-4HC Encoder / Modulator
  • 1 x power cable
  • 5 x Mini Din 10pin/6 RCA Cables
  • 4 x HDMI Cables
