Channel Vision CVT-40BID 5-1000MHz RF Antenna/Cable Amplifier with 40DB Gain

ITEM #: CVT-40BID MFG #: CVT-40BID

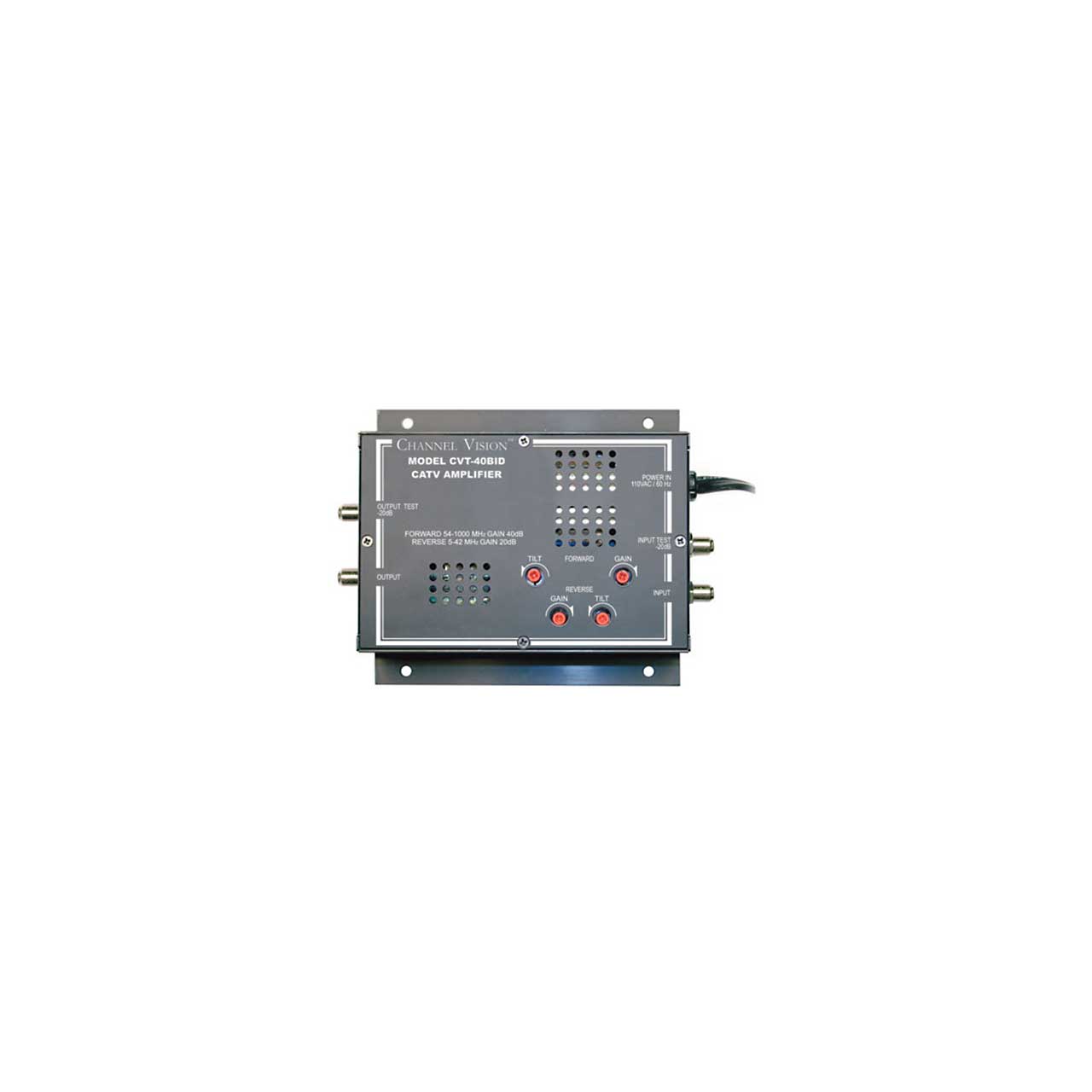

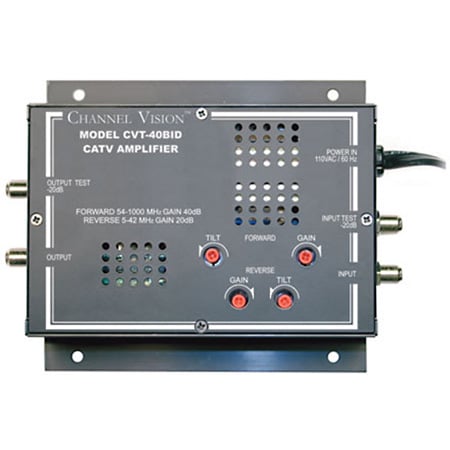

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the CVT-40BID

CVT-40BID - Overview

Channel Vision'sCVT-40BID 40dBmV Amplifier is the perfect cable or antenna amplifier for large multi-dwelling units (MDU's) and facilities that require precise RF amplification with gain and slope adjustments for a professional installation

  • Features:

    • Suitable for use with CATV or Antenna Systems from 5-1000 MHz frequency TV band
    • Provides an amplified 5-42MHz bi-directional reverse path for interactive TV, addressable cable box converters and cable modems
    • Includes variable gain to reduce the possibility of over driving the system
    • Variable tilt compensation allows large systems to be properly balanced and a flat signal across all frequencies


  • Specifications:

    • Output Frequency Range: 54-1000MHz
    • Output Level: 50dBmV (2chs, spurs -60dBC)
    • Gain: 40dB
    • Gain Control: 0-20dB
    • Tilt Control: 0-16dB
    • Noise Figure: <2dB (max gain, min tilt)
    • Return Loss: 8dB
    • Input/Output Impedance: 75 ohm
    • Input and Output Tests Points: -20dB
    • Connectors: F type female
    • Power Supply: 110VAC internal
    • Power Consumption: 20 W
    • Operating Temperature: -10§C to +60§C
    • Reverse Path: 5-42MHz
    • Gain: 20dB


  • GTIN:

    0690240022551
