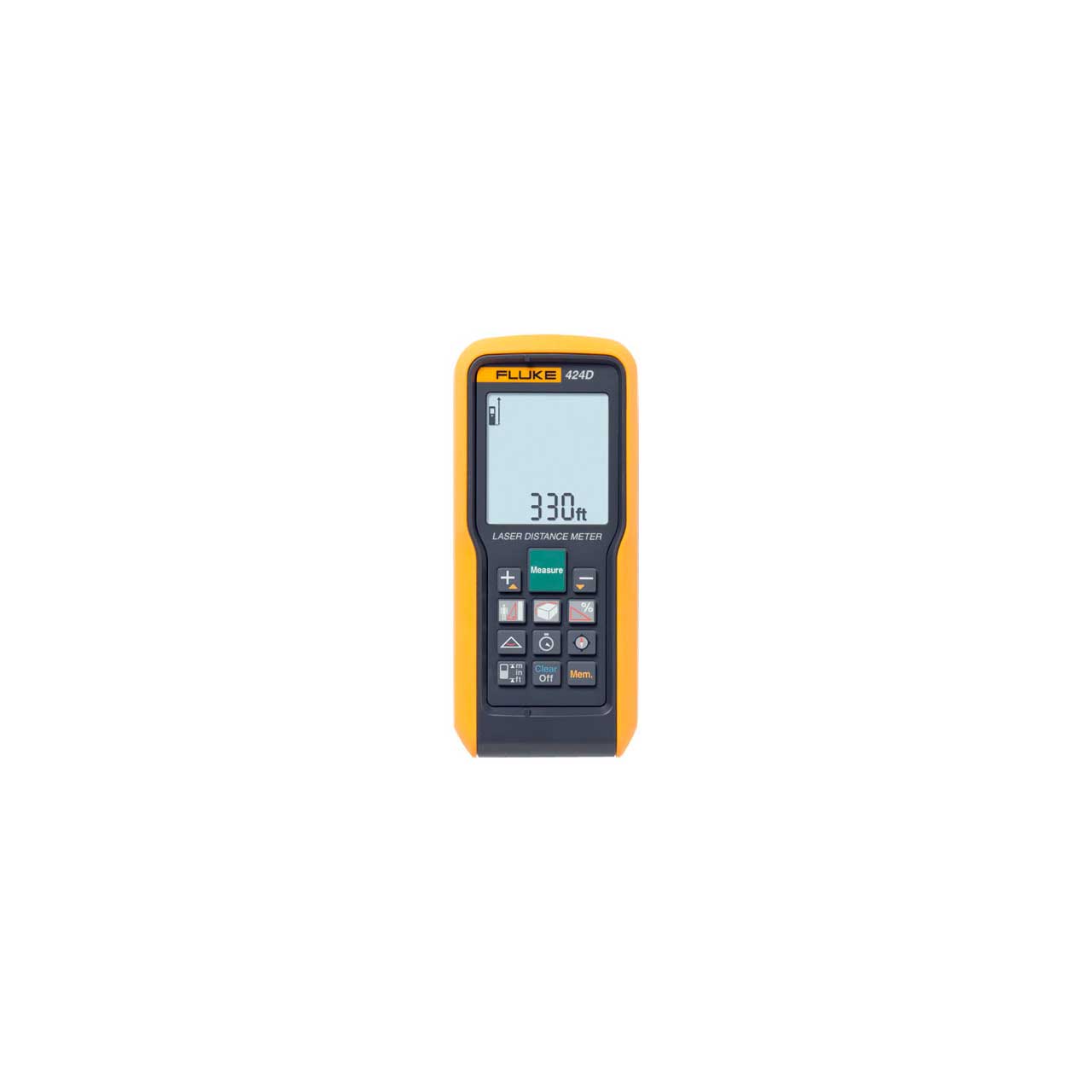

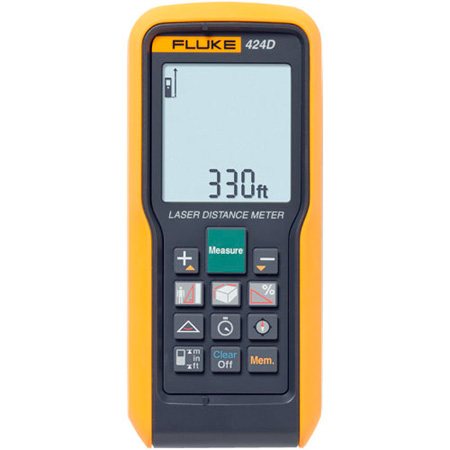

Fluke 424D 100m Range Laser Distance Meter

424D - Overview

424D - Overview

• Features:

  • Improved visibility with backlit screen
  • Ability to measure up to 100 meters (330 ft)
  • Tripod mode allows you to mount to a tripod for measuring long distances
  • Stake out function
  • Reduction of estimation errors, saving both time and money
  • Instant measurement with one-button operation
  • Easy addition and subtraction function
  • The most advanced laser technology for distance measurement
  • Simple one-button operation to instantly measure distance between two objects
  • Bright laser for easy targeting even at longer distances
  • Quick calculation of area (square feet/meters) and volume
  • Easy addition and subtraction function
  • Enhanced Pythagoras calculation for determining distance indirectly from three other measurements
  • Audible keypad feedback
  • Inclination sensor for taking measurements in hard to reach areas
  • Compass provides a "heading" for distance measurement
  • Automated endpiece correction: when measuring from an edge or corner, a built-in sensor detects the position of this bracket and automatically changes the reference point
  • Storage of the last twenty measurements for quick recall of distance
  • Strong environmental protection with I
  • Stores up to five measurement results
  • Battery life of 3000 measurements with automatic shut-off feature
  • Two-line display with display hold (until next button is pressed)
  • Carrying pouch secures to your tool belt
  • Powered by two AAA batteries


• Specifications:

  • Distance measurement
  • Typical measuring tolerance ± 1.0 mm
  • Maximum measuring tolerance ± 2.0 mm
  • Range at Leica target plate GZM26 100 m/330 ft
  • Typical range 80 m/260 ft
  • Range at unfavorable condition 60 m/195 ft
  • Smallest unit displayed 1 mm /1/32 inches
  • Power Range Technology Yes
  • Ø laser point at distances 6/30/60 mm (10/50/100 m)
  • 0.23/1.18/2.36 in (32.8/164/330)


  • Tilt measurement
  • Measuring tolerance to laser beam ± 0.2°
  • Measuring tolerance to housing ± 0.2°
  • Range ± 360°


  • General Specifications
  • Laser class II
  • Laser type 635 nm, <1 mW
  • Protection class IP54
  • Automatic laser off After 90 seconds
  • Automatic power off After 180 seconds
  • Battery life (2 x AAA)
  • 1.5 V NEDA 24A/IEC LR03 up to 5,000 measurements
  • Size (HxWxD) 5 in x 2.20 in x 1.29 in
  • (127 mm x 56 mm x 33 mm)
  • Weight (with batteries) 158 g (5.57 oz)
  • Temperature range:
  • (Storage & Operation) -25°C to +70°C (-13°F to +158°F)
  • -10°C to +50°C (14°F to +122°F)
  • Calibration cycle Tilt and compass
  • Maximum altitude 3000 m
  • Maximum relative humidity 85% at 20°F to 120°F (-7°C to 50°C)
  • Safety CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
  • EMC 61326-1:2006


• Item Includes:

  • 2 - AAA batteries
  • 1 - Users manual on CD
  • 1 - Quick reference guide
  • 1 - Vinyl carrying pouch
  • 1 - Lanyard


• GTIN:

  0095969613576
