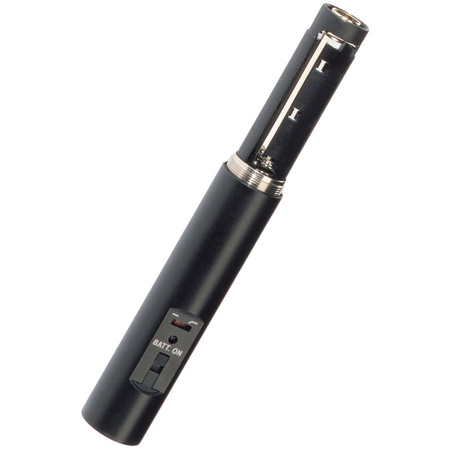

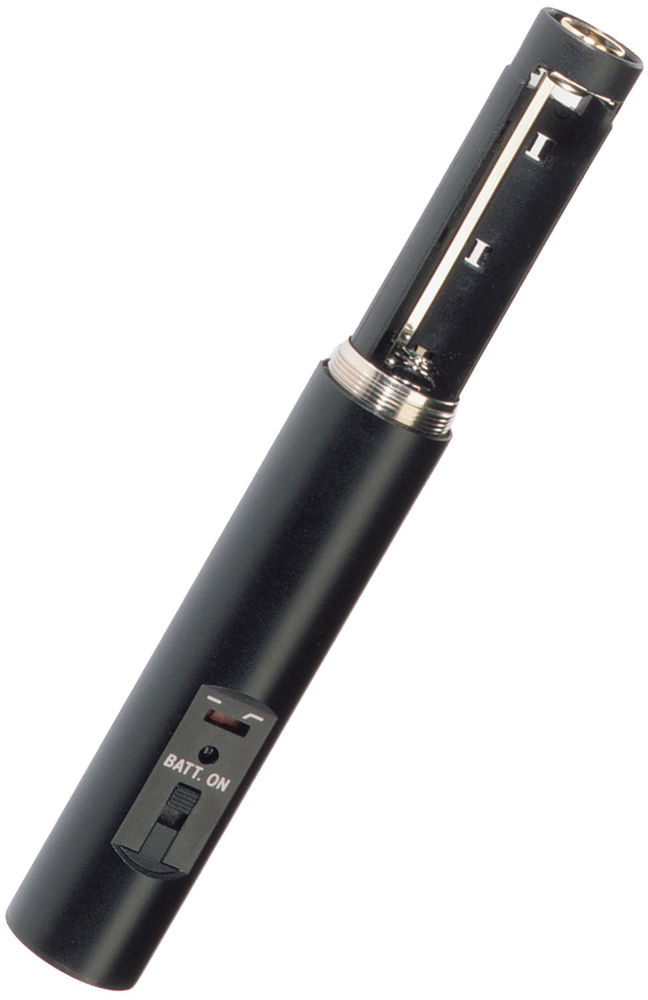

Sennheiser Universal Power Module with On/Off Switch - AA Battery or Phantom Power

ITEM #: K6 MFG #: K6

Primary Image
Free Shipping with $49 Minimum Order


Availability: Sold Out
iAvailability Description Popup


K6 - Overview

Powering module for battery/phantom powering with switchable roll-off filter and battery on/off switch with battery test. Suitable for ME 62 - ME 67 microphone modules and -60 versions of MKE microphones.

The K6 powering module is at the heart of Sennheiser's professional condenser microphone modular system and can be powered either by its internal 'AA' size 1.5 V battery or by 12 - 48 V phantom power. The K6 can be combined with different microphone modules to provide a wide variety of polar patterns. Matte black, anodised scratch-resistant finish.

  • Features:

    • Switchable bass roll-off filter protects against rumble, handling, pop, and wind noise
    • On/off switch with battery test position
    • High output, low noise
    • Transformerless balanced output on 3-pin XLR connector
    • Includes 1 K6 powering module

  • Specifications:

    • Frequency response: 30 - 20,000 Hz +/- 1 dB
      Transmission factor (1 kHz): 0 dB
      Nominal impedance: 200 ohms
      Min. terminating impedance: 1000 ohms
      Max. output voltage: 2 V (at 1 kHz)
      Power supply phantom: 12 - 48 V or 1.5 V battery
      Battery life: 150 hours, approximately
      Dimensions in mm: net: 22 x 94; gross: 22 x 155
      Weight: 45 g, approximately Dimensions and Weight in PackagingShipping Weight: 0 lbs Shipping Dimensions: 8 x 2 x 2 in

  • GTIN:

    0615104185715
