Blonder Tongue MICM-45S Module Sereo AV Modulator 45dB 54-600 MHz Channel 34

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

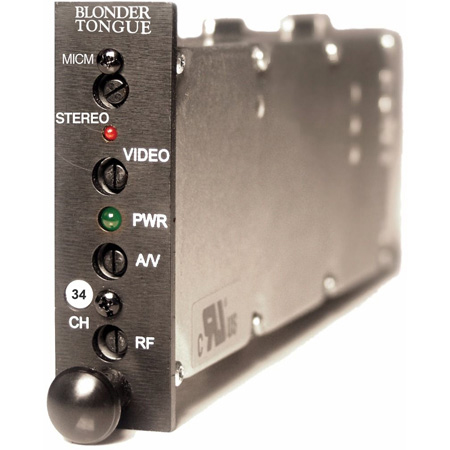

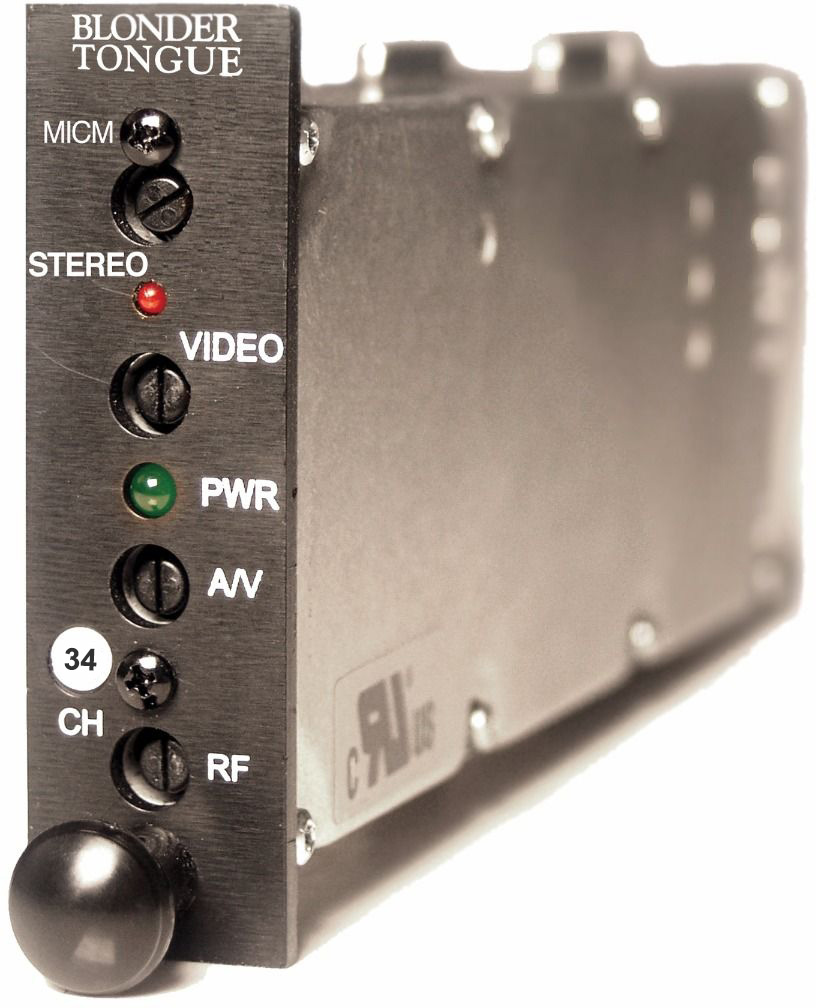

    Blonder Tongue MICM-45S Module Sereo AV Modulator 45dB 54-600 MHz Channel 34

    Item #: MICM-45S-34   •   MFG #: MICM-45S-34








    Channels:





    Share!





    Required Accessories

    The MICM-45S is a professional quality,channelized, heterodyne stereo A/V modulator providing a stereo audio and video modulated RF carrier on any single VHF channel. It provides modulated RF carrier output on any single VHF channel, including: broadcast TV (2-13), CATV (14-135). It is ideal for placing audio and video onto any unused VHF channel. Any standard audio/video source can be used, such as satellite receivers, television cameras, video tape recorders, or television demodulators. The MICM-45 utilizes SAW filtering with FCC group delay pre-distortion to provide true vestigial sideband selectivity which makes it perfect for use in adjacent channel systems.

    The MICM-45C takes base band audio and video and modulates these signals onto the desired output channel. The MICM-45S takes base band L/R audio and video and modulates these signals into the desired output channel.

    The heterodyne conversion process used in the unit employs a crystal referenced, PLL synthesized local oscillator. This guarantees rock solid, no-drift output for the life ofthe modulator. The MICM-45 meets FCCDocket 21006 aeronautical frequency off set requirements (±5 kHz video carrier accuracy).The modulator accepts standard polarity (sync negative) video in the range of 0.7 to 2.5 V pp. It has field defeatable audio pre-emphasis to provide stereo compatibility with any external BTSC stereo generator providing a composite stereo baseband output.


    • Features

      • 5-860 MHz Channelized Audio/Video Modulator
      • SAW Filtered to True Adjacent Channel Response
      • Die-Cast Chassis Offers Superior Protection Against Ingress or Egress
      • Front Panel Accessible Level Controls for Easy Set-Up and Adjustment
      • Integrated Stereo Encoder
