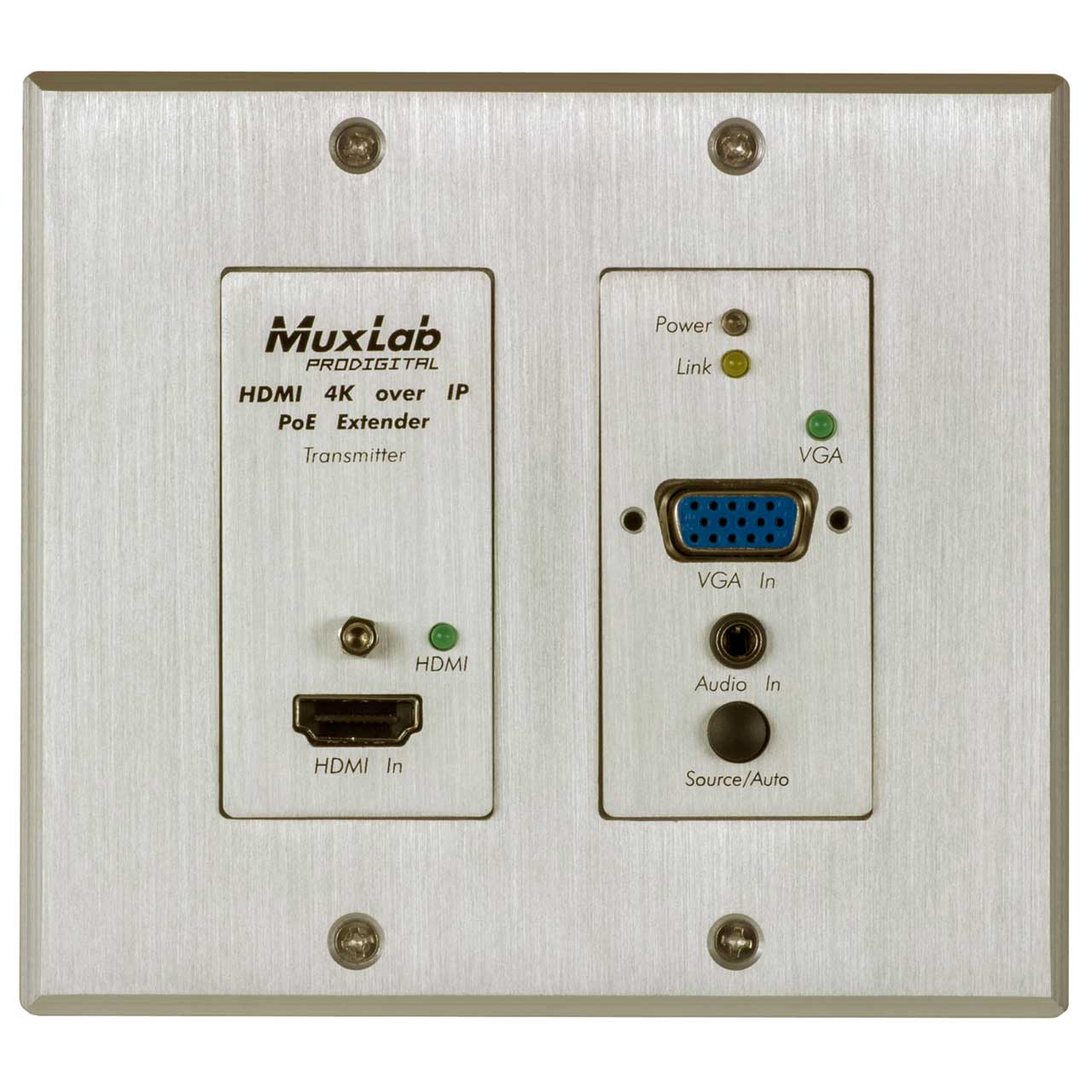

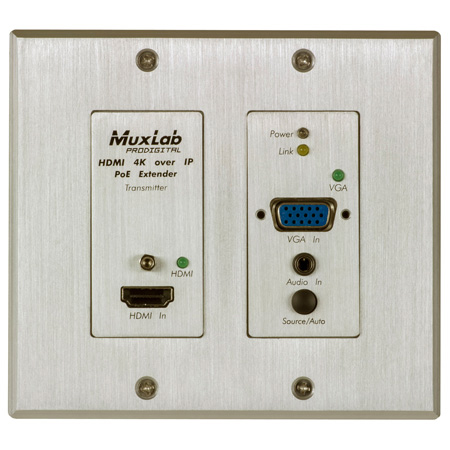

MuxLab 500773-TX 4K HDMI and VGA over IP Wall Plate with PoE - UHD4k

500773-TX - Overview

500773-TX - Overview

• Features:

  • Selectable HDMI and VGA inputs
  • HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
  • VGA 1920x1200 @ 60Hz, with 2CH Audio-In
  • HDCP 2.2 compliant
  • Remotely managed over IP & locally managed via push button
  • Auto and manual switching modes, with LED indicators

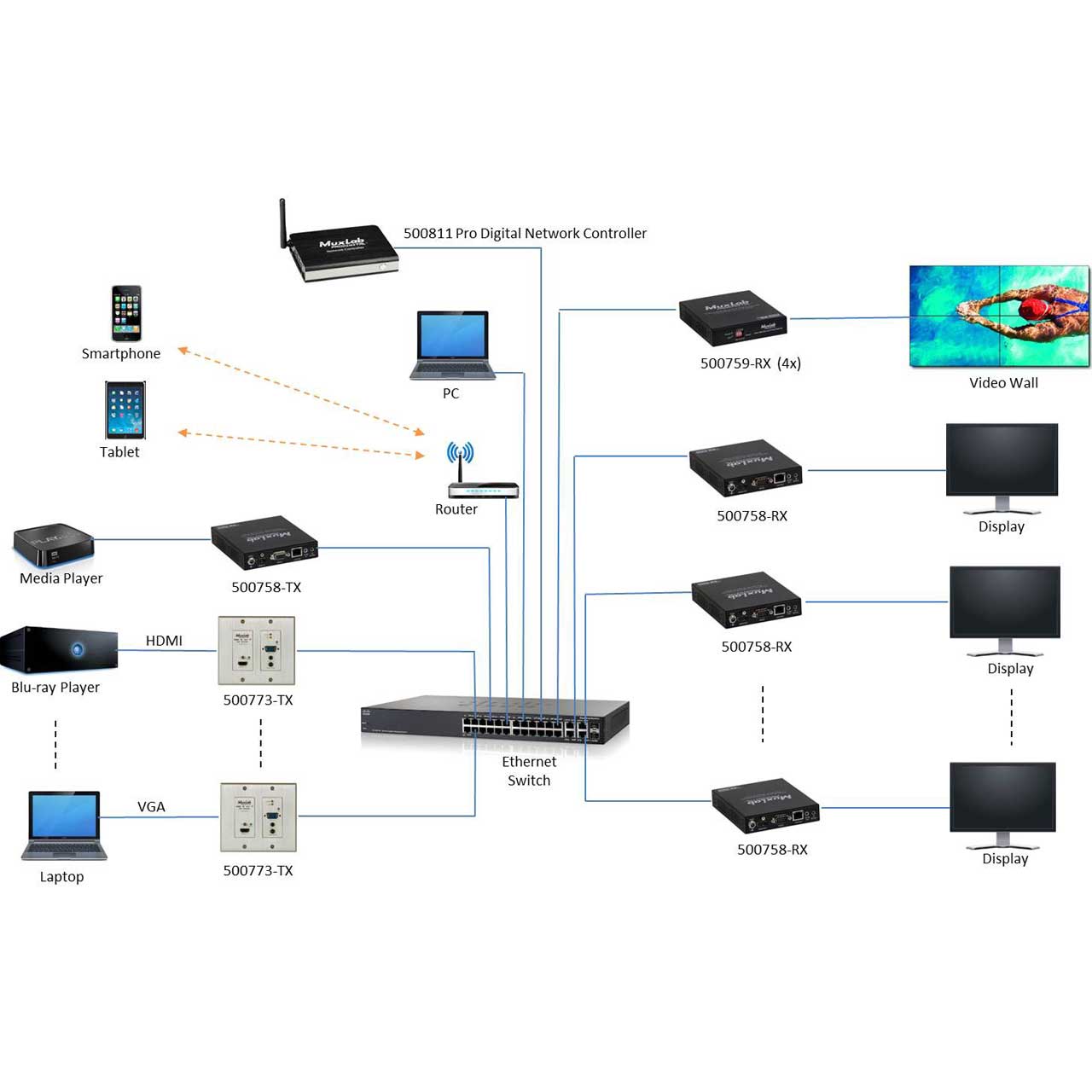

  • Compatible with 500758-RX and 500759-RX over IP Receivers
  • PoE powered
  • Managed via Pro Digital Network Controller (500811), MuxLab Control Smartphone & Tablet App & 3rd Party Control Apps


• Specifications:

  • Environment: HDMI 2.0b
  • Devices: TVs, monitors, projectors supporting HDMI
  • Signal Protocal/Standard: HDMI 2.0b and HDCP 2.2
  • Video Resolution HDMI: Up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
  • VGA: Up to 1920 x 1200 @ 60Hz
  • Video Bandwidth: 300MHz
  • Audio Bandwidth: 20Hz to 20KHz (2 CH)
  • Network Bandwidth: 500Mbps (Typ), up to 800Mbps (Max)
  • Network Requirement: 1G Network via PoE Ethernet Switch supporting IGMP and Jumbo Frames
  • Network Protocol: Multicast
  • Compression: JPEG2000
  • Latency: 16.7ms typ. (1 Frame), up to 33.4ms max. (2 frames )
  • PoE: IEEE 802.3af
  • Power Consumption: 3W
  • Temperature:
  • Operating: 32° to 104°F (0° to 40°C)
  • Storage: -4° to 185°F (-20° to 85°C)
  • Humidity: Up to 95% non-condensing
  • Wall Plate Size: 2 Gang
  • Dimensions: 5 x 4.53 x 1.65" (127 x 115 x 42mm)
  • Weight: 1.17Lbs (0.53kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
  • Maximum Distance Cat5e/6: 330ft (100m) from Ethernet Switch. Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

    Connectors
  • (1) HDMI input connector for Audio/Video
  • (1) VGA input 15-Pin DSUB connector for Video
  • (1) 3.5mm input jack for 2CH Audio
  • (1) RJ45S for Ethernet connection
  • (1) 2.1mm locking power connector, for optional use since this device supports PoE (Pd)

    MRJ45 Pin Configuration
  • Pin 1 (R) Pin 2 (T)
  • Pin 3 (R) Pin 6 (T)
  • Pin 4 (R) Pin 5 (T)
  • Pin 7 (R) Pin 8 (T)

    Power Source
  • This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.


• Warranty:

  • 3 years


• GTIN:

  0627699907733
