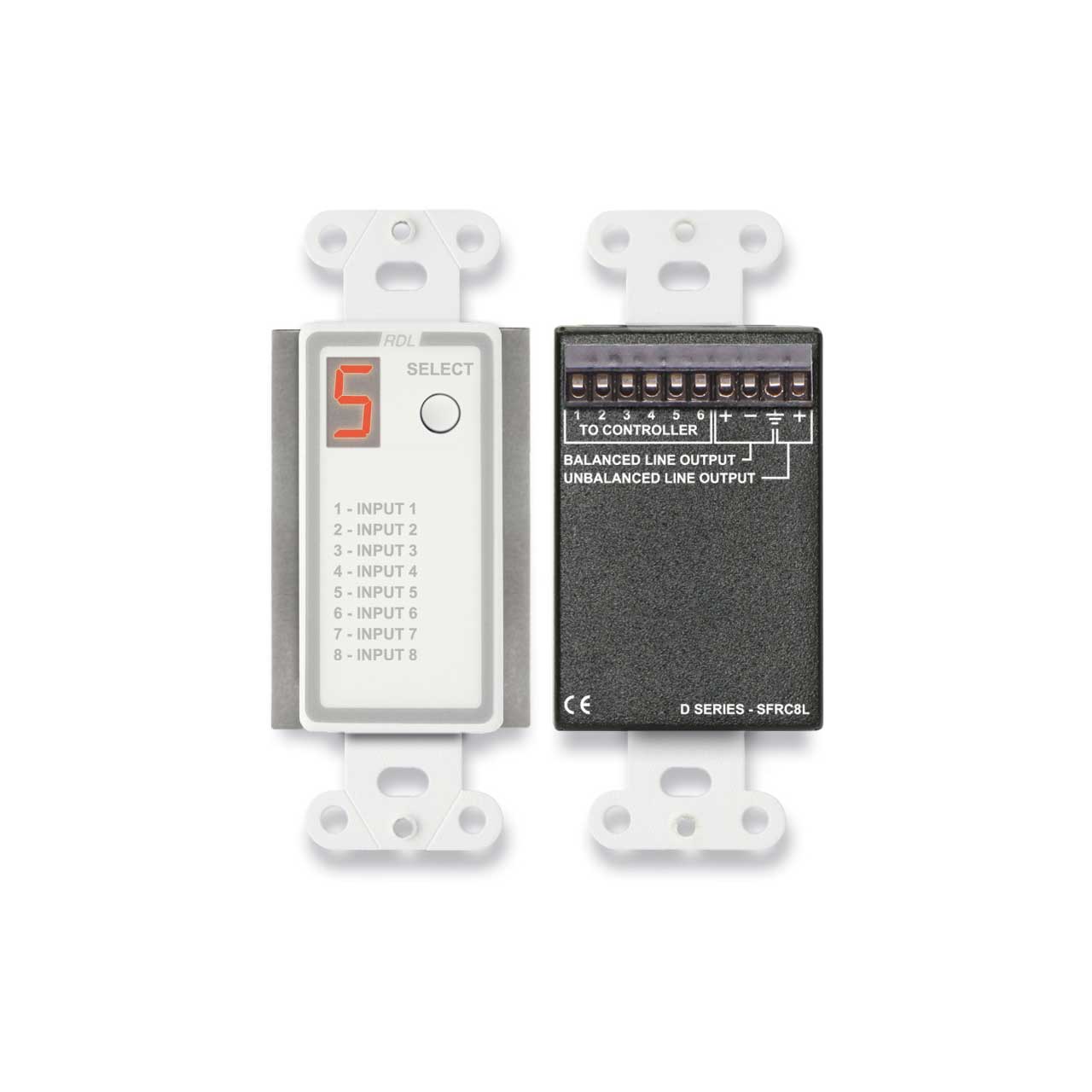

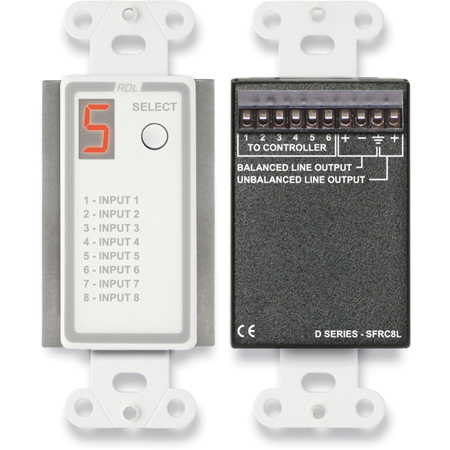

RDL D-SFRC8L Audio Selector for SourceFlex Distributed Audio System

D-SFRC8L - Overview

• Features:

  • Single Room Listening Station with In-Wall Controls
  • Source Selection Pushbutton
  • Selection From up to 8 Audio Sources
  • Line-Level Audio Output
  • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
  • Compatible with Other RDL Wall Plates and Controls
  • Ideal for Office Distributed Sound Systems with Music and Paging


• Specifications:

  • Input: 10-position detachable terminal block
  • Display: 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
  • Selector: Momentary button channel SELECT
  • Frequency Response: 20 Hz to 20 kHz (±0.1 dB)
  • THD+N
  • 0.1% (20 Hz to 20 kHz)
  • Noise: < -85 dB (Below +4 dBu)
  • Control Signals: dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
  • LineOutputs (2): +4 dBu balanced, -10 dBV unbalanced, nominalPower Requirement: 24 Vdc @ 30 mA, Supplied from SourceFlex controllerAmbient Operating Environment: 0° C to 50° C Maximum; 20° C RecommendedDimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
  • Package Type: Cardboard Box
  • Package Dimensions: 3.625 x 4.625 x 2.125 in.
  • Shipping Weight: .44 lbs.
  • WEEE weight: 0.305 lbs.
  • Tariff code: 8518.40.2000


• GTIN:

  0813721016010
