Clark CD7506D 3D-HD/SDI 4.5GHz Camera Cable - Per Ft.

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Clark CD7506D 3D-HD/SDI 4.5GHz Camera Cable - Per Ft.

    Manufacturer: Clark Wire & Cable

    Item #: CD7506D-FT-SCRAP   •   MFG #: CD7506D-FT-SCRAP



    List Price:$1.89
    Our Price:$1.69

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!

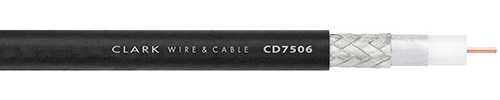

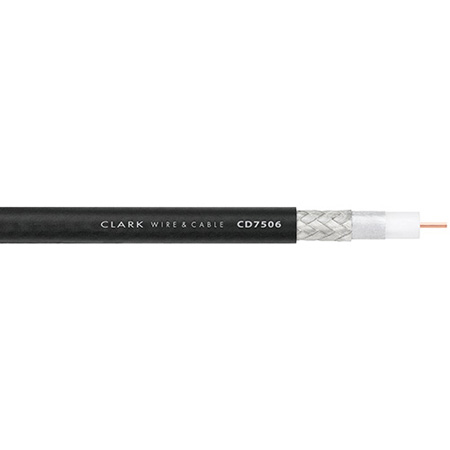

      The CD7506D is a precision, two-channel RG6 HD/SDI coax snake for 3D camera applications. Built for studio or remote applications, the CD7506D features a round TPE jacket that is both flexible and abrasion resistant. Each of the CD series RG6 coax elements feature precision 75 Ohm impedances and 4.5 GHz bandwidths for the latest SMPTE 292M and 424M digital video standards. Also built for easy termination, the CD series coax elements have easy-to-strip jackets and Clark's unique Kiss Bond bonded foil shield that can either be left on or removed during connector termination.


      • Features

        • Two-Channel RG6 Coax Snake
        • 4.5 GHz Bandwidth
        • Gas-Injected Dielectric
        • SMPTE 259, 292 & 424 Compliant
        • Kiss-Bond Foil & Braid Shield
        • Flexible & Abrasion Resistant

      • Specifications

        • Center Conductor: 18 AWG Solid BC .040" O.D.
        • Dielectric: Gas-Injected Foam PE .180" OD
        • Shield: 100% Aluminum Foil, 95% TC Braid
        • Jacket Low Pressure, Easy Strip PVC
        • Overall Diameter .272"

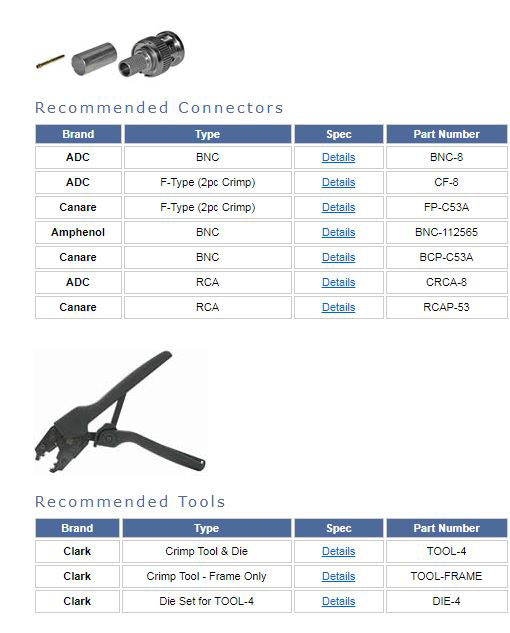

      Add Accessories for your CD7506D-FT-SCRAP:
