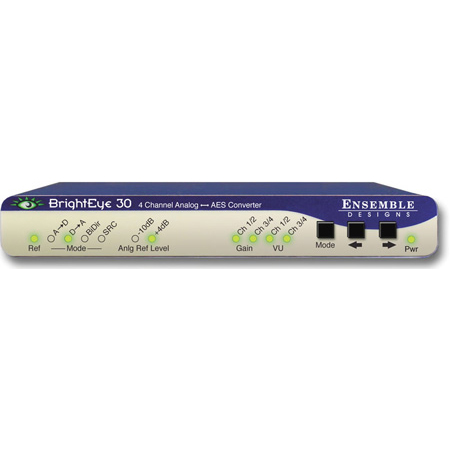

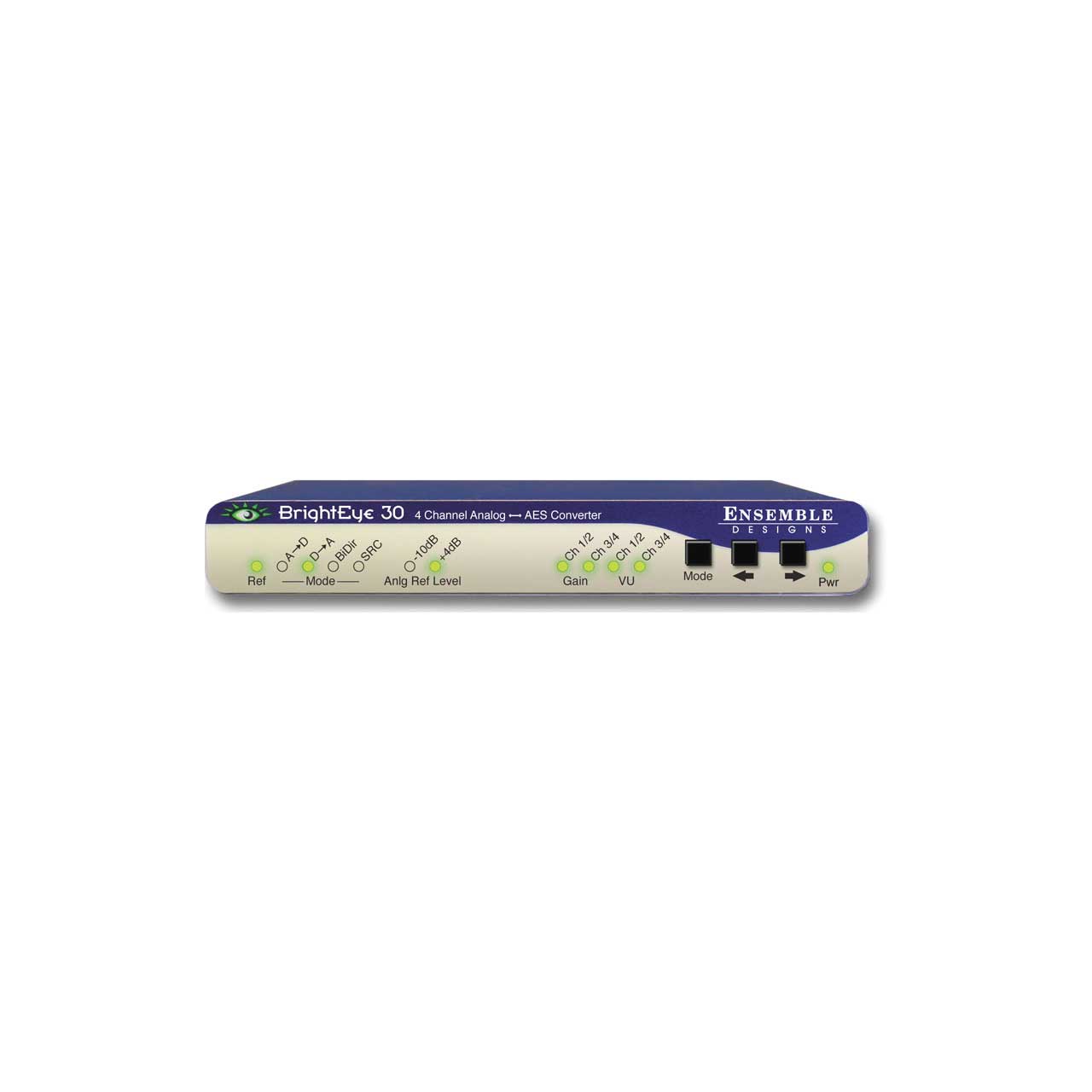

Ensemble Designs BrightEye 30 Bi-directional Audio ADC and DAC
  • Ensemble Designs BrightEye 30 Bi-directional Audio ADC and DAC
  • Ensemble Designs BrightEye 30 Bi-directional Audio ADC and DAC

Questions? Ask a Markertek Expert:
800-522-2025 Email

Ensemble Designs BrightEye 30 Bi-directional Audio ADC and DAC

Manufacturer: Ensemble Designs

Item #: ENDE-BE30   •   MFG #: BE30



List Price:$1,050.00
Our Price:$997.50

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





BrightEye 30 is a flexible audio converter that can be a two channel, bi-directional ADC and DAC, or it can be configured as a four channel converter. Perfect in desktop, post and broadcast applications, 24 bit processing ensures beautiful audio.

As a bi-directional converter, two channels of analog audio are converted to AES digital audio and at the same time an AES stream is converted to two channels of analog.

Alternately, the unit can be configured as a four channel AES to analog converter or a four channel analog to AES converter.

BrightEye 30 also serves as a sample rate converter. For example, a digital 44.1 KHz signal from a CD player can be fed to the input and a digital AES3id, 48 KHz signal synchronous to the reference input will be output.

Audio mixing, level adjustments, and channel shuffling are accessed through BrightEye PC. Optional audio delay capability is available upon request. A variety of audio connectors and adapters are available for integrating BrightEye 30 to any type of system.

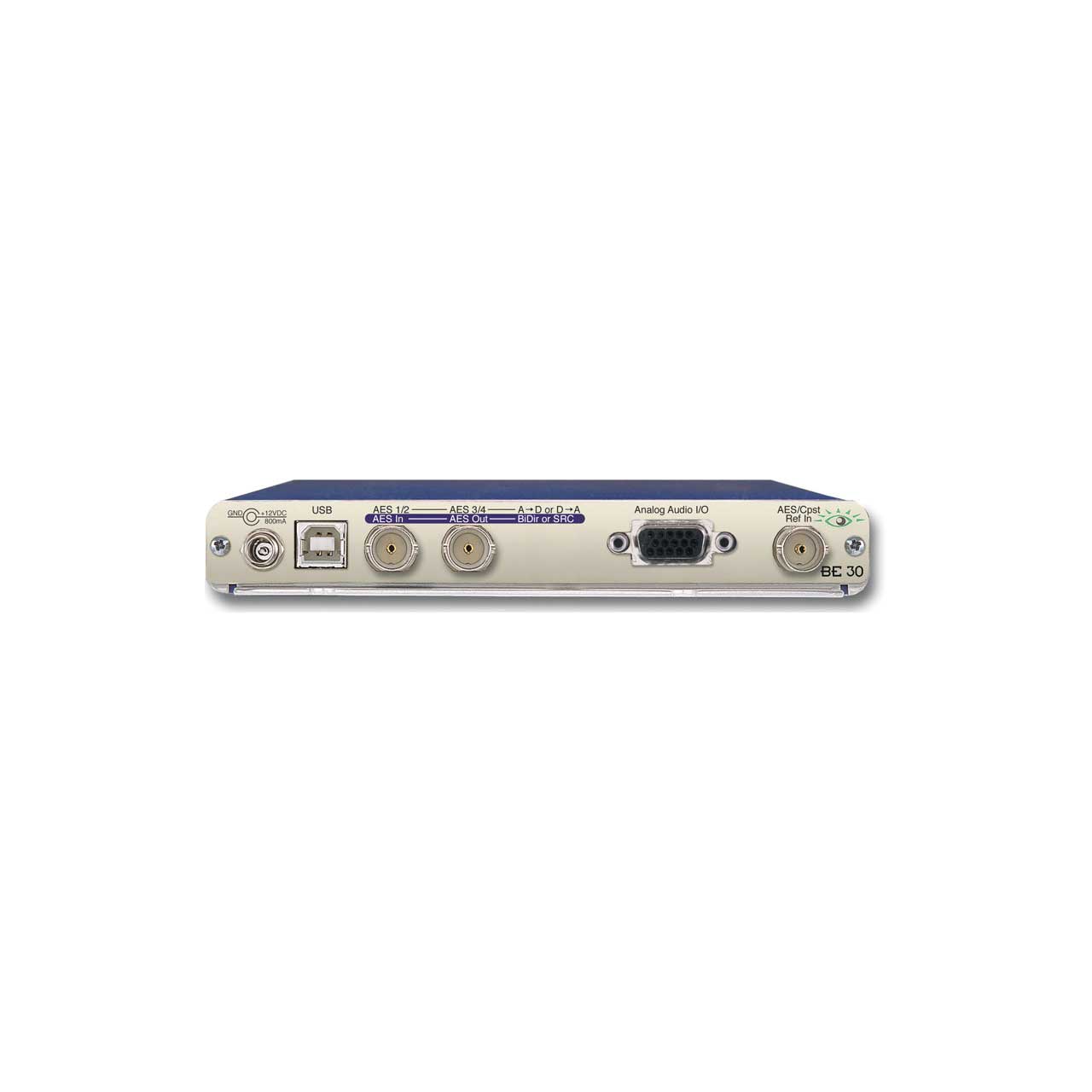

A reference input is provided which allows digital outputs to be synchronized to either a PAL or NTSC video signal or AES reference.

Power supply is included.


  • Features

    • 2 or 4 channel audio converter
    • Analog and digital inputs
    • Analog and digital outputs
    • Bidirectional ADC/DAC
    • Sample rate converter

  • Specifications

    • Analog Audio Inputs
    • Number Four (selectable as inputs or outputs)
    • Type Balanced
    • Impedance >15K U
    • Maximum Input Level 24 dBu
    • CMRR >60 dB, 20 Hz to 10 KHz
    • Quantization 24 bits, 128 x oversampled
    • Sample Rate 48 KHz
    • Reference Level -10 dBu or +4 dBu
    • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
    • Crosstalk <106 dB
    • Dynamic Range >106 dB

      AES/EBU Digital Inputs
    • Number Two (total of four channels)
    • (selectable as inputs or outputs)
    • Type AES3id
    • Connector Coaxial, 75 U
    • Bit Depth 20 and 24 Bit
    • Sample Rate 30 KHz to 96 KHz
    • (Sample Rate Converted
    • internally to 48 KHz)
    • Reference Level -18 or -20 dBFS (selectable)
    • AC-3, Dolby-E Supported when inputs are synchronous

      Analog Audio Outputs
    • Number Four (selectable as inputs or outputs)
    • Type Balanced, transformerless
    • Impedance 30 U
    • Maximum Output Level 24 dBu
    • Resolution 24 bits, 128 x oversampled
    • Reference Level -10 dBu or +4 dBu
    • Frequency Response ±0.1 dB, 20 Hz to 20 KHz
    • Crosstalk <106 dB
    • Dynamic Range >106 dB

      AES/EBU Digital Outputs
    • Number Two (total of four channels)
    • (selectable as inputs or outputs)
    • Type AES3id
    • Connector Coaxial, 75 U
    • Bit Depth 24 Bit
    • Sample Rate 48 KHz
    • Synchronous to video output
    • Reference Level -18 or -20 dBFS (selectable)

      General Specifications
    • Size 5.63" W x 0.8" H x 5.98" D
    • (143 mm x 21 mm x 152 mm)
    • including connectors and flange
    • Weight 1 lb
    • Power 12 volts, 2 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95%, non-condensing
    • Altitude 0 to 10,000 ft.
