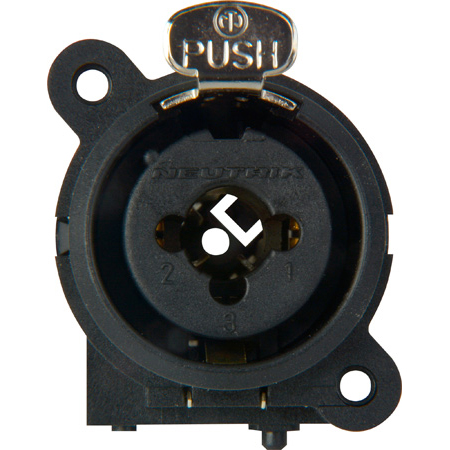

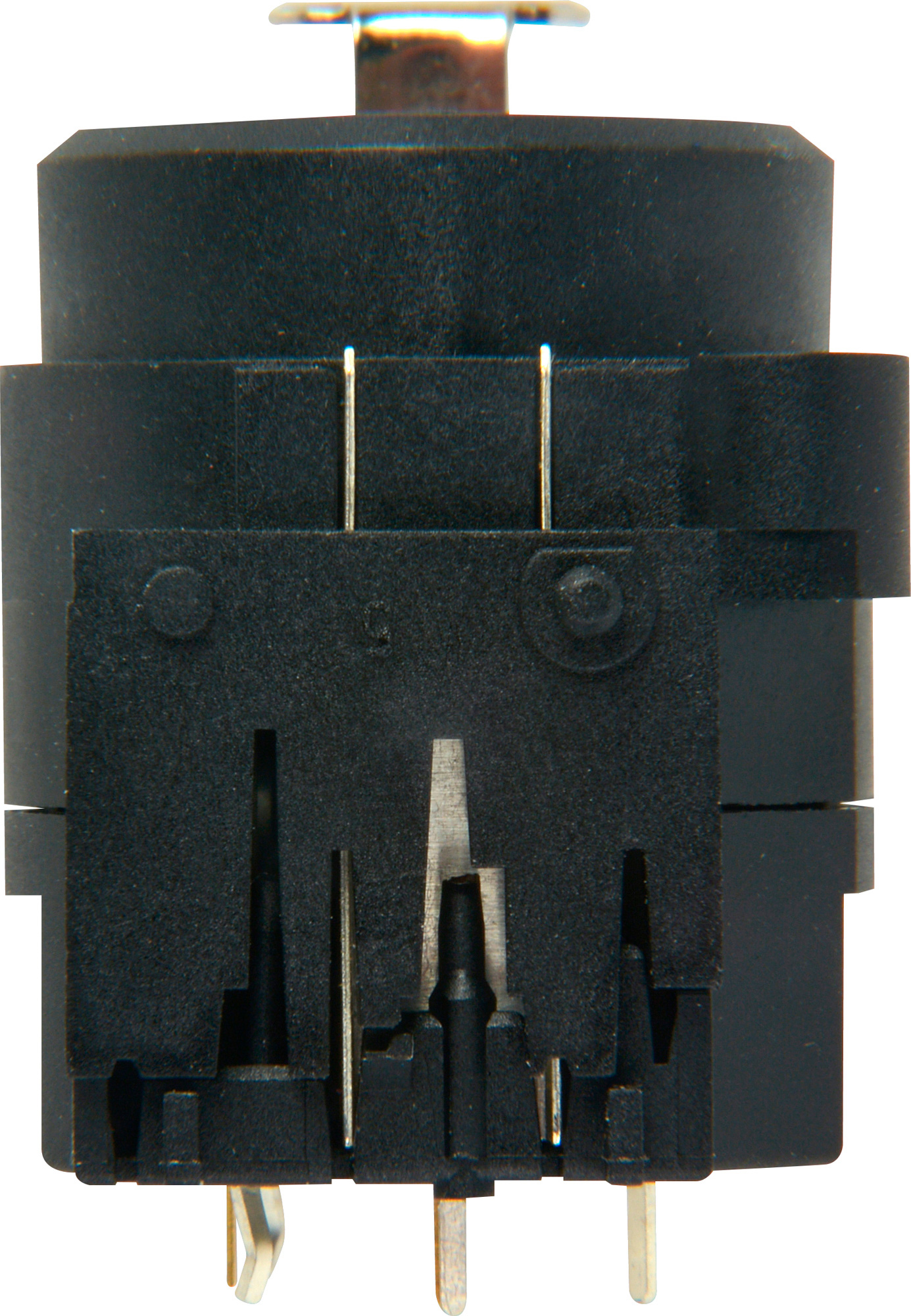

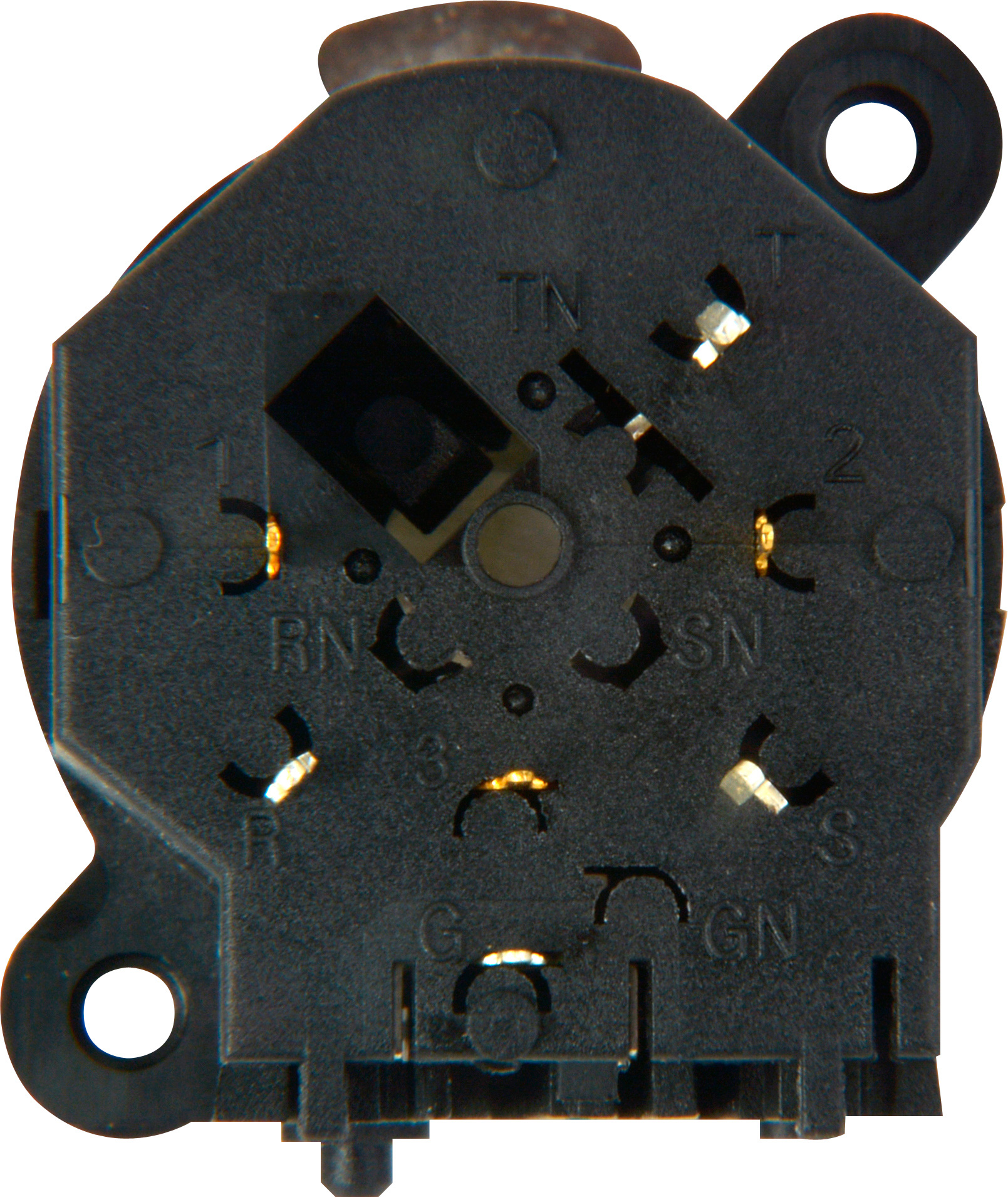

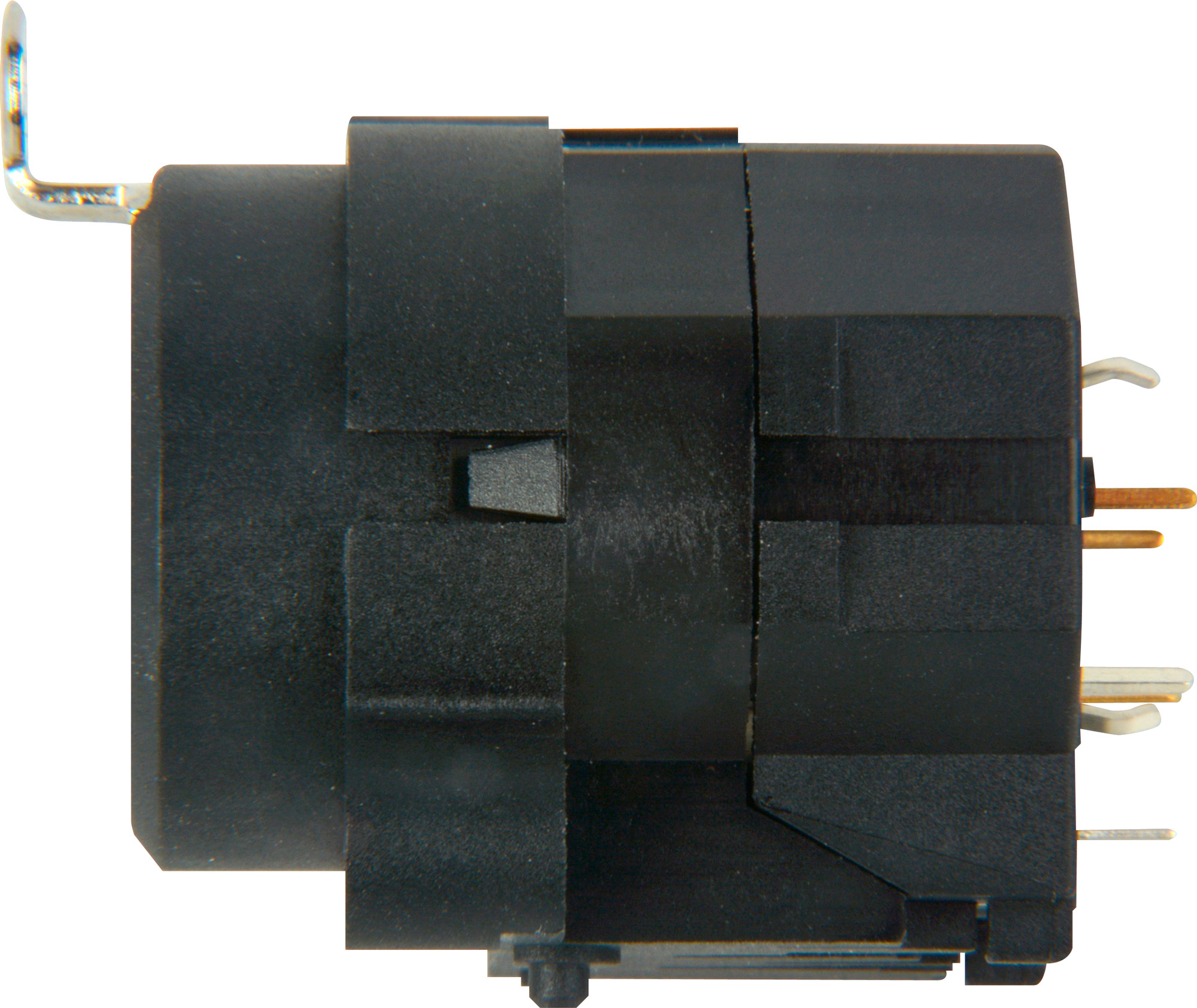

Neutrik NCJ6FI-V Combo 3-Pin Female XLR / 1/4 Inch Stereo Vertical PCB Mount

ITEM #: NCJ6FI-V MFG #: NCJ6FI-V

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NCJ6FI-V

NCJ6FI-V - Overview

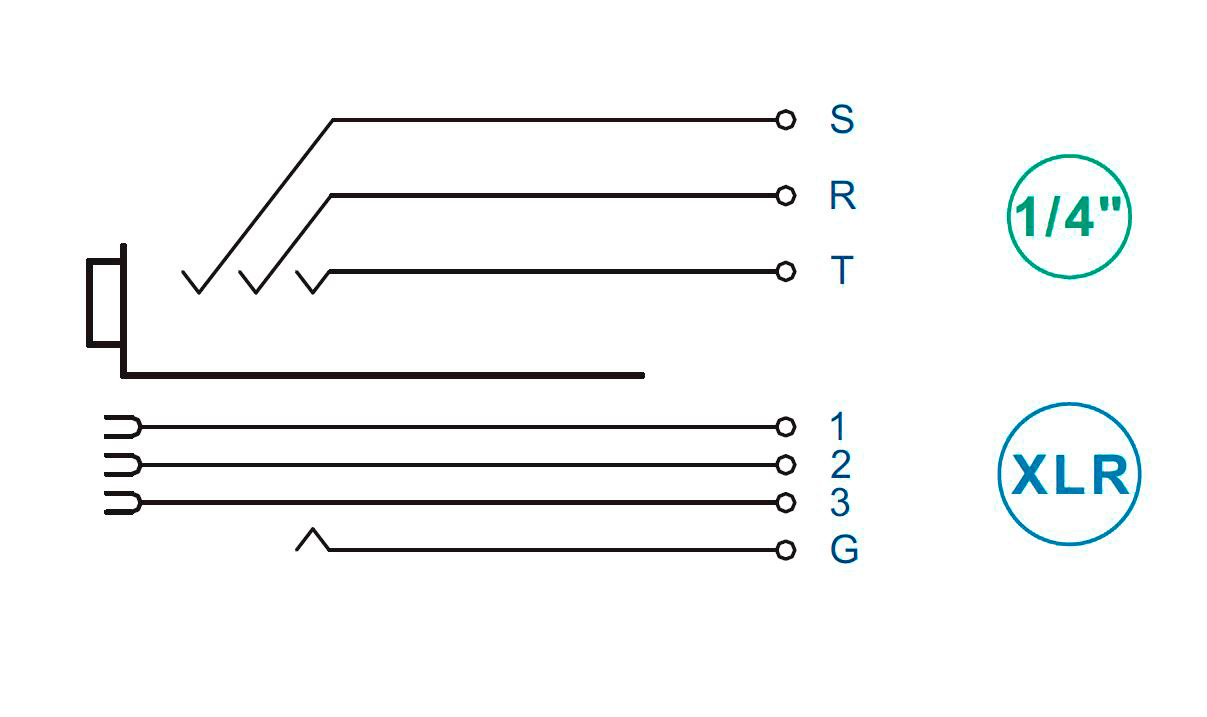

3 pole XLR female receptacle with 1/4" stereo jack without switching contact, vertical PCB mount. XLR / jack hybrid chassis connector combining 3 pole XLR receptacle and 1/4" jack.
A Note about the Neutrik Combo Series Connectors!

Neutrik has developed the first XLR / 1/4" jack hybrid panel mount connector combining a 3 pole XLR receptacle and mono or stereo 1/4" phone jack in one XLR housing. A space saving combination of 2 connectors in one plastic housing. Available in nonswitching and normalling versions with horizontal or vertical pcb mount or soldering termination.
Many Pro audio devices have two input connectors (balanced XLR and an unbalanced 1/4" jack). But in almost all cases only one input is used at a time. The Combo reduces panel space, costs and simplifies PCB (Printed Circuit Board) design. The abbrevations below show up in the part# and explain what type of connector it is.

Termination
V = vertical PCB (Printed Circuit Board) mount, straight pins.
H = horizontal PCB mount, angled pins.
S = Solder contacts.

PLEASE NOTE! "S" is the most widely used for standard cable soldering. The "V" and "H" are solder type connectors as well but the connections are designed for PCB use and are more suited for OEM use (manufacturing).

Locking mechanism
-0 = no latch, retention spring
no suffix = Latch lock

Grounding
Separate ground contact to mating connector shell and front panel, including switching ground version

Mounting
Rear panel mount

Panel fastening
Self-tapping PLASTITE screw with thread 2.9 x1.06 and of tri-rondular configuration (A-screw)
(PLASTITE is a registered trademark of SFS Unimarket)

Panel thickness
1 - 3 mm

  • Features:

    • Combined XLR receptacle and 1/4" phone jack
    • Balanced or line inputs in one XLR shell
    • Saves rack space by combining 2 connectors in one housing
    • Very low conductor capacitance, therefore suitable for digital audio

  • Specifications:

    • Connection Type: Combo
    • Gender: female
    • Contact resistance: < 10 m Ohm (inner) (XLR)
    • Comment: < 20
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 G Ohm (initial)
    • Rated current per contact: 7,5 A (XLR)
    • Rated current per contact: 7,5 A (Jack)
    • Rated voltage: 50 V
    • Insertion force: < 25 N
    • Withdrawal force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Panel thickness: max. 7 mm 0.27"
    • Mounting direction: Rear
    • Contact plating: 0.2 æm Au hard alloy over 2 æm Ni
    • Contacts: Bronze (CuSn6)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Locking element: Steel Ck67
    • Temperature range: -30 Degrees C to +80 Degrees C
