NTI DL1 Digilyzer Digital Audio Analyzer
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

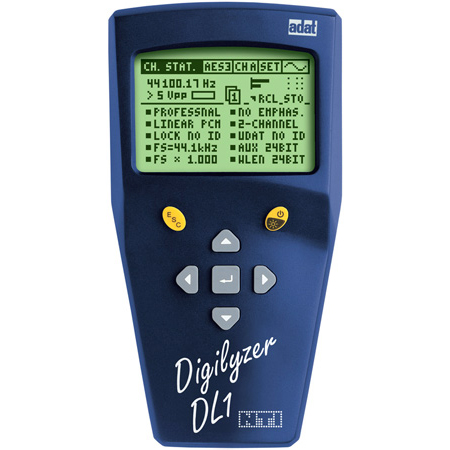

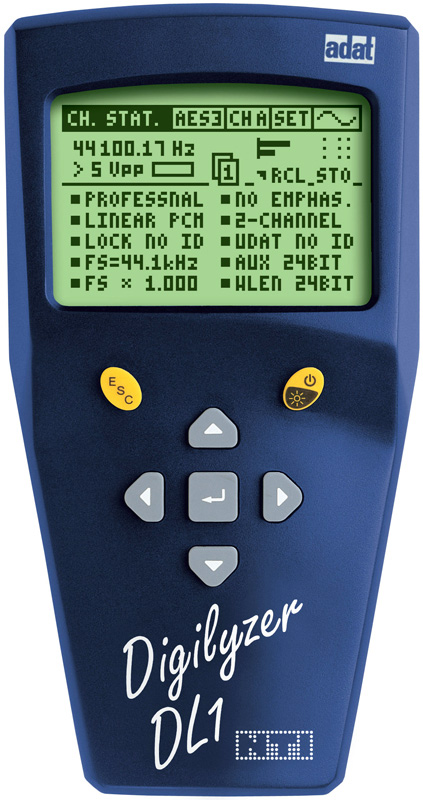

    NTI DL1 Digilyzer Digital Audio Analyzer

    Manufacturer: NTI Americas Inc.

    Item #: NEU-DIGILYZER   •   MFG #: 600 000 200


    List Price:$1,599.00
    Our Price:$1,549.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.
    • Special Order Item: non-cancelable, non-returnable, non-refundable.



    The Digilyzer DL1 is a powerful but easy to use digital audio analyzer. Testing, monitoring and troubleshooting digital audio interfaces is fast and straight forward using this compact tool. Virtually all digital audio formats including ADAT and sampling frequencies up to 96 kHz are supported.

    With features like the DL1 unique integrity check, the integrated speaker, event & data logging, audio lens and many more digital audio becomes transparent and easy to debug.

    • Features

      • Channel Status
      • The complete channel status information is displayed in an easy-to-understand plain text format - according to the latest standards. Carrier frequency and level is available on nearly every screen.
        Bit Statistics
      • Measuring the audio resolution, finding stuck-bit failures and monitoring the activity of the user data bit are some important applications of the bit statistics function. Basic channel status information is visible on the bottom line.
        Event Logger
      • Intermittent faults are usually hard to find. The event logger tracks every change of the input signal (carrier, channel status or audio related) and allows long term checking and highlighting of possible problems.
        Integrity Check
      • When receiving incorrect Channel Status information the behavior of a device could be unpredictable. The Integrity Check compares measured parameters with the indicated status and warns if any discrepancies are found.
        Audio Monitoring
      • Beyond all the measurement power, the built in converter & speaker is one of the most important tools of the DL1. Featuring high quality headphone output, automatic gain control and monitoring of analog input signals.
      • The auto trigger and auto ranging scope gives a detailed view of the input audio signal in the time domain. DC offset problems and polarity issues are visible. Also ideal for understanding sampling peculiarities.
        THD+N, Level, Frequency
      • Beside Level Peak measurements, the DL1 is equipped with RMS measurement techniques including THD+N and high pass filters, allowing easy verification and debugging of dual domain devices like AD converters.
        Frequency Sweep
      • The DL1 automatically triggers to a sweep sequence with any step width and records the frequency response. Any stepped sweep may be used as signal source. After capture all sweep data is available.
      • The combined vu + PPM meter (vu = volume unit) with numerical maximum hold and over indicators helps identifying leveling problems and clipping. Reference grade performance with up to 40 screen updates per second.
