Palmer Audio PPB20 Press Patch Box 20-channel

ITEM #: PLM-PPB20 MFG #: PPB20

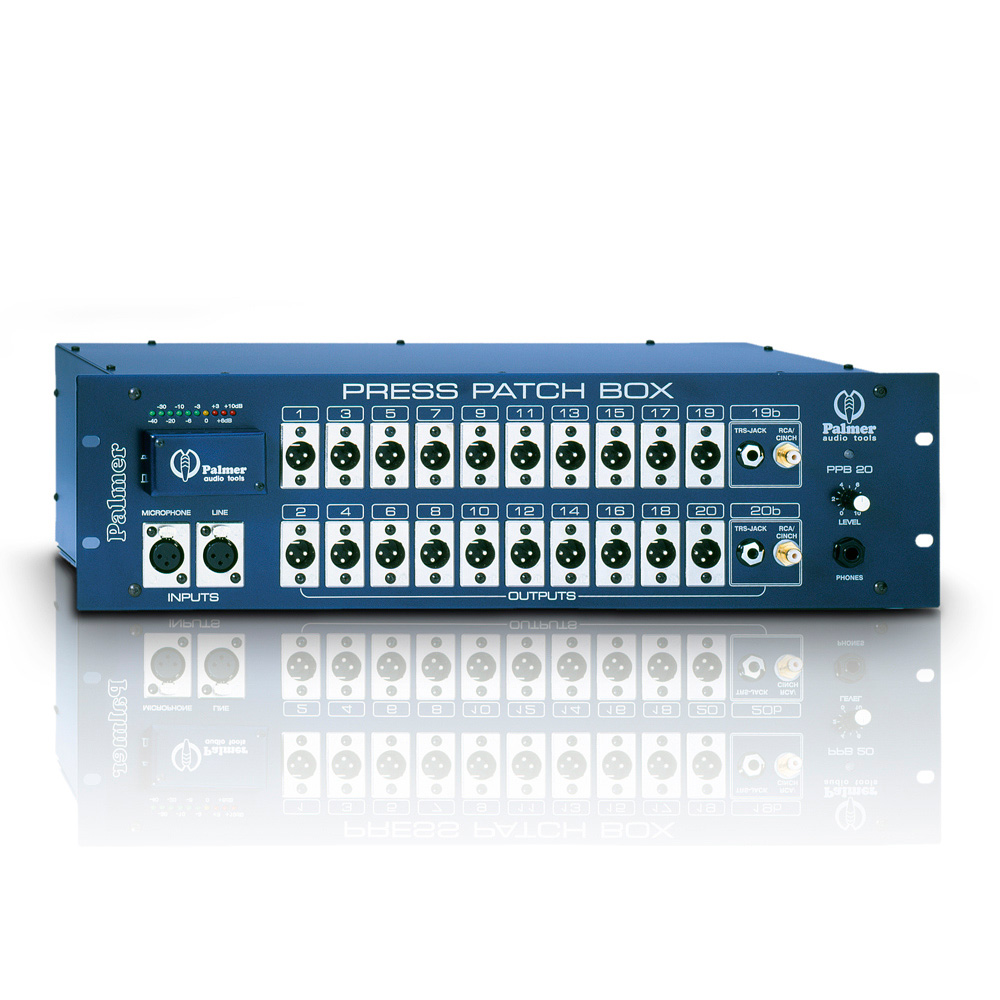

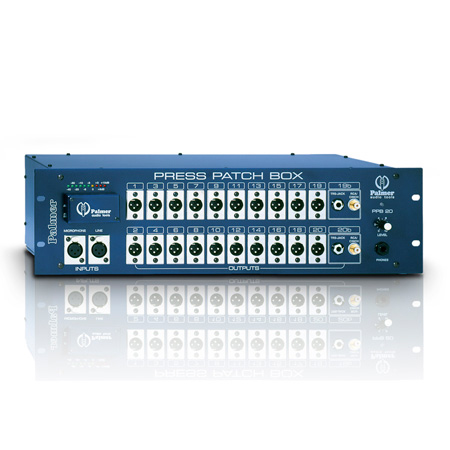

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PLM-PPB20

PPB20 - Overview

The Press Patch Box is a special kind of audio signal distributor intended for use at press conferences. It features separate inputs for microphone and line signals (from a mixing console output).

  • Features:

    • 20 Channel press patch box + All inputs and outputs are balanced transformer isolated + Separate inputs for mic and line signals


  • Specifications:

    • Product type: splitter
    • Type: mic & line split
    • split type: 1 in 20
    • Channels: 1
    • Inputs: 1
    • input connectors: XLR
    • max. input level: Mic: 0 dBu, Line: +20 dB
    • adjustable input: yes
    • number of split-outputs per canal: 20
    • max. output level: + 20 dB
    • output connectors: XLR, RCA, 6.3 mm Jack
    • adjustable output: no
    • transformer isolated outputs: yes
    • controls: phones level, ground lift, input gain, attenuator, mic/line switch
    • Display: Power, input level
    • power supply: integrated (115 / 230 V)
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated


  • GTIN:

    4049521049545
