RDL D-AVMB2 Audio and Video Monitor BNC Panels

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL D-AVMB2 Audio and Video Monitor BNC Panels

    Manufacturer: Radio Design Labs

    Item #: RDL-D-AVMB2   •   MFG #: D-AVMB2



    List Price:$87.09
    Our Price:$64.55

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!

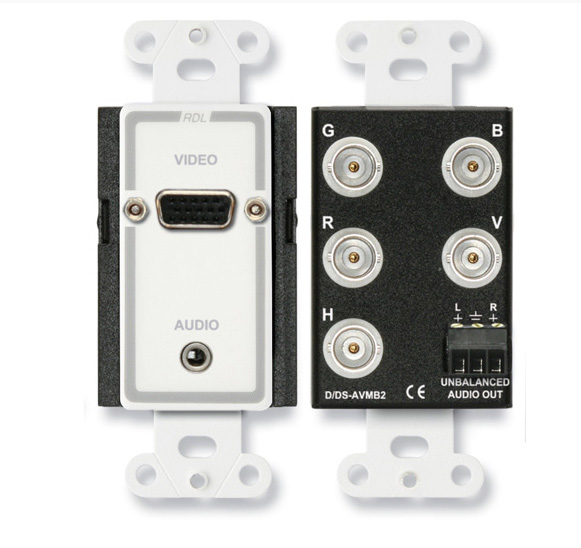

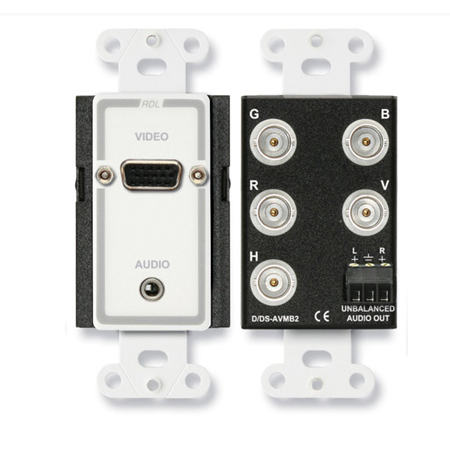

      The D/S-AVMB2 is the ideal choice in installations requiring a wall-mounted audio and video monitor input or output plate for computers, monitors and projectors. The panel is typically installed as an audio/video input plate, but may equally be used as an output jack panel.The front panel features a standard video monitor connector. Video components, video sync and their respective ground returns are separated to feed five BNC jacks on the rear panel. The BNC jacks are isolated from the module chassis ground so the appropriate signal grounds pass through without adding a video ground loop at the panel.The front panel features a single stereo mini-jack, intended for stereo consumer line-level audio sources. The left and right signal inputs are fed to a rear-panel detachable terminal block. The audio signals are unbalanced and are intended for short wiring runs where balanced lines are not required.


      • Features

        • Stereo Audio Input to Stereo Audio Output
        • Stereo Input on Mini-Jack
        • Unbalanced Audio Output on Detachable Terminal Block
        • Video Monitor Input on Standard Video Connector
        • Rear-Panel Video Outputs (R,G,B,H,V) on BNC Jacks
        • BNC Jacks are Isolated from Chassis Ground
        • Available in RDL White/Gray

      • Specifications

        • Audio Input connector: Mini-jack 3.5 mm (Stereo)Video Input connector: Female DB15
        • Audio output connector: Detachable terminal block (Left and Right unbalanced audio)
        • Video output connectors (5): BNC (R: Red; G: Green; B: Blue; H: Horizontal Sync; V: Vertical Sync)Dimensions: Height: 4.13 in. 10.49 cm
          Width: 1.7 in. 4.32 cm
          Depth: 1.4 in. 3.56 cm
        • Mounting Box MinimumDimensions: Width: 1.80 in. 4.57 cm
          Depth: 0.15 in. (0.38 cm) plus the depth of the installer-provided BNC connectorsPackage Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.39 lbs.
        • WEEE weight: 0.245 lbs.
        • Tariff code: 8536.69.4030
