Radio Design Labs D-SH1M Stereo Headphone Amplifier
  • Radio Design Labs D-SH1M Stereo Headphone Amplifier
  • Radio Design Labs D-SH1M Stereo Headphone Amplifier

Questions? Ask a Markertek Expert:
800-522-2025 Email

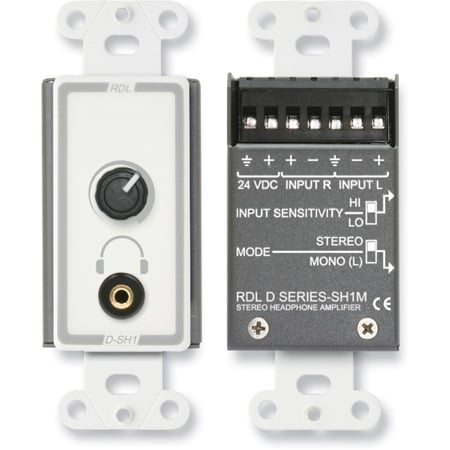

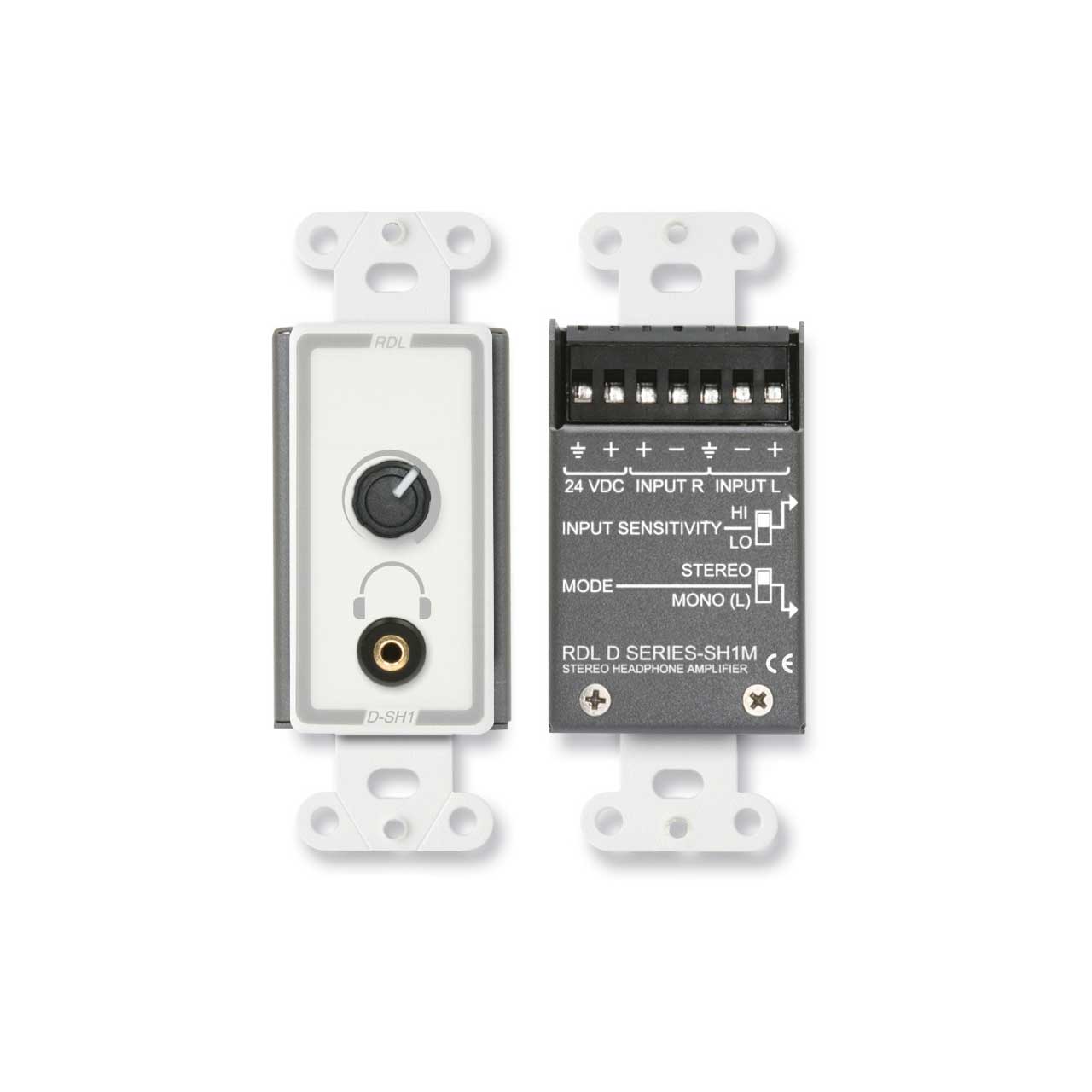

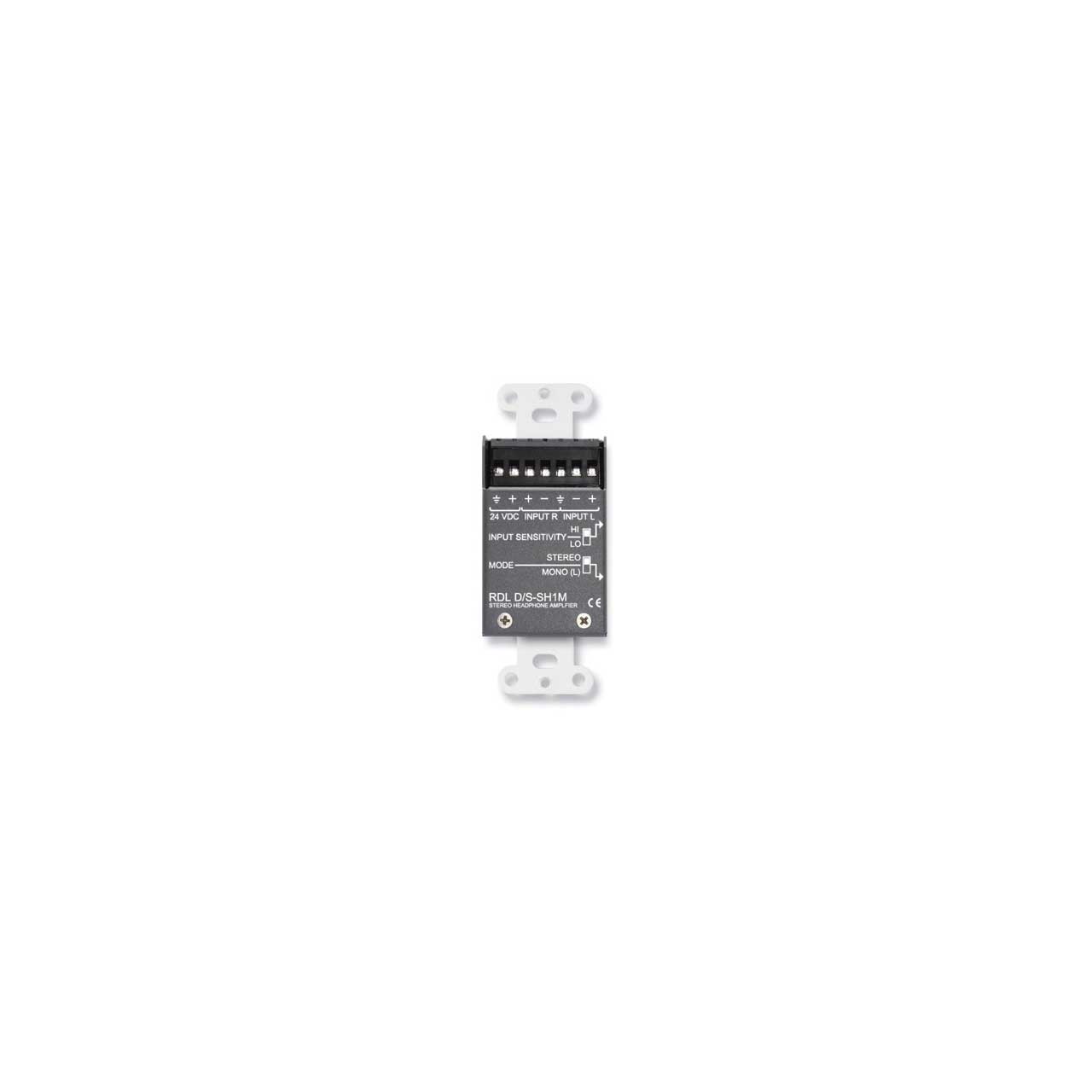

Radio Design Labs D-SH1M Stereo Headphone Amplifier

Manufacturer: Radio Design Labs

Item #: RDL-D-SH1M   •   MFG #: D-SH1M



List Price:$190.09
Our Price:$134.95

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    The D/DS-SH1M is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. It is ideally suited to applications as diverse as language translation, museums, interview studios and music stores. The -SH1 is a dual channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mode switch selects between stereo and mono operation. In the mono position, the left input is used to drive both output channels. When the module is used in a monaural system, only the left channel input must be wired. The front panel level control is a long life potentiometer controlling matched VCAs. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 50 mW into either high or low impedance headphones. Module operation is from a 24 Vdc ground referenced power supply.


    • Features

      • Integral Long-Life VCA Stereo Level Control
      • Balanced or Unbalanced Inputs
      • Switch-Selectable Input Sensitivity
      • Switch-Selectable Mono (Left) or Stereo Operation
      • Amplifier to Drive High or Low Impedance Headsets
      • Output: Mini-Jack
