RDL DB-J1 Microphone Input Assembly

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL DB-J1 Microphone Input Assembly

    Manufacturer: Radio Design Labs

    Item #: RDL-DB-J1   •   MFG #: DB-J1




    Share!

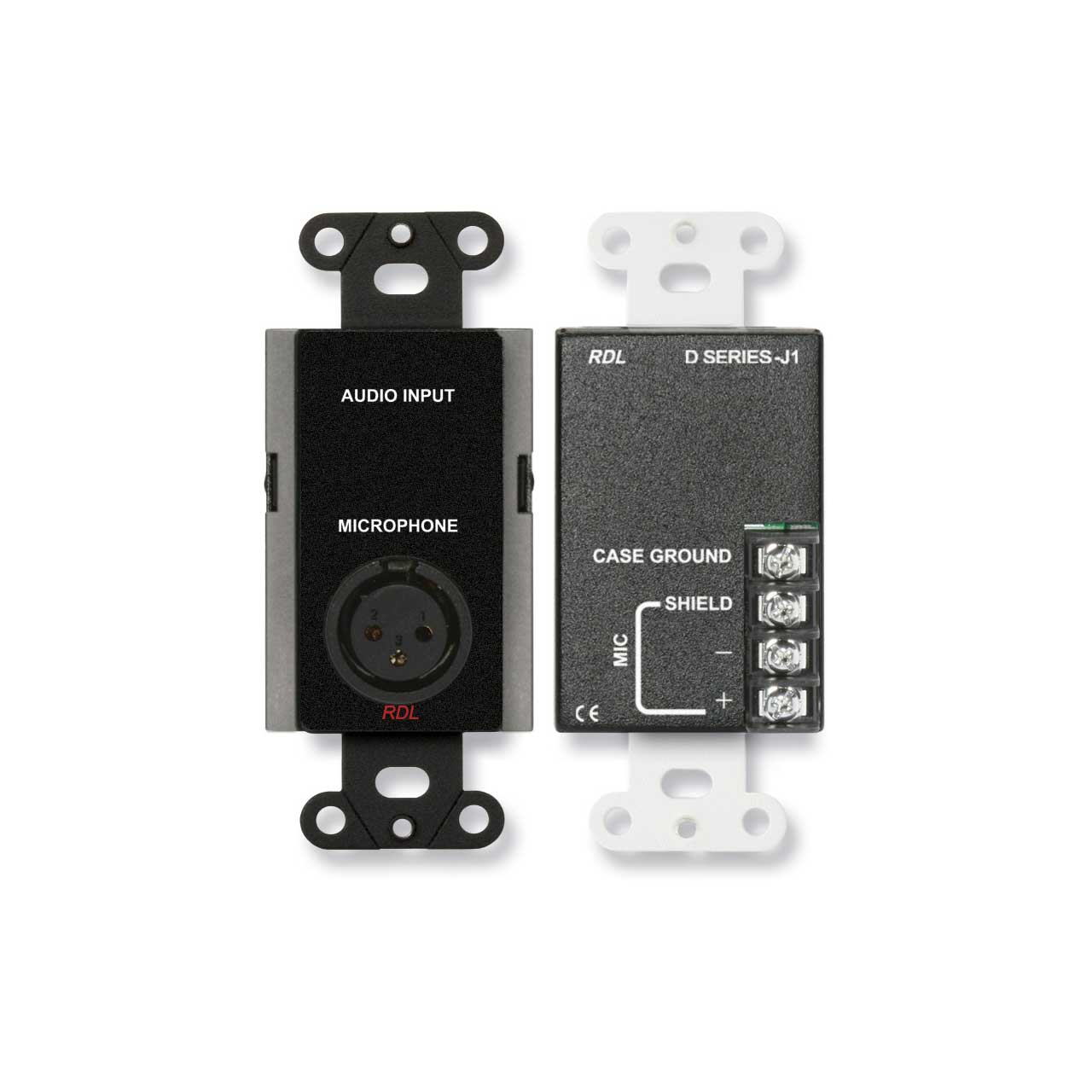

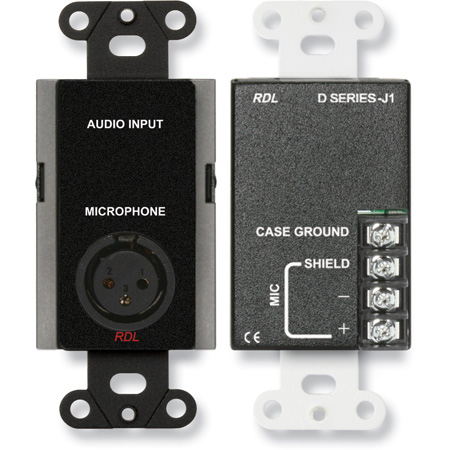

    The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.


    • Features

      • Wall Mounted Microphone Input Panel
      • XLR Input Connector with Gold Contacts
      • Barrier Block Wiring Connections
      • Ground-Lift Terminals on Barrier Block

    • Specifications

      • Input Connector: XLR female gold contacts
      • Output Connector: Barrier block
      • Output Connections (4): CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)Power Requirement: PassiveDimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
      • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.43 lbs.
      • WEEE weight: 0.28 lbs.
      • Tariff code: 8536.69.4030
