RDL DB-RLC2 Remote Level Control - Ramp

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

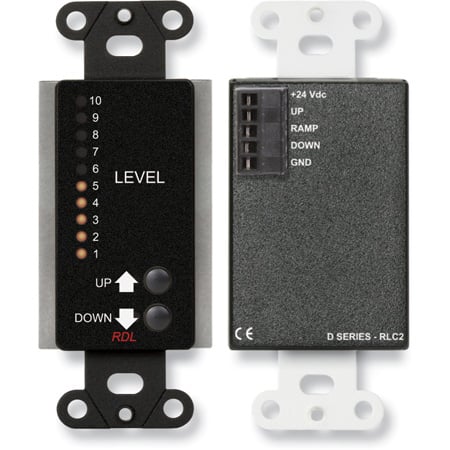

    RDL DB-RLC2 Remote Level Control - Ramp

    Manufacturer: Radio Design Labs

    Item #: RDL-DB-RLC2   •   MFG #: DB-RLC2



    List Price:$180.56
    Our Price:$132.20

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Required Accessories

      The DB-RLC2 is the ideal choice where levels are to be controlled from a single, or from multiple control locations, and visual level indication is desired.The DB-RLC2 is designed to directly interface with RDL control modules, such as the STICK-ON® series ST-RG1 Ramp Generator, or RACK-UP® series RU-VCA2A Digitally Controlled Audio Attenuator. The DB-RLC2 has two momentary pushbuttons, UP and DOWN. Pushing each button sends the appropriate signal back to the RDL control module. When connected to the RU-VCA2A, pushing both buttons on the DB-RLC2 simultaneously causes the level to return to the PRESET level on the RU-VCA2A.In installations where ULTRASTYLE™ wall controls are preferred, use the RLC-10R Rotary Level Control.


      • Features

        • Remote Level Control Panel
        • Pushbutton UP and DOWN
        • 10-segment Visual Level Display
        • Multiple Control / Indication Locations
        • Premium-Quality Remote Panel
        • Professional Aesthetic Appearance

      • Specifications

        • Ramp Input: 0 to 10 VdcOutputs: UP and DOWN, pushbutton actuated 15 Vdc @ 5 mA
        • Connections: Detachable terminal blockAmbient Operating Environment: 0° C to 55° CPower Requirement: GROUND-REFERENCED, 24 Vdc @ 75 mA
        • Mounting: Mounts in standard US electrical box, RDL WB- or SMB- series boxes; cover plate available separatelyDimensions: Height: 4.11 in. (10.4 cm), Depth: 1.66 in. (4.21 cm), Width: 1.72 in. (4.37 cm)
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.37 lbs.
        • WEEE weight: 0.22 lbs.
        • Tariff code: 8517.62.0050
