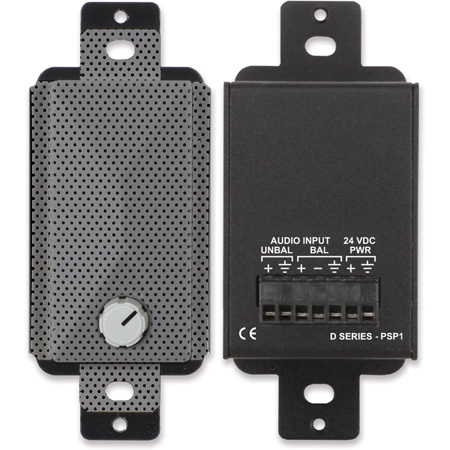

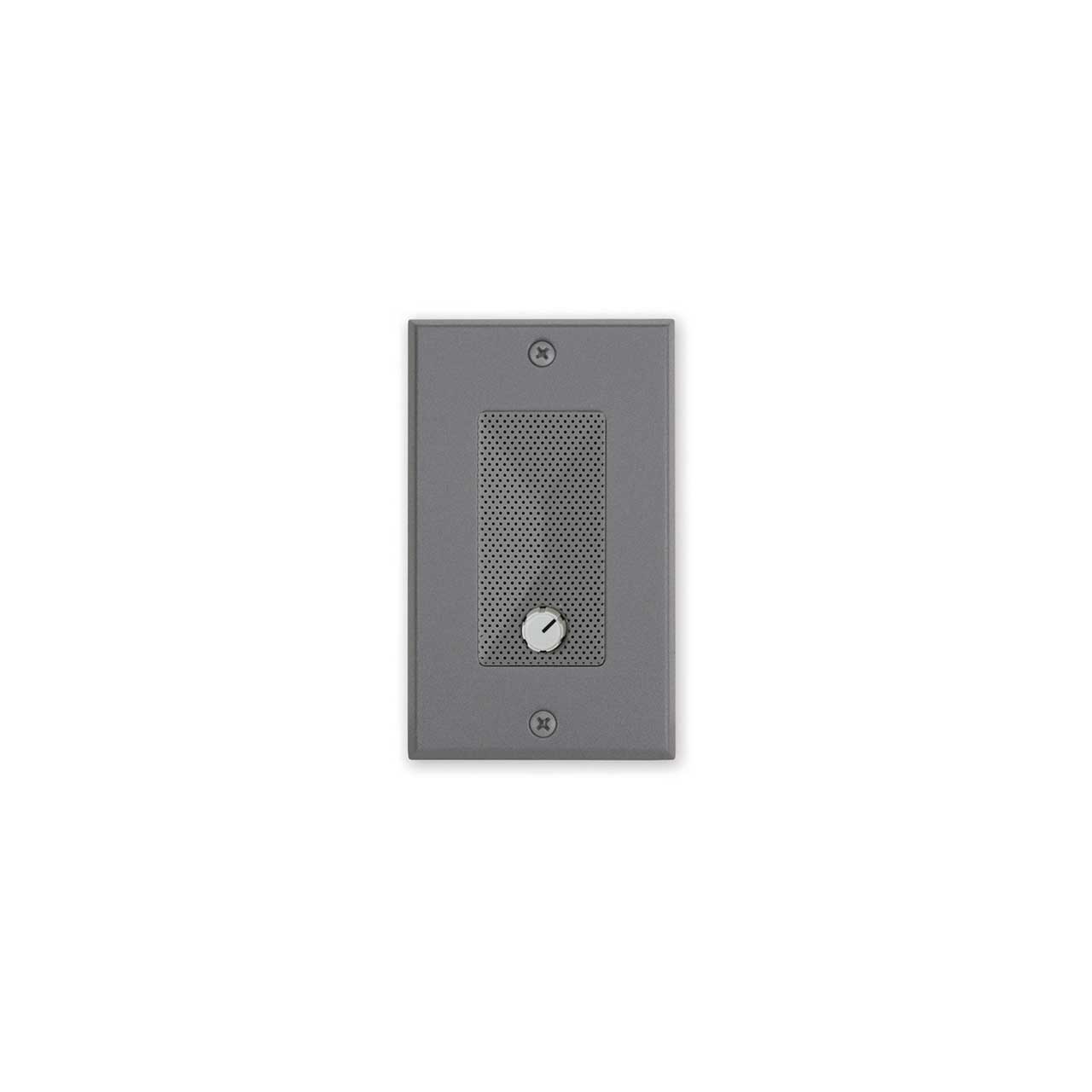

RDL DG-PSP1 Decora-Style Active Loudspeaker
  • RDL DG-PSP1 Decora-Style Active Loudspeaker
  • RDL DG-PSP1 Decora-Style Active Loudspeaker
Questions? Ask a Markertek Expert:
800-522-2025 Email

RDL DG-PSP1 Decora-Style Active Loudspeaker

Manufacturer: Radio Design Labs

Item #: RDL-DG-PSP1   •   MFG #: DG-PSP1


List Price:$239.48
Our Price:$179.89

free ship
Availability: Usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



    Required Accessories

    The D SERIES-PSP1 is a compact active loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The input accepts either a -10 dBV unbalanced or a +4 dBu balanced signal on the rear-panel detachable terminal block. Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation. The amplified output level is controlled by a front-panel volume control. The PSP1 includes an analog compressor/limiter that makes higher average sound output levels possible without clipping.The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.Models are available with grills in black (DB-PSP1), white (D-PSP1), gray (DG-PSP1) or stainless steel (DS-PSP1).

    • Features

      • Exceptional Audio Quality for Ultra-Compact Size
      • 2 Watt RMS Audio Amplifier
      • Compressor/Limiter Prevents Clipping
      • Balanced +4 dBu Input on the Rear Panel
      • Unbalanced -10 dBV input on the Rear Panel
      • Front-Panel Gain Adjustment
      • Acoustically Optimized Decora Enclosure
      • Fidelity Comparable to Larger Drivers
      • Hemispherical Dispersion Mounted In Wall or Flat Surface
    • Specifications

      • Inputs (2): 30 kΩ balanced or 10 kΩ unbalancedInput Level: +4 dBu nominal (Balanced); -10 dBV nominal (Unbalanced)
      • MinimumInput Level: -18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced, Max. gain)
      • MaximumInput Level: +22 dBu
      • Gain Adjustment: Single-turn audio taper (Front-panel)
      • Maximum SPL: 81 dB
      • Frequency Range: 150 Hz to 20 kHz, nominal
      • CMRR: > 50 dB (50 Hz to 120 Hz)Power Requirement: 24 Vdc @ 55 mA (Idle); 100 mA (maximum), Ground-referencedAmbient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedDimensions: Height: 4.12 in. 10.46 cm; Width: 1.72 in. 4.37 cm; Depth: 2.64 in. 6.7 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: .573 lbs.
      • WEEE weight: .435 lbs.
      • Tariff code: 8518.40.2000
