RDL DS-TPS7A Stereo Audio Passive Single-Pair Sender

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    RDL DS-TPS7A Stereo Audio Passive Single-Pair Sender

    Manufacturer: Radio Design Labs

    Item #: RDL-DS-TPS7A   •   MFG #: DS-TPS7A



    List Price:$101.04
    Our Price:$68.94

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!

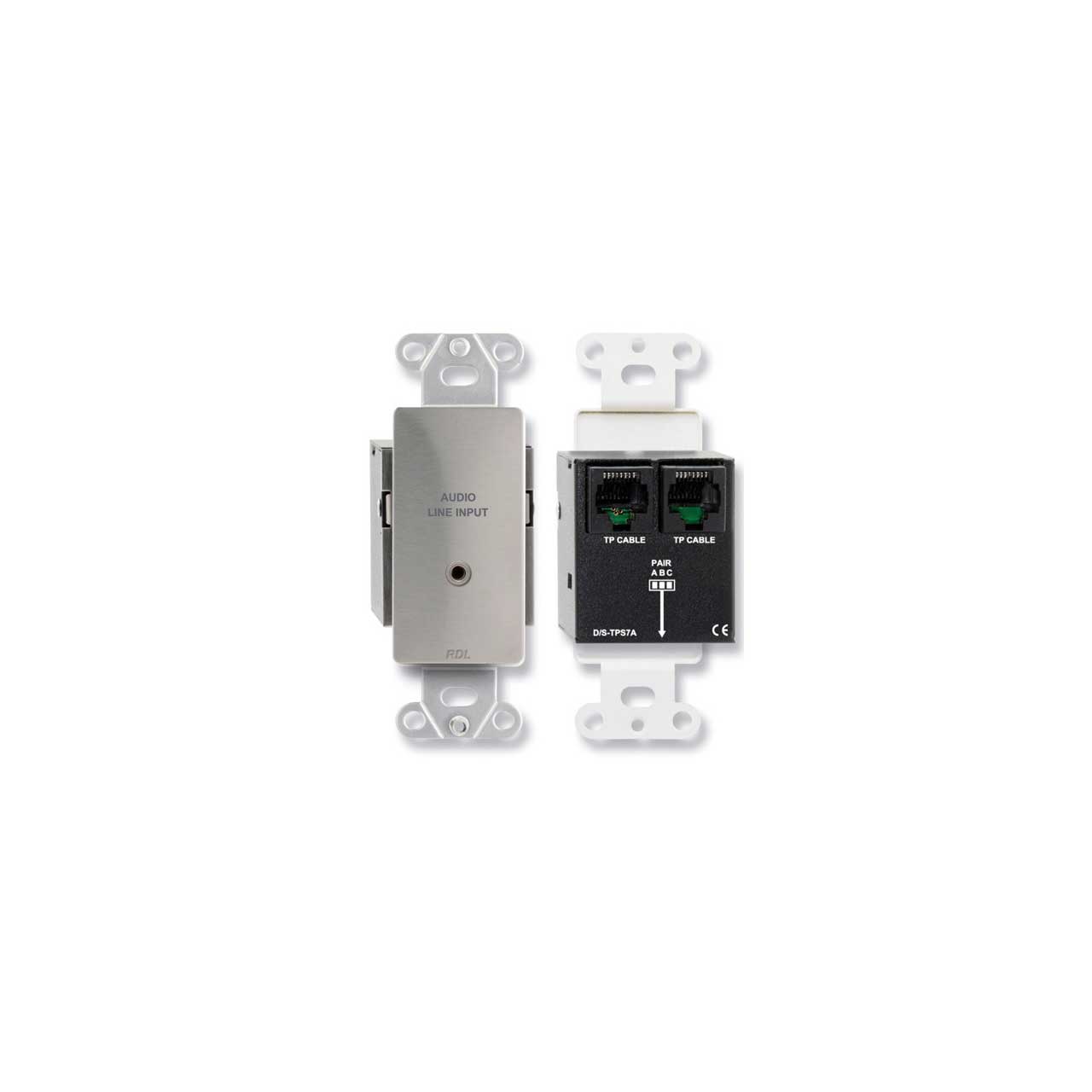

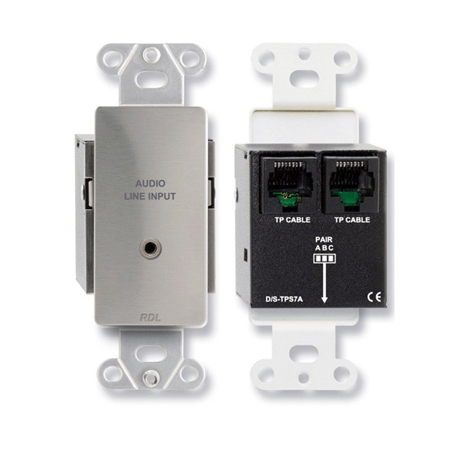

      The -TPS7A is a single-pair audio sending module compatible with RDL® Format-A twisted pair products. The front panel features a single stereo mini-jack intended for stereo consumer line level audio sources. A studio-quality transformer provides isolation between the audio source and the RJ45 TP CABLE.The -TPS7A is a single-pair sender, feeding the input signal to the cable pair set on the rear-panel switch during installation. This module drives only one cable pair, therefore a TP CABLE RJ45 jack is provided to accept signals and power from other mic-level or line-level Format-A senders. Two other single-pair senders may be chained to a TP CABLE jack, or a single two-pair sender may be connected. If three single-pair senders are connected together, each sender must feed a different pair: A, B or C. The -TPS7A must be set to feed pair A if it is connected together with an RDL two-pair sender that feeds stereo audio on pairs B and C.The -TPS7A is a passive module that does not require power to operate. If power is present on a cable connected to a TP CABLE jack, that power is passed through to the modules connected to the other TP CABLE jack.


      • Features

        • Stereo Audio Input Combined to Mono Output
        • Input on Mini-jack
        • Switch Selects which RJ45 Pair (A, B or C) is Fed
        • Signal and Power Pair Pass-Through between TP CABLE RJ45 Jacks
        • Passive Circuitry Does Not Require Power
        • Galvanic Isolation through a Studio-Quality Transformer
        • Daisy-Chain with Single-Pair or Two-Pair Format-A Senders

      • Specifications

        • Input: 3.5mm mini-jack, unbalanced stereo combined to mono
        • Input Level: -10 dBV, +22 dBu max
          Format-A Signal Pair Used: Switch-selectable A, B, or C (rear-panel switch)
          Format-AInput: RJ45 TP CABLE
          Ouput: RJ45 TP CABLE, RDL TP Format-A
          Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
          THD: < 0.1% (50 Hz to 20 kHz); <0.001% (1 kHz typ)
        • Power Requirement: Passive
        • Dimensions: 1.6” (4.06 cm) W; 4.11” (10.45 cm) H; 1.89” (4.8 cm) DPackage Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: 0.52 lbs.
