RDL FP-TPSR4A Format-A Two-Pair Audio Sender/Receiver

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

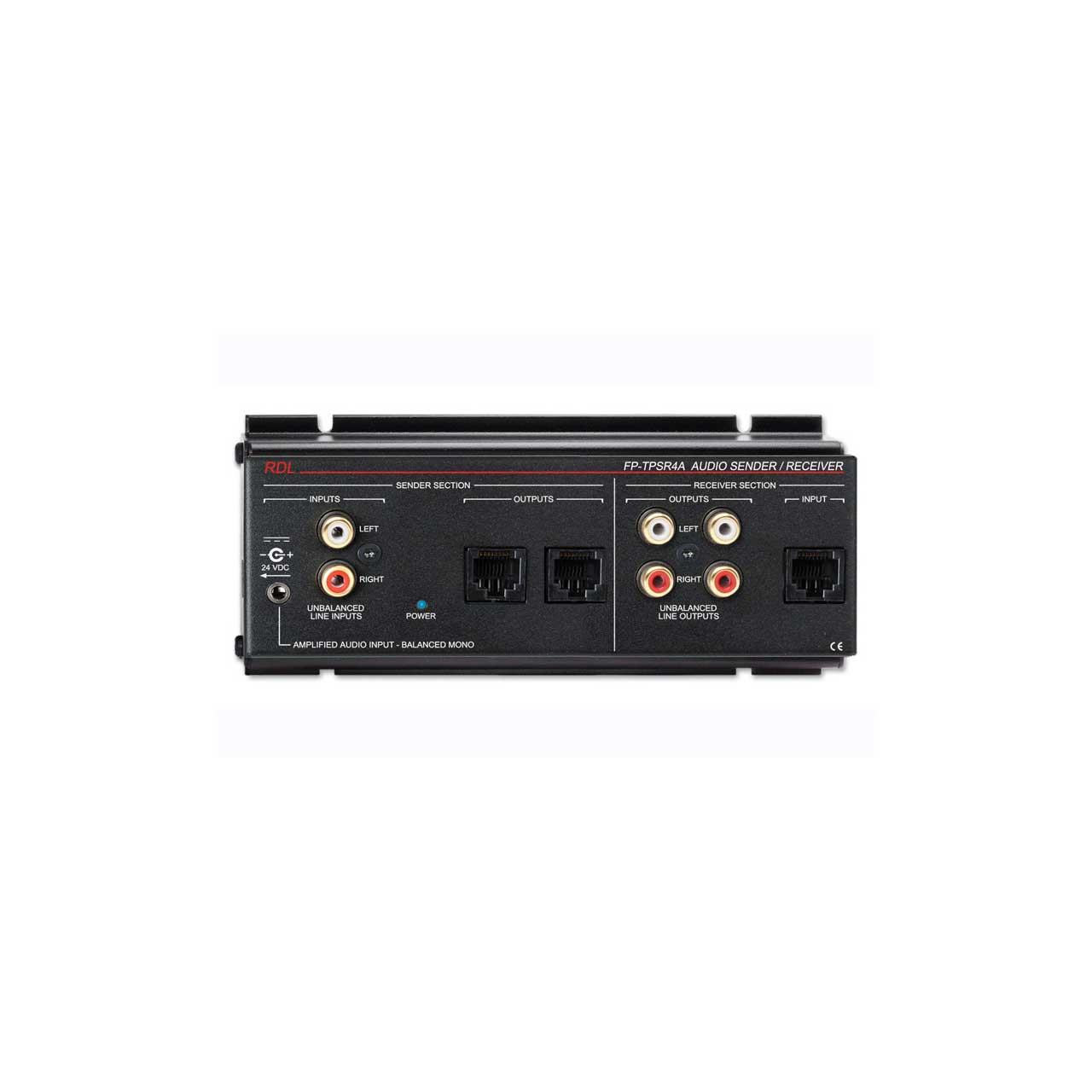

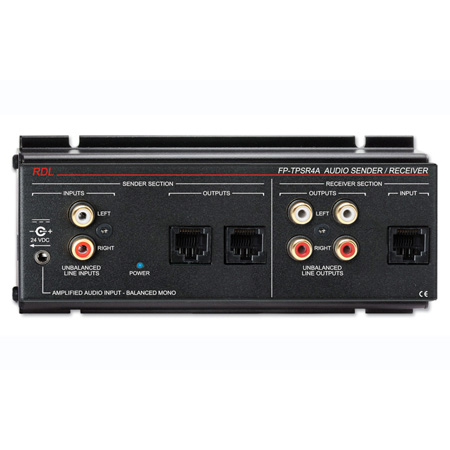

    RDL FP-TPSR4A Format-A Two-Pair Audio Sender/Receiver

    Manufacturer: Radio Design Labs

    Item #: RDL-FP-TPSR4A   •   MFG #: FP-TPSR4A



    List Price:$258.11
    Our Price:$174.79

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      Required Accessories

      The FP-TPSR4A is a sender and receiver that provides the interface between a hotel room television and listening stations and audio input panels.The Sender Section is an RDL Format-A audio sender that accepts either a stereo line-level or 1 to 3 Watt mono amplified fixed-level signal, usually from a commercial hospitality equipped TV. The FP-TPS4A distributes the source signal to two Format-A RJ45 output jacks to feed multiple Format-A receivers.The input accepts either an unbalanced stereo or an amplified mono input. The FP-TPSR4A sends the unbalanced Left and Right sources over balanced twisted-pair cables on pairs B and C. If a mono amplified signal is connected, the mono source is fed to both pairs B and C. Audio circuitry is active balanced for superior audio fidelity and low-noise performance.The Receiver Section is an RDL Format-A receiver with an RJ45 input fed by sender modules such as the D-TPS8A stereo input panel for portable computer or media player. Audio signals received on pairs B and C are amplified to feed two stereo RCA connectors at a standard -10 dBV consumer level. One of these outputs connects to the TV AUX input, the other is available to feed the input of a stereo amplifier in the room.The FP-TPSR4A is normally mounted behind a TV where AC power is available. A 24 Vdc power supply, available separately, provides power to the FP-TPSR4A and to the connected sending and receiving modules. It is not necessary to connect power supplies to the connected senders and receivers, facilitating installation. A front-panel blue LED is illuminated when the FP-TPSR4A is receiving and distributing 24 Vdc to all three RJ45 jacks. The distributed output dc voltage is short-circuit protected by an automatically resetting fuse. A power fault on either output jack causes the blue LED to extinguish.The FP-TPSR4A is ideally suited to guest room installations with bedside and restroom listening stations. The inputs and outputs are fully compatible with all RDL Format-A receivers.RDL FORMAT-A features superior audio performance that rivals or exceeds shielded wiring. Design simplicity, ease of installation, unsurpassed flexibility, automatic fused power, exceptional hum rejection, low noise, and low distortion provide designers and installers the optimum choice in economical twisted pair products.


      • Features

        • Combination Sender and Receiver Module
        • Ideal for Hotel Room Audio Systems
        • Distributes Power to All Connected Modules
        • Automatically Resetting Fuse for Output Voltage
        • Ultra-Compact All Metal Construction
        • Format-A Sender from TV Fixed Audio Output
        • Sends Left and Right Audio Channels
        • Unbalanced Stereo Input from Fixed Level Audio Source
        • Balanced Audio Input from Mono Amplifier
        • High Quality Audio Distributed to Each RJ45 Output
        • Two Format-A Outputs on RJ45
        • Format-A Receiver Compatible with 2 Pair Senders such as D-TPS8A
        • Two -10 dBV stereo unbalanced outputs on RCA connectors
        • L (Left) Output From Pair B; R (Right) From Pair C
        • The output feeds the AUX input of the television

      • Specifications

        • Inputs (3): 20 kΩ unbalanced (2, left and right); 100 Ω balanced (mono amplified)Input Connection: Phono Jack (Unbal.); Mini-jack (Bal.)Input Level: -10 dBV unbalanced; 1 W (8 Ohms) to 10 W (8 Ohms) balanced, 2 W nominal
        • Format-A Signal Pairs Used (2): B, C
        • Output: RDL TP Format-A
        • Output Connection: RJ45
        • Frequency Response: 10 Hz to 50 kHz (± 0.1 dB)
        • THD+N: < 0.05%
        • Noise below +4 dBu: < -85 dB
        • Crosstalk: < -85 dB (10 Hz to 10 kHz); < -80 dB (10 kHz to 20 kHz)
        • Headroom above +4 dBu: > 18 dB
        • Receiver SectionInput:: RDL FORMAT-AInput Connection: RJ45
        • Format-A Signal Pairs Used (2): B (Left); C (Right)
        • Output: 100 Ω unbalanced
        • Output Connections (2): RCA Phono stereo
        • Frequency Response: 10 Hz to 40 kHz (± 0.1 dB)
        • THD+N: < 0.005%
        • Noise below +4 dBu: < -90 dB
        • Crosstalk: < 90 dB (1 kHz); <75 dB (20 Hz to 20 kHz)
        • Headroom above -10 dBV: > 20 dB
        • CMRR:Power Input andOutputs active)Power Connection:Power Jack (locking)
        • Maximum Load Current: 500 mAPower Requirement: 24 Vdc @ 35 mA plus connected loadsDimensions: 6.58" (16.7 cm) L; 3.25" (8.6 cm) W; 1.68" (4.27 cm) HPackage Type: Cardboard Box
        • Package Dimensions: 4.375 x 7 x 2.25 in.
        • Shipping Weight: 1.005 lbs.
        • WEEE weight: 0.775 lbs.
        • Tariff code: 8517.18.0000
