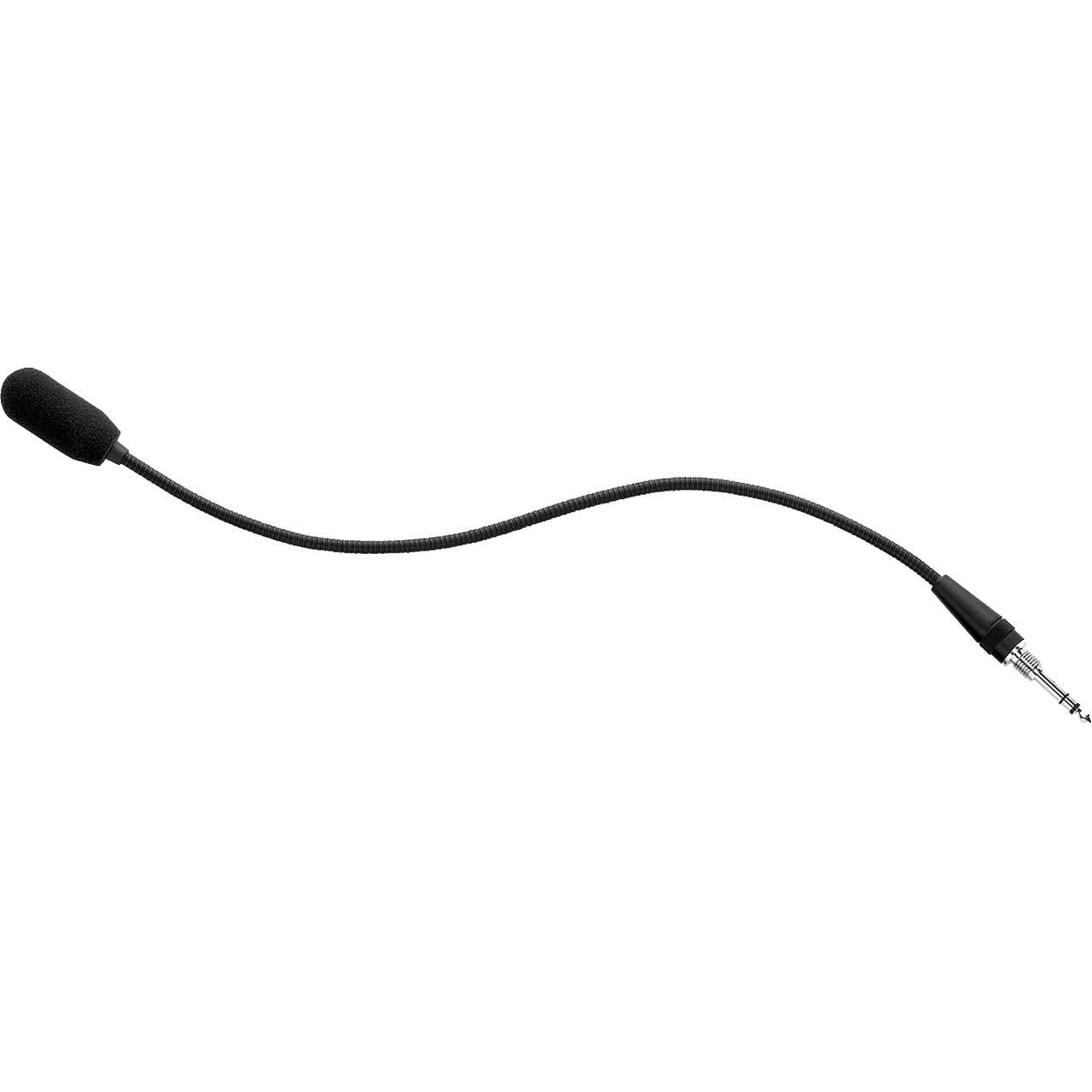

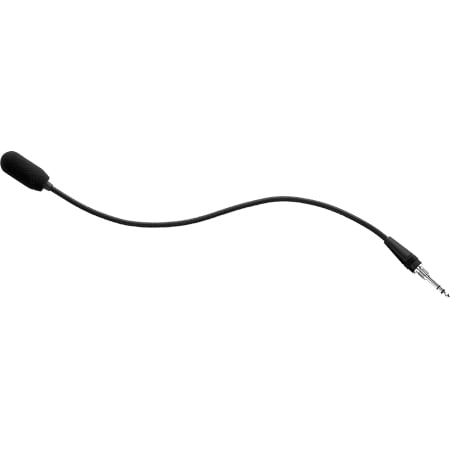

RTS MCP-90-18 Phantom-powered 18-Inch Back-electret Miniature Condenser Gooseneck Microphone for RTS Intercoms

ITEM #: RTS-MCP90-18 MFG #: MCP90-18

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$356.00

Our Price:

$319.60

Availability: In Stock
iAvailability Description Popup


    MCP90-18 - Overview

    The RTS MCP-90-18 microphone is a phantom-powered "back-electret" miniature condenser gooseneck microphone. The back-electret feature provides greater sensitivity, wider frequency response, and superior immunity from handling noise than a diaphragm-electret microphone. The removable windscreen provides pop filtering; response shaping and overload protection to further enhance the acoustic performance of the microphone. The MCP-90 series microphones are mechanically designed for quick, easy mounting to RTS keypanels and selected Audiocom intercoms. The frequency response is tailored for full-range sound reproduction with natural sound pick-up optimized for close-up use. The microphones are fitted with a threaded TRS male connector that is compatible with RTS standard threaded TRS female connectors. The MCP-90 series is designed to be phantom powered with a wide voltage range of 1.5 to 9 VDC

    • Specifications:

      • Generation Element: Condenser, Back-Electret
      • Frequency Response: 100Hz to 15,000Hz
      • Polar Pattern: Cardioid
      • Open Circuit Voltage: 4.5mV (-47dB)/Pascal @ 1kHz
      • Dynamic Range: 102dB
      • Power Requirements: 1.5 to 9VDC
      • Color: Non-reflecting black
      • Environmental Conditions: Relative Humidity 0-50%: -20°F to 165°F (-29°C to 74°C), Relative Humidity 0 to 95%: -20°F to 135°F (-29°C to 57°C)
      • Mounting: Male threaded TRS

    • Item Includes:

      • 1x MCP90-18 Gooseneck Microphone

    • Warranty:

      • 1-Year Warranty
