Proco SMA1604FBX-200 16 Send 4 XLR Ret Fan/Box 200 Ft StageMASTER Snake

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

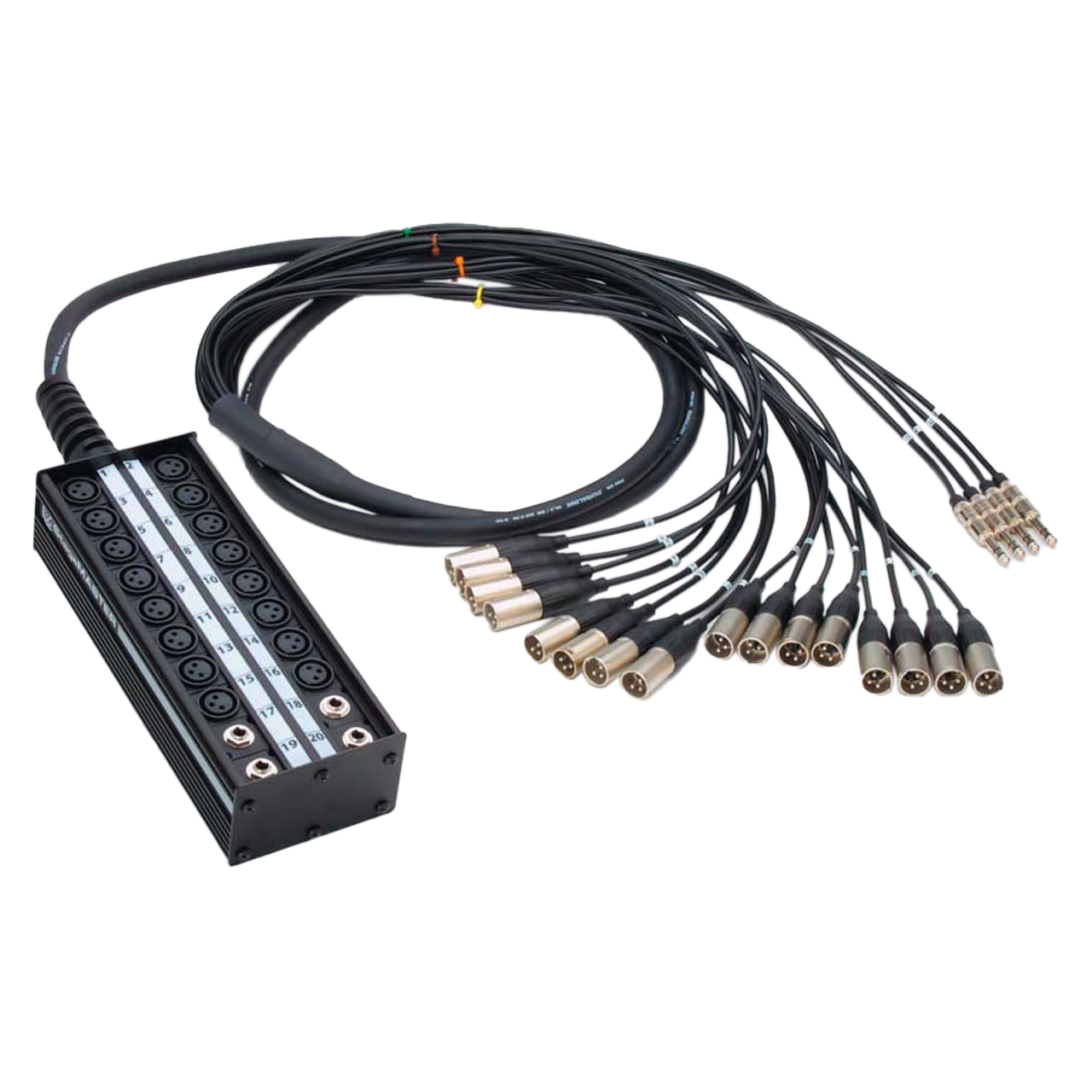

    Proco SMA1604FBX-200 16 Send 4 XLR Ret Fan/Box 200 Ft StageMASTER Snake

    Manufacturer: Pro Co Sound, Inc.

    Item #: SMA1604FBX-200   •   MFG #: SMA1604FBX-200



    List Price:$1,157.49
    Our Price:$759.19

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    Whether your multipair system will be used in a fixed installation or a "medium-use" portable application, StageMASTER SMA Series Snakes are clearly the ideal choice.
    Each StageMASTER SMA Series Snake stagebox is constructed of a virtually indestructible aluminum extrusion with a center T-channel for incredible structural integrity. The low-profile box provides both excellent shielding and protection from connector damage.
    Mic inputs are rugged Amphenol nylon XLR panel connectors and returns are either Amphenol nylon XLR-type connectors or durable metal 1/4" T/R/S Panel Jacks (as designated).
    The stagebox is wired with CL2-rated Pro Co DuraLink Multipair Audio Cable to a 3 or 4 foot Fanout (determined by total number of channels) with Amphenol Male and Female XLR connectors or metal shell 1/4" T/R/S Phone Plugs (as designated).
    The cable is secured to the stagebox with a durable nylon strain relief. The individual channels of the Fanout are protected with PVC-tubing for long flex-life, easy channel identification and a tangle-free fanout. Medium duty, CL2 rated Fan/Box with XLR returns


    • Features

      • Rugged, Low Profile, Extruded Aluminum T-channel Stagebox for Best Shielding and Connector Protection.
      • DuraLink Series Multipair (2 x 24 AWG) Audio Cable
      • Individually Shielded Pairs with100% Coverage Foil Shield and Drain Wire
      • Durable PVC Outer Jacket
      • CL2 rated to meet NEC requirements
      • Plastic tubing on each channel for a tangle-free fanout
      • Color-Coded Fanout for Easy Channel Identification
      • Cable is Highly Flexible
      • Rugged Amphenol Nylon XLR Panel-mount connectors
      • Amphenol Metal-shell Cable Connectors for High-use Durability
      • Limited 3-Year Warranty

    • Specifications

      • CONNECTORS:
      • MICROPHONE INPUT: Amphenol Nylon XLR Female Panel-mount
      • RETURNS OUT XLR MODEL: Amphenol Nylon XLR Male Panel-mount
      • RETURNS OUT T/R/S MODEL: Metal 1/4" T/R/S Panel-mount
      • STAGEBOX: Extruded Aluminum T-channel construction; Steel End Caps FEET: Non-skid Rubber (4)
      • FINISH: Black Powder Coat
      • CHANNEL MARKING: Mylar Channel ID Strip
      • STRAIN RELIEF: Nylon
      • CONNECTORS:
      • MICROPHONE OUTPUT: Amphenol XLR Male Cable-mount
      • RETURNS INPUT XLR MODEL: Amphenol XLR Female Cable-mount
      • RETURNS INPUT T/R/S MODEL: Rean 1/4" T/R/S Cable-mount
      • CHANNEL INSULATION: .010" (.254mm) Polyethylene
      • CHANNEL MARKING: PVC Tubing with Channel markers and
      • color coded cable ties
      • MULTIPAIR AUDIO CABLE:
      • WIRE: Pro Co DuraLink Multipair Audio Cable
      • UL RATING: CL2
      • CONDUCTOR GAUGE: 24 AWG (.20mm2)
      • STRANDING no. strands x AWG: 7 x 32 (7 x .254mm2)
      • INSULATION: .010­± (.254mm)
      • INSULATION MATERIAL: Polypropylene
      • NOMINAL LAY LENGTH: 1.5­± (38.1 mm)
      • DRAIN WIRE GAUGE: 24 AWG (.20mm2)
      • DRAIN WIRE STRANDING: 7 x 32 (7 x .254mm2)
      • SHIELD MATERIAL: Aluminum/Polyester Tape Wrap
      • SHIELD COVERAGE: 100% coverage
      • CAPACITANCE
      • between paired conductors: 23 pF/ft. (75 pF/m)
      • between one of paired conductors and remaining
      • conductor tied to shield): 43 pF/ft. (141 pF/m)
      • CALCULATED IMPEDANCE: 67 ohms/kft (219.8 ohms/km)
      • NOMINAL CONDUCTOR RESISTANCE @ 20›¦C: 25.6 ohms/kft (80.7 ohms/km
