Sonifex RM-CA2 Confidence Monitor - 2 LED Meters - 2 Analog Stereo Inputs

Manufacturer: Sonifex Ltd.

Item #: SON-RM-CA2   •   MFG #: RM-CA2




Our Price:$1,350.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    The latest additions to the Reference Monitor range of 1U rack-mount audio monitors are two new confidence monitors. Using the same outstanding speaker system as the Reference Monitor range, the confidence monitors offer a superb sound with a cut-down feature set. The confidence monitors have been designed to give the best possible performance at a reduced price:

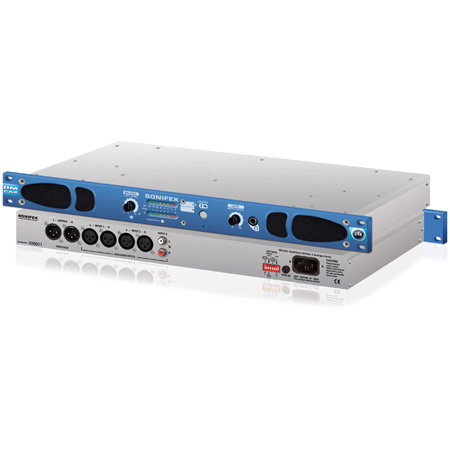

    The RM-CA2 is a 1U rack-mount unit offering quality loudspeaker monitoring and 2 channel metering of two stereo analogue audio sources. Input 1 has stereo balanced NeutrikT XLRs and Input 2 has both stereo balanced NeutrikT XLRs and stereo unbalanced RCA phono connectors. The balanced analogue inputs can be wired unbalanced if required.

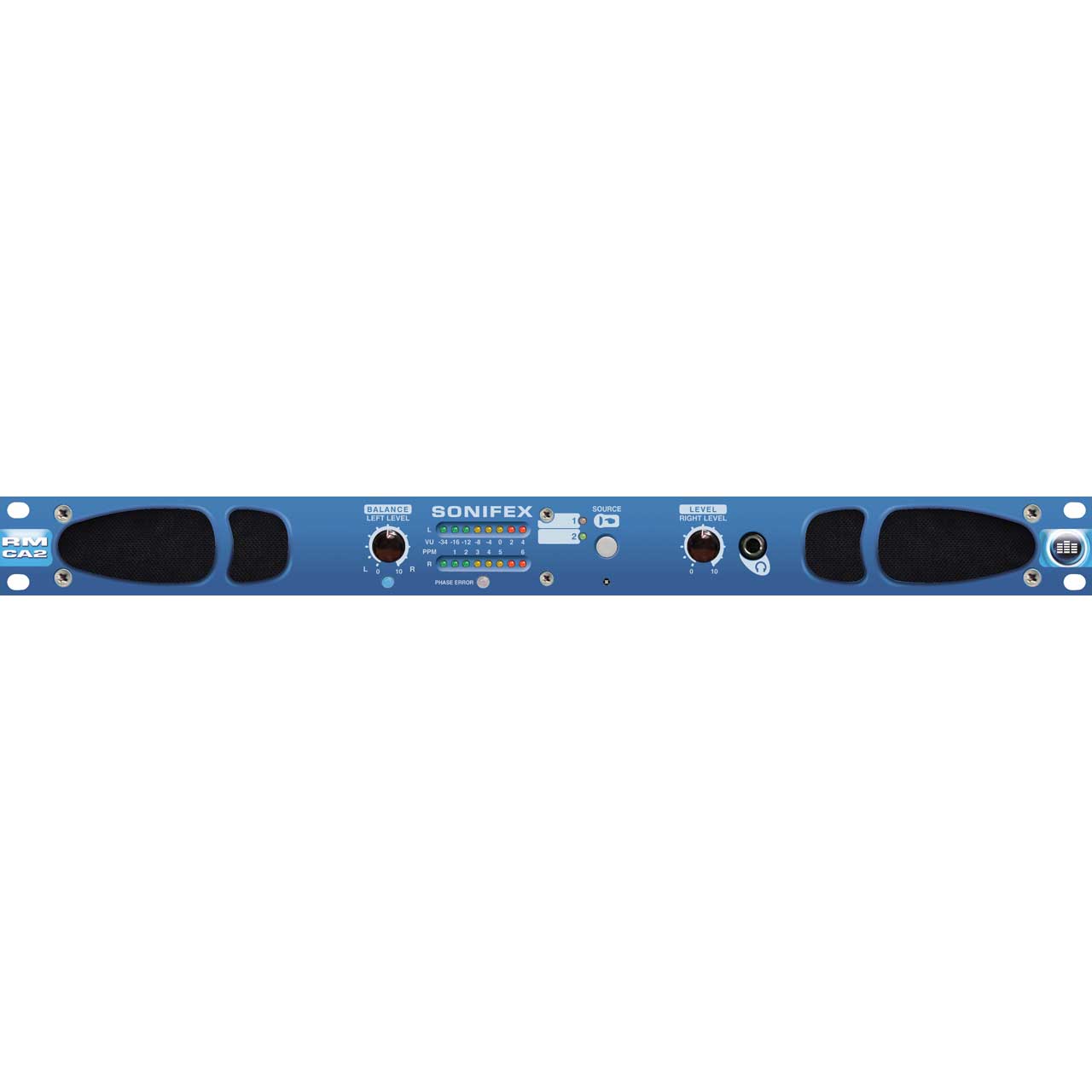

    Sources are selected via a front panel push-button switch, with clear LED indication of the current source.

    A rear panel DIP switch setting allows the unit to monitor either:
    Stereo signals, with the two front panel control knobs acting as stereo volume and balance control, to alter the stereo imaging of the left and right channels, or
    Dual mono signals, with the two front panel control knobs acting as left and right volume controls.

    There is a front panel headphone socket which responds to the volume controls
    and the headphone socket automatically mutes the internal loudspeakers when a plug is inserted.

    A pair of line-level analogue audio outputs follow the selected source at the selected level, or optionally at 10dB lower (if using the unbalanced input), set via rear-panel DIP switch.

    The level of the chosen source is shown on an 8 segment LED bar-graph display with PPM and VU scales indicated. The bar-graph can optionally be lowered by 10dB (if using the unbalanced input), set via rear-panel DIP switch.

    A single phase meter LED indicates channel correlation or phase error conditions.

    The three-way loudspeaker system is fed via a DSP-based active crossover and a trio of highly efficient Class-D amplifiers. Careful attention to driver selection, materials and case design, plus active DSP equalisation, has ensured a flat response and outstanding reproduction from such a shallow unit. A protective limiter prevents damage to the loudspeakers under overload conditions

    The RM-CA2 operates from global mains voltages (85-264V AC, 47-63Hz) without adjustment and can optionally be ordered with a DC 9V to 36V input instead of the AC input.


    • Features

      • Anti-vibration steel case.
      • Sealed lid with foam cut-outs to dampen lid.
      • Multi-point screw fixings ensure lid rigidity.
      • Rear connector ports sealed with foam.
      • Glue used on components which could move, or vibrate.
      • Accurate 3-way speaker system.
      • Two mid/high frequency speakers provide excellent stereo imaging.
      • Separately driven, forward facing, dual magnet, mono bass driver.
      • Custom-moulded, profiled, HF enclosures minimise standing waves.
      • Acoustic damping in the HF enclosures reduces colouration.
      • Separate, sealed, infinite-baffle enclosure for each driver.
      • Magnetically shielded drivers so that the monitors are perfectly safe to use near CRTs and TFT displays.
      • Separate, highly efficient class-D switching amplifier for each speaker.
      • Short, even cable lengths to and from the speaker enclosures to reduce any potential microphonic induction.
      • DSP based design allows better audio performance to be realised.
      • Active crossover provides perfect separation between mid-range and bass sounds.
      • A universal power supply ensures global voltage operation without adjustment.
      • Optional DC power input.

    • Specifications

      • Inputs
      • Audio Inputs 2 x stereo analogue (1 x XLR balanced,
      • 1 x XLR balanced or RCA phono unbal)
      • Max level (0dB input gain): +18dBu (analogue)/0dBFS (digital)
      • CMRR: >60dB typical
      • Analogue input impedances: XLR:>20kO balanced bridging
      • RCA:>10O unbalanced
      • AES/EBU Sample Rate: 32 to 192kHz, converted internally to 48kHz
      • Input Gain: +10dB on unbalanced input
      • Selection: Front panel push button with indicator LEDs
      • Line Level Outputs
      • Audio Outputs: 1 x stereo analogue
      • Gain re Selected Input: Unity or - 10dB (switchable)
      • Maximum Output Level: +18dB
      • Output Impedance: <50O
      • Distortion: <0.02% (1kHz, +8dBu output)
      • Noise: -95dB RMS, unity gain ref
      • +8dBu output
      • Frequency Response: 20Hz-20kHz +0/-0.5dB
      • Crosstalk
      • 1kHz input:
      • 10kHz input: Analogue I/O, ref 0dBu
      • <-90dB
      • <-85dB
      • Amplifier/Loudspeakers
      • Configuration: Three-way with stereo mid/ high-frequency drivers & mono low-frequency driver
      • Power Output: 2 x 7W (HF) + 15W (LF) with protective limiter
      • Crossover: 250Hz (24dB/octave, Linkwitz-Riley)
      • Distortion (HF Outputs): < 0.1% (1kHz, 3W output)
      • Distortion (LF Output): < 0.01% (100Hz, 6W output)
      • Noise: More than 102dB below full output
      • Volume: Mute to full volume via front panel rotary control
      • Balance Trim: ±6dB via front panel rotary control
      • Peak Acoustic Level: 98dB SPL @ 2ft
      • Level & Phase Metering
      • Number: 2 x 8-segment LED bargraphs
      • Line-Up Level: 0dB on scale can be set to 0dB or -10dB via rear panel DIP switch
      • Phase Meter: Single LED indication showing average

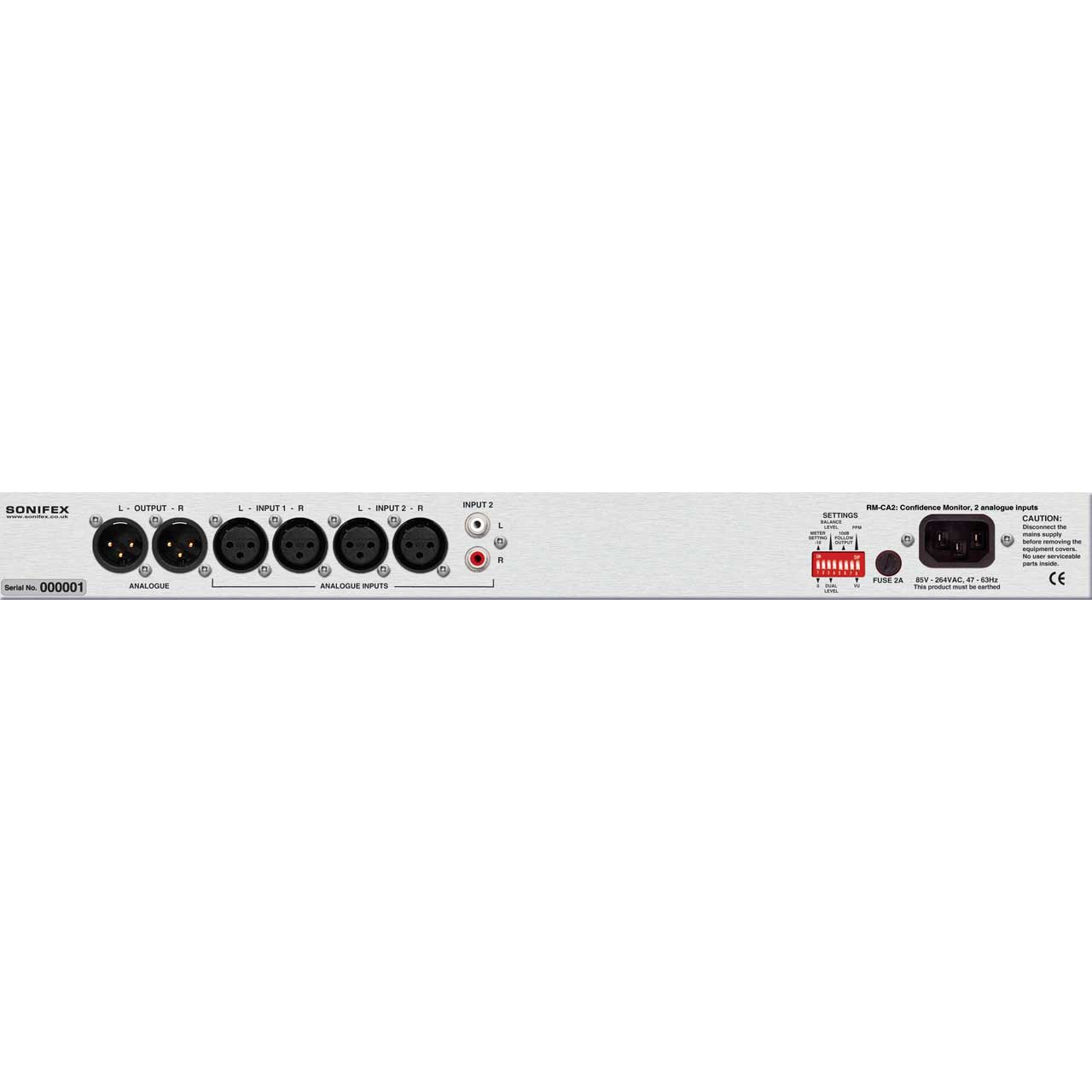

      • Connectors
      • Audio Inputs: 4 x XLR 3-pin female balanced
      • 2 x RCA female phono unbalanced
      • Audio Outputs: 2 x XLR 3-pin male (balanced, may be unbalanced)
      • Headphones: 1/4" (6.35mm) A-gauge 3-pole stereo jack socket
      • Mains Input: Filtered 3-pin IEC male, continuously rated 85 - 264VAC, 47 - 63Hz, fused, 60W peak, 30W average
      • Fuse Rating: Anti-surge fuse 2A 20 x 5mm
