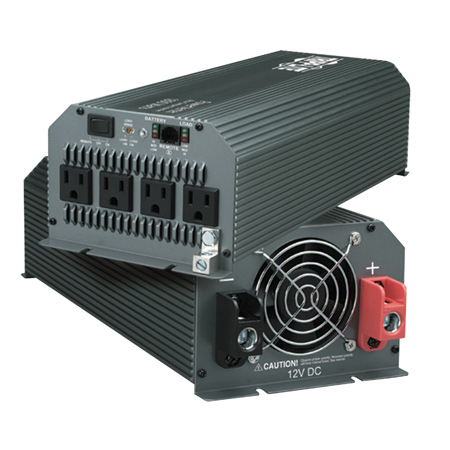

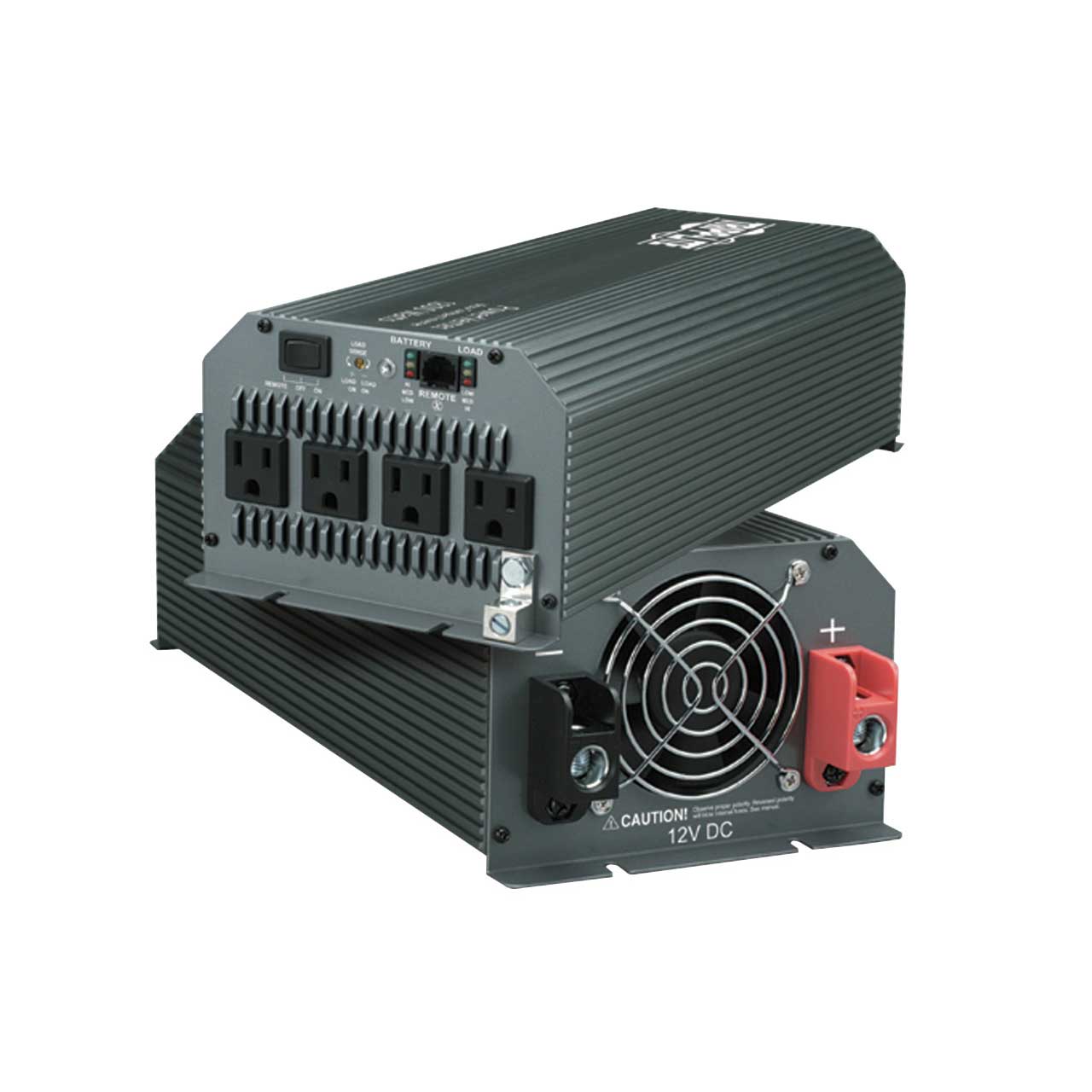

Tripp Lite PV1000HF Compact Inverter 1000W 12V DC to AC 120V 5-15R 4 Outlet

PV1000HF - Overview

• Features:

  • Allows users to run AC appliances from any properly-sized 12V battery or automotive DC system
  • Converts 12V DC battery power to 120V AC power
  • 1000 watts continuous output power; 2000 watts peak output power (instantaneous)
  • 4 outlets
  • Compact, lightweight design with all-metal housing
  • Remote control jack provides optional remote monitoring and control when used with optional remote module (APSRM4, sold separately)
  • Low battery alarm with auto-shutoff prevents deep battery discharge
  • High-efficiency operation conserves batteries to prolong run time
  • Battery charge level LEDs indicate the approximate charge level (high/medium/low) of connected batteries
  • Connected load level LEDs indicate the approximate wattage load level (high/medium/low) of connected equipment
  • Operating mode switch controls inverter operation
  • Battery Charge Conservation Dial conserves battery power by setting the load-level at which the inverter automatically shuts off
  • Cooling fan regulates internal temperature and prolongs service life
  • Mounting flanges provide safe, fixed installation
  • Grounding lug connects to vehicle ground
  • Grooved cooling surface provides additional surface area for more efficient cooling


• Specifications:

  • Input
  • Recommended Electrical Service: Requires 12V DC input source capable of delivering 100A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 175A battery system fusing is recommended.
  • Maximum Input Amps / Watts: Full continuous load - 100A at 12V DC, No load - 1.5A at 12V DC, Shutdown / load sense mode - 100 micro amps
  • Input Connection Type: Set of 2 DC bolt-down wiring terminals
  • Input Cord Length Details: User supplies cabling. Minimum gauges for full load operation: #4 wire (12 ft max), #2 wire (20 ft max), #0 wire (31 ft max).
  • Voltage Compatibility (VDC): 12

    Output
  • Frequency Compatibility: 60 Hz
  • Pure Sine Wave Output: No
  • Output (Watts): 1000
  • Nominal Output Voltage(s) Supported: 120V
  • Output Receptacles: (4) 5-15R
  • Continuous Output Capacity (Watts): 1000
  • Peak Output Capacity (Watts): 2000
  • Output Voltage Regulation: Maintains PWM sine wave output voltage of 115 VAC (+/- 10% VAC)
  • Output Frequency Regulation: 60 Hz (+/- 5% Hz)
  • Overload Protection: Automatic overload protection shuts down inverter system in the event of overloads. Inverter and electrical system are further protected via four internal 40A automotive fuses

    Battery
  • DC System Voltage (VDC): 12

    User Interface, Alerts & Controls
  • Front Panel LEDs: Set of 6 LEDs offer continuous status information on battery and connected load conditions
  • Switches: 3 position rocker switch enables on/off power control, plus "remote" setting which enables inverter to be remotely powered on or off when used in conjunction with APSRM4 Remote Control Module (sold separately)
  • Audible Alarm: Dual function alarm indicates overload conditions or low DC input voltage of 10.5V or less

    Physical
  • Cooling Method: Fan
  • Form Factors Supported: Mounting slots enable permanent placement of inverter on any horizontal surface (see manual for additional mounting information)
  • Material of Construction: Aluminum / sheet metal
  • Shipping Dimensions (hwd / in.): 4.40 x 7.80 x 18.40
  • Shipping Weight (lbs.): 7.10
  • Unit Dimensions (hwd / in.): 4.25 x 6 x 13
  • Unit Weight (lbs.): 6

    Environmental
  • Relative Humidity: 0-95% non-condensing


• Item Includes:

  • 1x PV1000HF Inverter
  • 1x Warranty information
  • 1x Instruction manual


• GTIN:

  0037332097187
