White Sands 1.0/2.3FPF 1-Piece DIN RF Panel Mount Jack Connector for Belden 1855

ITEM #: 1023FPF MFG #: 1.0/2.3FPF

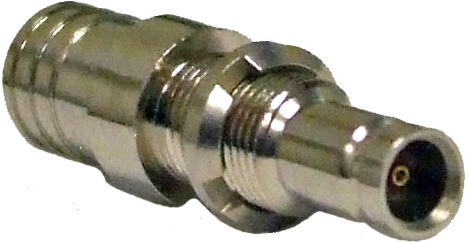

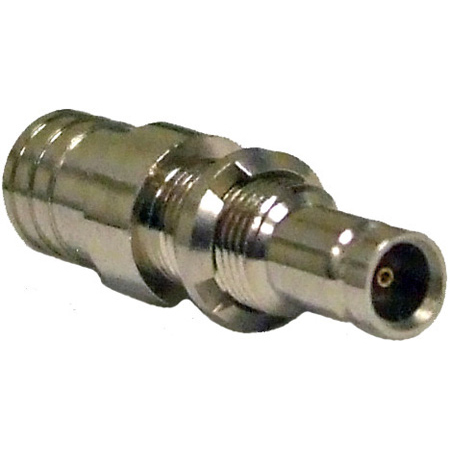

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$8.25

Our Price:

$4.99

Special Price:

$3.99

Availability: In Stock
iAvailability Description Popup
  • Shipped to USA (50 states) only.


1.0/2.3FPF - Overview

Female Connector - 1.0/2.3 Fixed Pin for Mini RG-59 including 1855a type

This connector is a cable end female connector that is made to be panel mounted. Mates with the 1023FPB.

Our newest connector has upgraded performance to meet future needs with a return loss of >10dB out to 4.5 GHz. It is designed to mate securely with a broad range of jacks used on router panels. The small profile of this connector supports high density broadcast applications such as the NVISIONr NV8288 Digital Video Router.

  • Specifications:

    • Impedance - 75 Ohm
    • Frequency Range - DC - 3.0 GHz
    • Insertion Loss - < 0.5dB @ 3 GHz
    • Cable Retention Force - > 40 lbs
    • Center Pin Retention - > 150 grams
    • Mating Style - Positive locking
    • Current Rating - 2 Amps
    • Working Voltage - < 300 vrms
    • Center Conductor Contact/Plating - Phosphor Bronze/Gold
    • Body Material/Plating - Brass/Gold and Nickel
