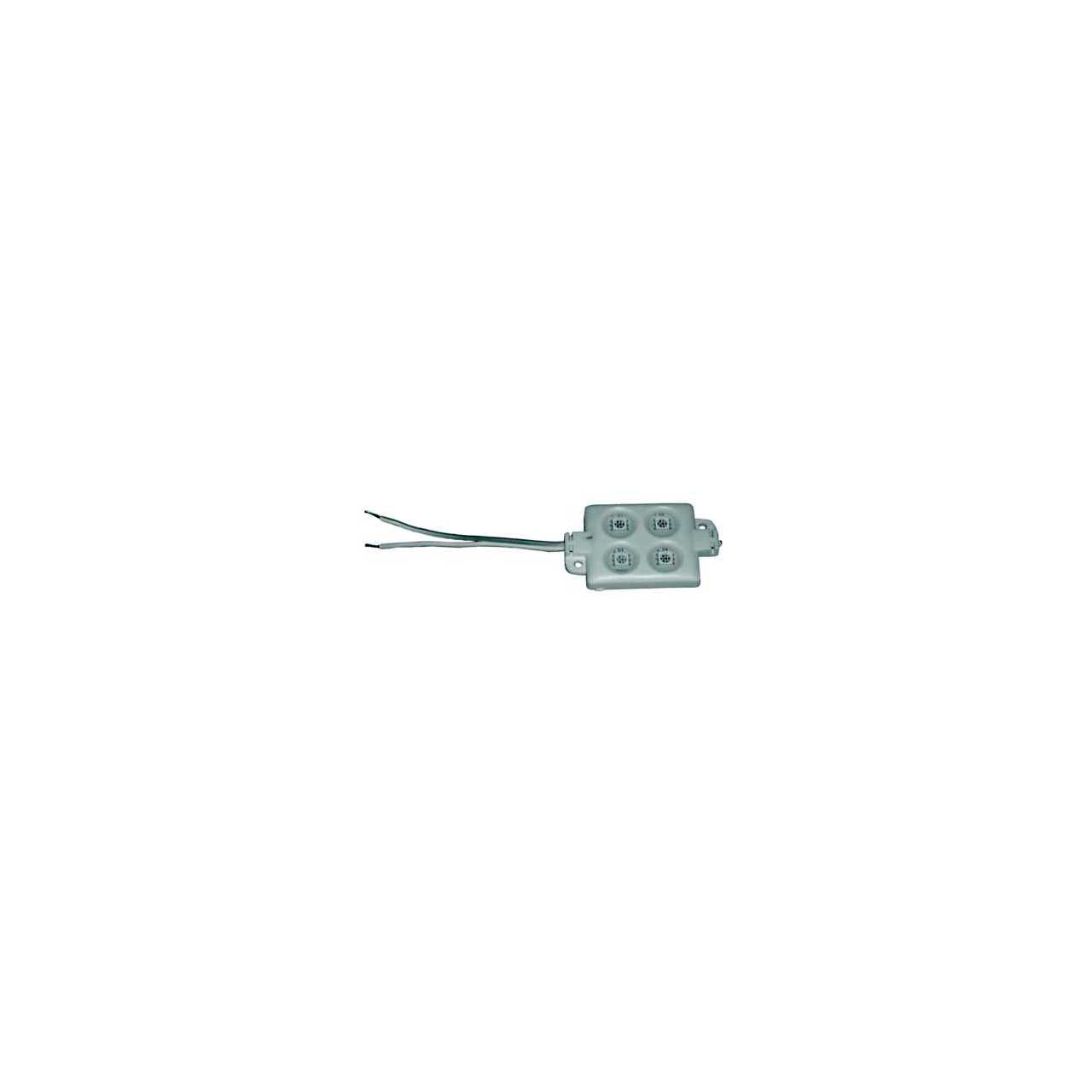

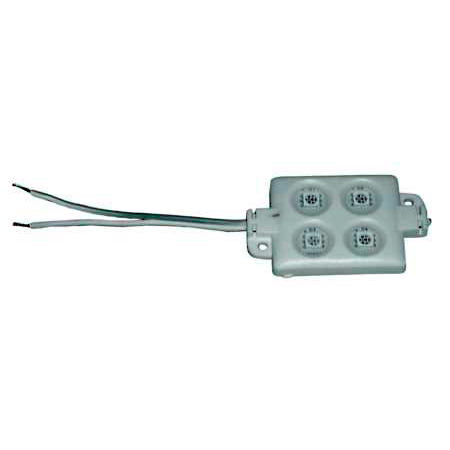

4 LED DC12V Light Module - Warm White

ITEM #: 11-2956 MFG #: 11-2954

free ship

List Price:

$7.94

Our Price:

$6.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    11-2954 - Overview

    The LED Light Module has housing made of ABS plastic with a transparent epoxy seal around the LEDs. This provides a robust construction with excellent light distribution and IP-65 sealing, (splashproof and dustproof). The LED Light Modules are available in 3 LED rectangular or 4 LED square configurations. The 50/50 ultra bright LED chip in all standard colors. The modules can be daisy chained for back lighting of signage, illuminating letters and designs, under cabinet lighting, stair lighting and a wide variety of other applications where direct lighting is required. Both 3 LED and 4 LED are supplied with an adhesive backing for quick and permanent installations or can be mounted with wood screws.

    • Features:

      • Color: Warm White
      • 4 LEDs
      • Input Voltage: 12VDC
      • Input Power: 0.0453A
      • Projection Distance: 1m±
      • Luminous flux: 42.948
      • Lighting Efficiency: >80%
      • Color Temperature 6000 ± 500K
      • Coloration Index: Ra>75
      • Working Temperature: -4°F ~ 104°F
      • Storage Temperature: -25°F ~ 140°F
      • Life: >30,000 hrs
      • Material: ABNS & Epoxy Resin
      • Dimensions: 2.69"" x 0.77"" x 0.22""
      • IP Rating: IP65

    • Specifications:

      • Weight: 0.04 lbs.
      • Hazardous: No
      • RoHS Comp: Yes
      • Warranty: 365 days
      • Length: 7 in.
      • Width: 3 in.
      • Height: 0.5 in.
