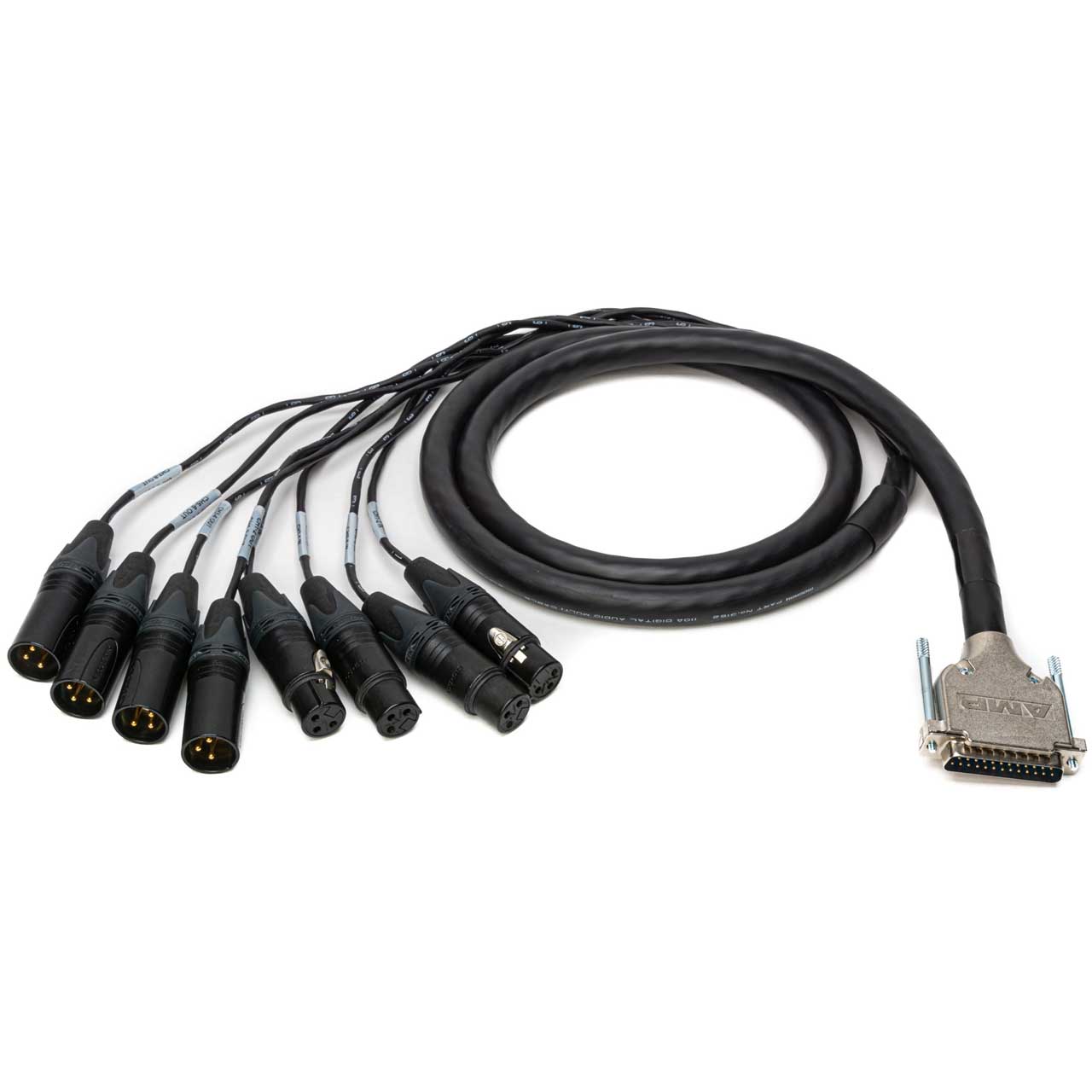

Sescom DB25 DA-88 Audio Cable Mogami 25-Pin D-Sub Male to Combo 4 XLR Female and 4 XLR Male - 5 Foot

ITEM #: 25MD-XC-M05 MFG #: 25MD-XC-M05

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$169.95

Our Price:

$152.95

Availability: In Stock
iAvailability Description Popup


    25MD-XC-M05 - Overview

    Cables are crafted with Mogami super flexible 3162 cable. All channels are numbered and individually shielded twisted pairs of #24 AWG gauge conductors. Standard fan out is 18 inches for common interface requirements. Designed for superior connectivity and strain relief, these assemblies feature the Neutrik XCC series digital AES/EBU XLR's and industry standard AMP DSub cable hood. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar, Tascam and other equipment.

    Features the TASCAM pinout - compatible with Tascam, Digidesign, Radar, and Panasonic. NOT compatible with equipment using the YAMAHA pinout. Please confirm your requirements before ordering or contact Sescom with any questions.

    • Features:

      • DB25 Male to 4 XLR Female and 4 XLR Male Digital Audio In or Out
      • Crafted with Mogami 3162 Cable
      • All Channels are Individually Shielded & Twisted with #24AWG Gauge Conductor and Drain Wire
      • Industry Standard AMP 25 Pin Metal Hoods for Durability
      • Cables are Designed with Industry Standard AMP DSub Cable Hoods for the Best RF Rejection
      • Neutrik NC3FXX Female and Male Connectors Provide Low Contact Resistance and High Integrity
      • Made in the USA

    • Specifications:

      • Mogami 3162 Cable: 110 ohm Impedance, 14 pF/ft Between Conductors
      • Attenuation (6MHz): 0.065dB/m
      • Connects Apogee, Mackie, Yamaha type AES 8 channel I/O to a Tascam or Digi Machine
      • Sescom 25-Pin D-Sub (Multipin) Cable Assemblies are Comparable to Assemblies Commonly Referred to in the Industry with Terms Such as DA88 Snake, DB25 Breakout, and DB25 Snake

    • Warranty:

      • 1 Year
