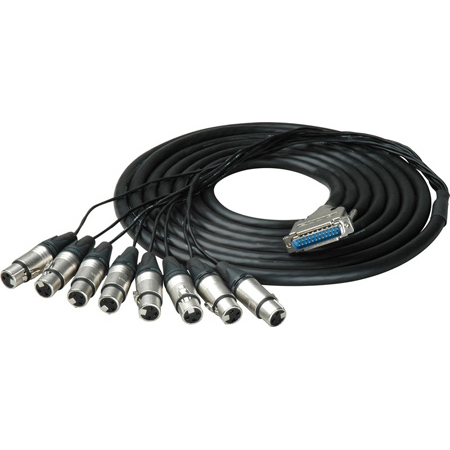

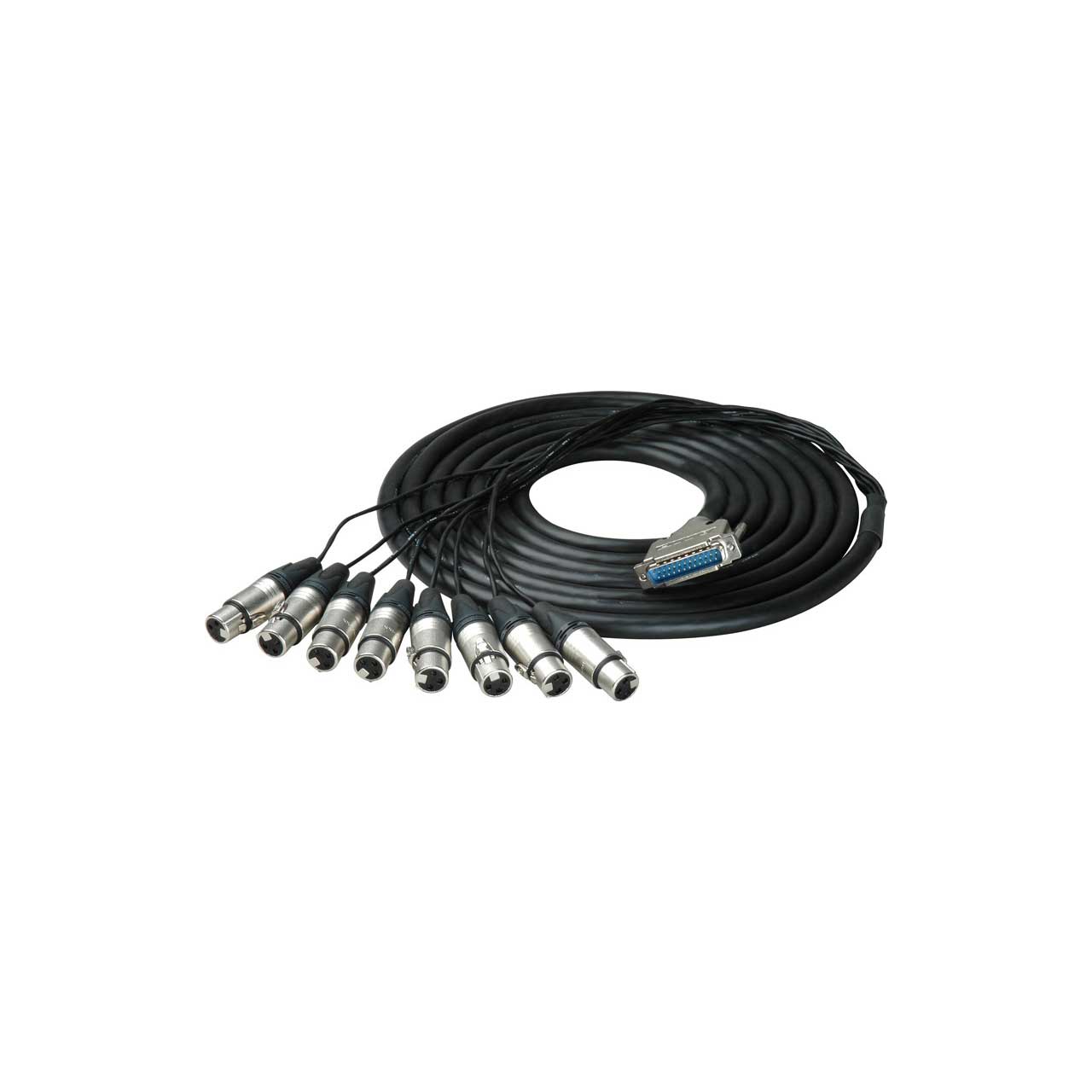

Sescom DB25 DA-88 Digital 25-Pin D-Sub Male to 8 XLR Female Audio Cable - Tascam/Digi - 5 Foot

ITEM #: 25MD-XF-05 MFG #: 25MD-XF-05

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$157.49

Our Price:

$141.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    25MD-XF-05 - Overview

    Cables are crafted with multicore 110ohm AES/EBU digital audio cable. All channels are numbered and individually shielded twisted pairs of #24 AWG gauge conductors. Standard fan out is 18 inches for common interface requirements. Designed for superior connectivity and strain relief, these assemblies feature the Neutrik XX series XLR's and industry standard AMP DSub cable hood. Sescom 25-Pin D-Sub (Multipin) cable assemblies are wired to the Digi/Tascam D-Sub standard and are comparable to assemblies commonly referred to in the industry with terms such as DA88 snake, DB25 breakout, and DB25 snake. Compatible with Digi, Panasonic, Radar, Tascam and other equipment.

    • Features:

      • DB25 Male to 8 XLR Female Digital Audio In or Out
      • Crafted with Multicore Cable, RoHS Compliant
      • All Channels are Individually Shielded & Twisted with #24AWG Gauge Conductor and #24AWG 7/32 Tinned Copper Drain
      • Industry Standard AMP 25 Pin Metal Hoods for Durability
      • Cables are Designed with Industry Standard AMP DSub Cable Hoods for the Best RF Rejection
      • Neutrik NC3FXX Female and Male Connectors Provide Low Contact Resistance
      • Made in the USA

    • Specifications:

      • Cable: 25 MHz Bandwidth, Precision 110 ohm Impedance
      • Conductor to Shield: 26pF/ft
      • Between Conductors:14 pF/ft
      • Sescom 25-Pin D-Sub (Multipin) Cable Assemblies are Wired to the Digi/Tascam D-Sub Standard and are Comparable to Assemblies Commonly Referred to in the Industry with Terms Such as DA88 Snake, DB25 Breakout, and DB25 Snake
      • Compatible with Panasonic, Radar, Digi, Tascam, and Other Equipment

    • Warranty:

      • 1 Year
