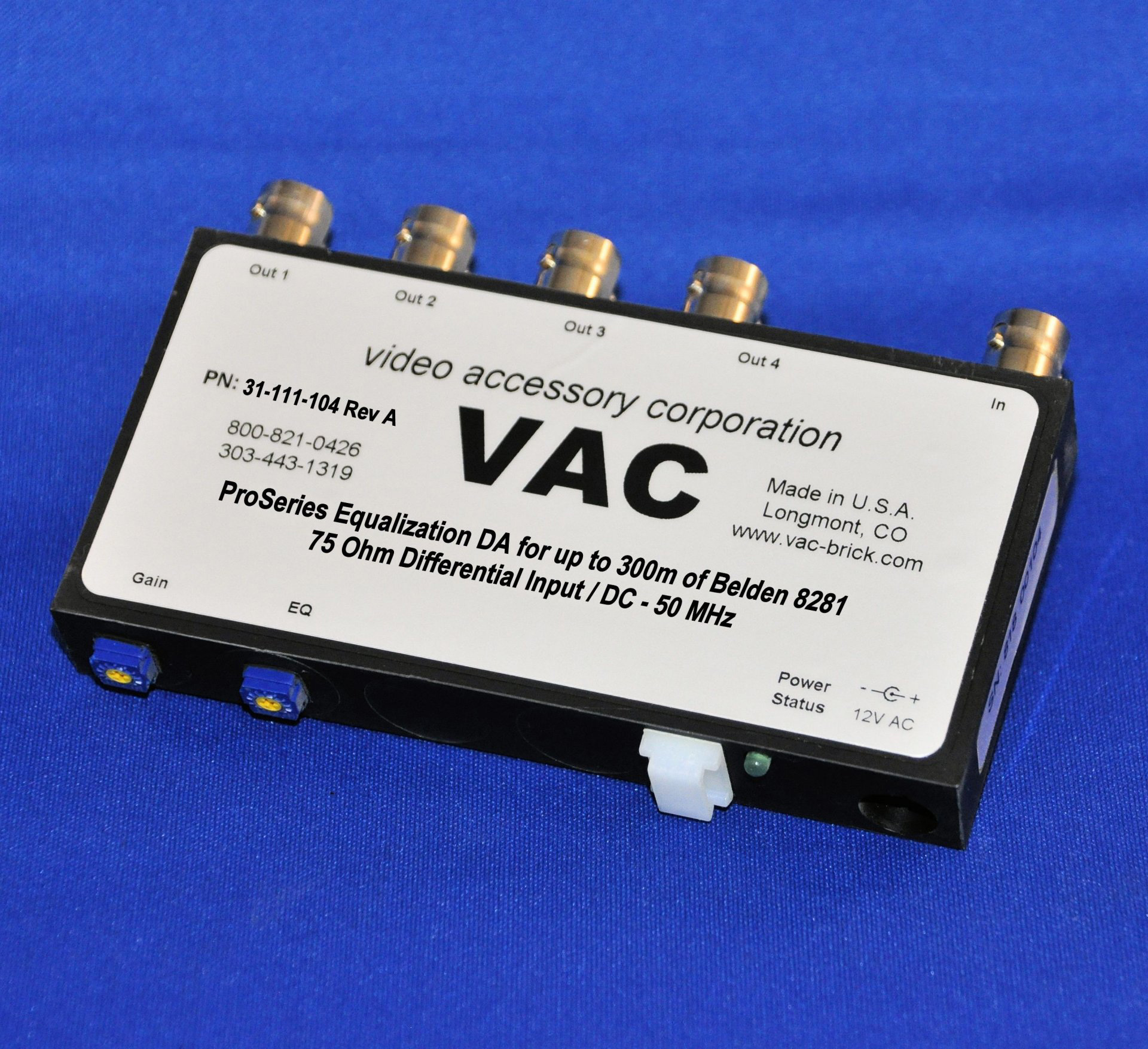

    VAC 31-111-104 Equalizing Video Distribution Amplifier

    Manufacturer: VAC

    Item #: 31-111-104   •   MFG #: 31-111-104


    List Price:$358.00
    Our Price:$336.95

    free ship
    Direct Ship from manufacturer, contact us for availability
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      The VAC model 31-111-104 Equalizing Video Distribution Amplifier provides four video outputs from one differential 75 ohm input for baseband video signals. The 12VAC wall transformer provides isolated power to the Brick to control ground loops.

      This brick utilizes a BNC interface for inputs and outputs. It also carries an LED to indicate power. It provides simple, easy distribution of a single signal to up to four outputs. This unit allows for variable global control of both the equalization and gain of the input signal. This brick is for use with 8281 cable.

      This unit ships with a 12V AC power transformer included.

      • Features

        • 1X4 Equalizing Video Distribution Amplifier
        • Power 12V AC
        • Differential Input
        • Variable Global Gain
        • Variable Global Equalization
        • 8281 Cable
        • Operating temperature range: -40C to +50C
        • Fully encapsulated in epoxy
        • Unit has two 6-32 threaded inserts for mounting
        • Configuration: one input, four outputs
        • Input termination: 75 Ohms
      • Specifications

        • # Channels: 1
        • Inputs/Channel: 1
        • Outputs/Channel: 4
        • Input 1 Signal Type: Composite Video
        • Input 1 Coupling: DC
        • Input Configuration 1: Standard 75 Ohms
        • Gain Configuration: Global
        • Input 1 Connector: BNC
        • Output 1 Signal Format: Composite Video
        • Output 1 Coupling: DC
        • Output 1 Connectors: BNC
        • Power Connector: P5
        • Input Voltage 1: 11-13 VAC
        • Height: .65
        • Width: 4.4
        • Depth: 2.2
        • Low Operating Temp (C): -40
        • High Operating Temp (C): 50
        • Power Bypass: NO
        • Mounting: Two 6-32 Inserts
      • Item Includes

        • 31-111-104 Equalizing Video DA
        • Power Supply
        • Mounting Inserts
