3CSMPTRW25K - Overview

The Remee 3CSMPTRW is a 2500 foot, 3-channel SMPTE 311M hybrid fiber camera cable designed for indoor riser and outdoor wet-location installations. It features water-blocking materials and is suitable for broadcast and HDTV camera systems.

Please Note: Spools have a +/- 5% variance in length. Contact one of our sales reps for exact reel size.

Applications
Broadcast camera systems/setups
Sports and live-event venues
Remote camera connections
Outdoor camera runs between facilities
Permanent riser installations requiring SMPTE hybrid fiber cable

  • Features:

    • 3-channel SMPTE 311M compliant hybrid fiber camera cable for HDTV broadcast applications
    • Indoor CMR/Outdoor Wet-Location rated construction
    • Water-blocked design using water-block tape and water-swellable aramid yarns to help prevent moisture migration
    • 6x BIF (bend-insensitive) single-mode G.657.A1 optical fibers, numbered 1 through 6
    • Shielded construction with drain wire for EMI protection
    • UV-resistant black PVC jacket suitable for outdoor exposure
    • 300V voltage rating


  • Specifications:

      Construction Details - Component 1
    • Conductor: 18AWG 19/30 TC
    • Insulation: Polyethylene
    • Nominal Diameter: 0.07" (1.8mm)
    • Colors: Black, White, Blk/Yel, Wht/Yel, Blk/Orn, Wht/Orn

      Construction Details - Component 2
    • Conductor: 24AWG 7/32 TC
    • Insulation: Polyethylene
    • Nominal Diameter: 0.044" (1.1mm)
    • Colors: Red, Gray, Red/Yel, Gry/Yel, Red/Orn, Gry/Orn

      Construction Details - Component 3
    • Fiber Type: BIF Singlemode G.657A1
    • Buffer: Tight Buffer 900 ± 50 micron (.035 ± .002")
    • Strength Member: Water swellable aramid yarns
    • Sub Unit OD: 0.114 ± .005" (1.3mm)
    • Sub Unit Material: Polyvinyl Chloride
    • Color Code: Yellow numbered 1-6.

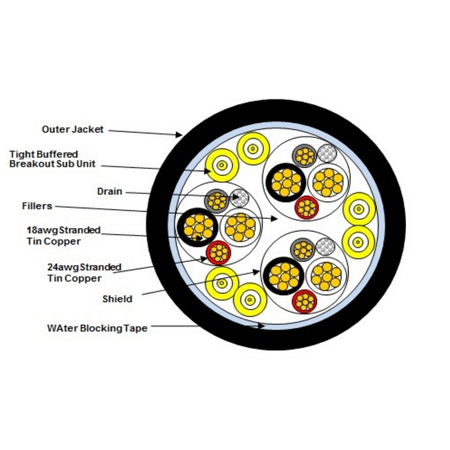

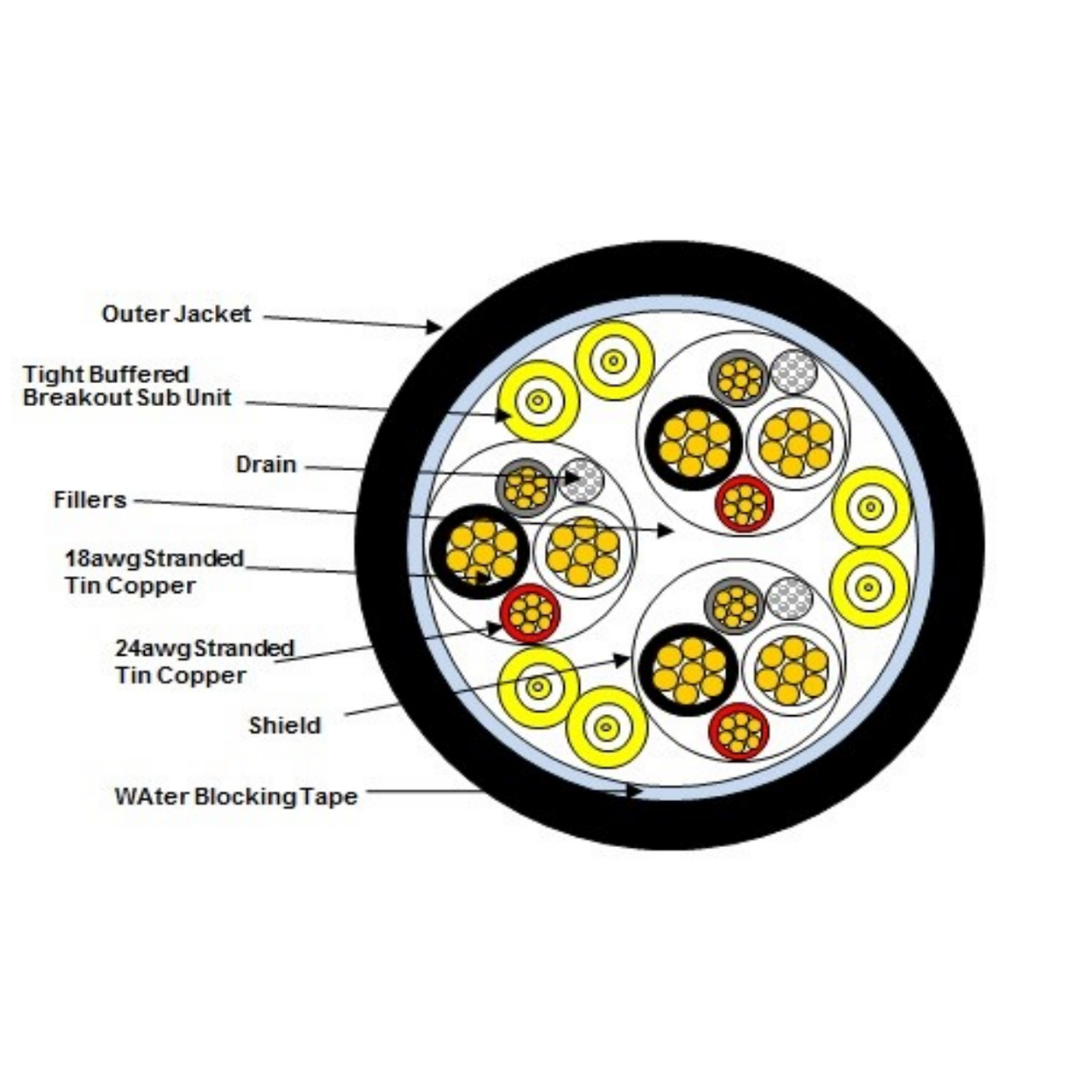

      Overall Construction Details
    • Filler: Solid PVC. Fibrillated Polypropylene for roundness.
    • Cable Assembly: 2x 18AWG and 2x 24awg cabled with drain wire and shield. 3x components and 6x fiber cabled in 8" left hand lay
    • Tape: Water Block Tape
    • Jacket Material: PVC
    • Jacket Thickness: 0.050" (1.3mm), Nominal
    • Nominal Diameter: 0.621" (16.8mm)
    • Jacket Color: UV Resistant Black, (Other Colors Available with MOQ)
    • Footage Marking: Sequentially Marked every 2 Feet

      Electricals
    • Voltage Rating: 300V
    • Optical Attenuation @ 1310nm: ≤ 0.5dB/km
    • Optical Attenuation @ 1550nm: ≤ 0.5dB/km
    • Component 1 (18AWG) DCR 6.21Ω/1M' @ 68°F (20°C)
    • Component 2 (24AWG) DCR: 26.25Ω/1M' @ 68°F (20°C)

      Other
    • Spool Length: 2500 feet (762m)
    • Maximum Cable Pull Strength: 95lbs (43.1kg)
    • Minimum Bend Radius: 4.3" (109.22mm)


  • Item Includes:

    • 1x Remee 3CSMPTRW Hybrid SMPTE 311M HDTV3-Channel Indoor CMR/Outdoor Riser Rated - 2500 Foot


  • Warranty:

    • 1-Year Limited Warranty
