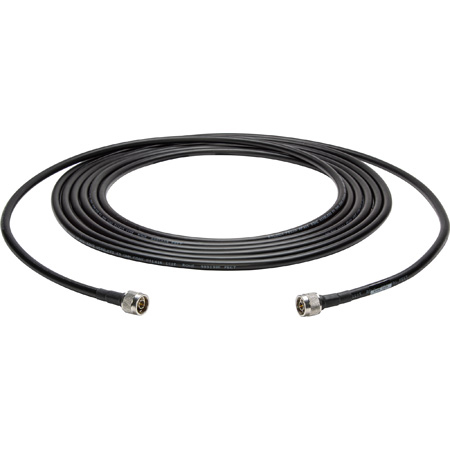

Laird Wi-Fi 802.11 a/b/g-Compatible Belden 7810A N-Type Male to N-Type Male 50 Ohm Cable - 75 Foot

ITEM #: 400-NN-75 MFG #: 400-NN-75

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$341.95

Our Price:

$309.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


400-NN-75 - Overview

Extend your Wi-Fi antenna connection to increase performance. N-Type is the most commonly used connector for wireless antennas and our cables are 802.11 a/b/g compatible. Relocate your current Wi-Fi antenna or add a high gain antenna to meet aesthetic needs and increase the performance of your wireless LAN network. This ultra low loss cable allows longer runs with no signal degradation. Relocating your Wi-Fi antenna to a more central location and out of an equipment closet is a simple and cost-effective solution for propagation problems. We also offer RP-SMA, RP-TNC, and N-Type Extension cables.

  • Features:

    • Amphenol 172216 N Type Straight Crimp Jack
    • Amphenol 132234RP SMA Reverse Polarized
    • 50 Ohm Straight Crimp Plug RF Connector
    • 50 Ohm wireless transmission coax cable

  • Specifications:

    • Belden 7810A 50 Ohm Wireless Transmission Coax
    • RG-8 Type Cable
    • RG Type: 8
    • AWG: 10
    • Stranding: Solid
    • Nom. Diameter: 0.108in
    • Material: BCCA - Bare Copper Covered Aluminum
    • Nom. Conductor DCR: 1.3 Ohm/1000ft
    • Nom. Outer Shield DCR: 2.0 Ohm/1000ft
    • Nom. Capacitance Cond-to-Shield: 23 pF/ft
    • Nom. Impedance: 50 Ohm
    • Nom. Velocity: 86%
    • Non-UL Voltage Rating: 300 V
    • Operating Temperature: -30°C to +75°C
    • Max. Pull Tension: 150 lbs
    • Environmental Suitability: Indoor/Outdoor, Indoor

  • Warranty:

    • 1 Year


400-NN-75 - Required Accessories
