Eaton 5SC500 500VA 350W 120V Line-Interactive UPS Battery Backup Tower with USB In

5SC500 - Overview

Affordable and reliable protection for small business servers, storage and network equipment.

• Specifications:

  General
  • Dimensions (LxWxH): 9.4" x 5.9" x 8.2"
  • Product Weight: 15.2lbs
  • Certifications: IEC/EN 62040-1, UL 1778, IEC/EN 62040-2

    Battery
  • Battery Management: ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
  • Extended Battery Capability: Not available

    Electrical Output

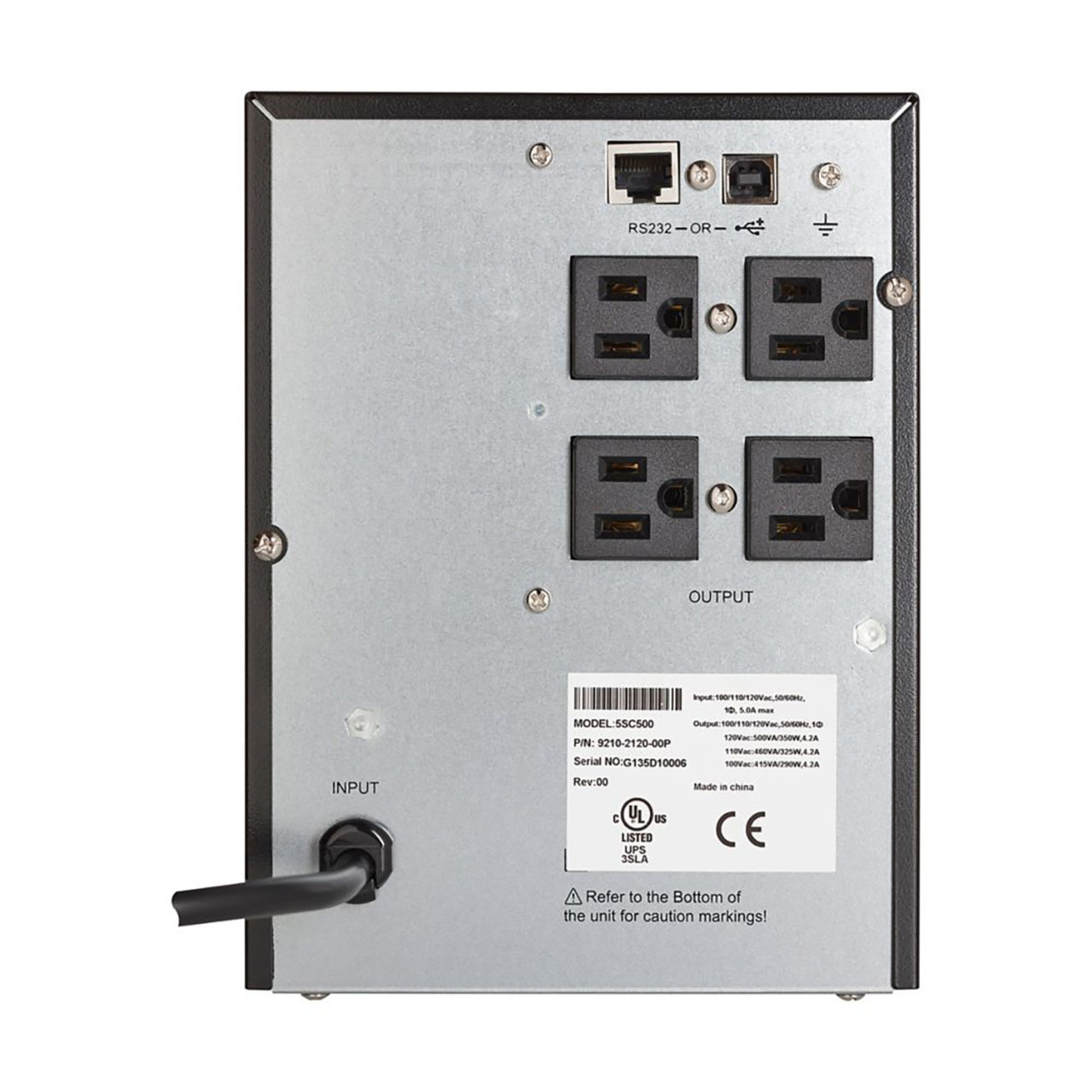

  • Receptacle: 4x 5-15R
  • Output Nominal Voltage: 100V/110V/120V
  • VA Rating: 500VA
  • Wattage: 350W
  • Topology: Line-interactive

    Electrical Input
  • Input Connection: 5-15P
  • Input Nominal Voltage: 120V
  • Input Cord Length: 6ft
  • Input Voltage Range: 96V - 144VAC
  • Input Frequency Range: 45Hz - 55Hz (50Hz system), 55Hz - 65Hz (60Hz system)

    Communications
  • Communication: RS-232 (RJ45) port; USB port as standard (HID). 6ft RS-232 and USB cables included
  • Software Compatibility: Eaton Intelligent Power Manager

    Environmental
  • Noise Level: <40dB at 1m
  • Temperature Range: 32°F - 104°F (0°C - 40°C)
  • Relative Humidity: 0% - 95%, non-condensing

    Other
  • Color: Black
  • Efficiency at Max. Load: 94%
  • Surge Protection: Yes

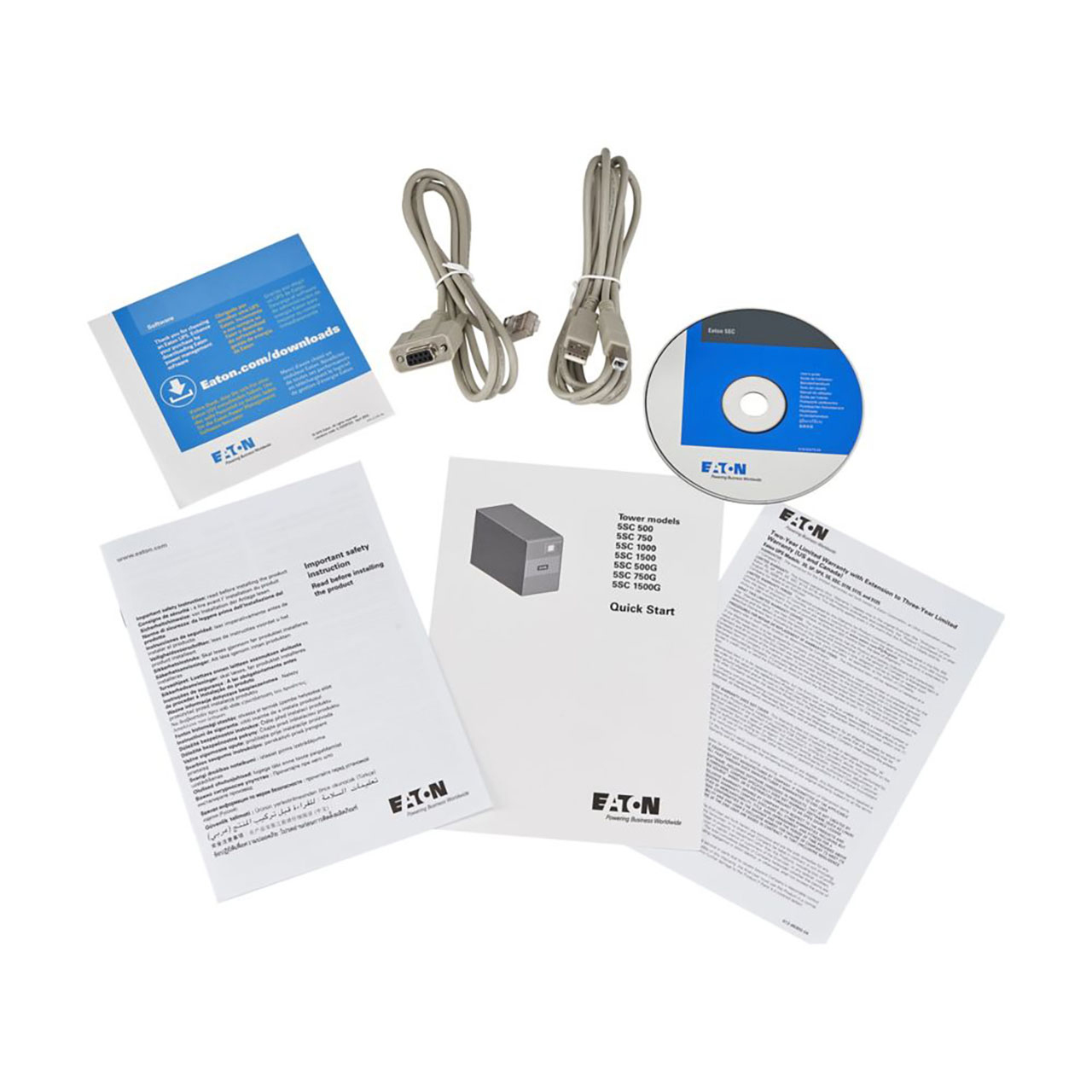

• Item Includes:

  • 1x 5SC500 UPS
  • 1x USB, serial cable and software
  • 1x Warranty for connected equipment
  • 1x User manual and safety instructions


• Warranty:

  • 2 Year Limited Warranty


• GTIN:

  0743172045089
