Angry Audio HEADPHONE GIZMO Stereo Headphone Amplifier w/ Volume Control & StudioHub+ RJ45 Pinout Input - 115VAC Version

ITEM #: AA-HEADPHONE MFG #: HEADPHONE GIZMO

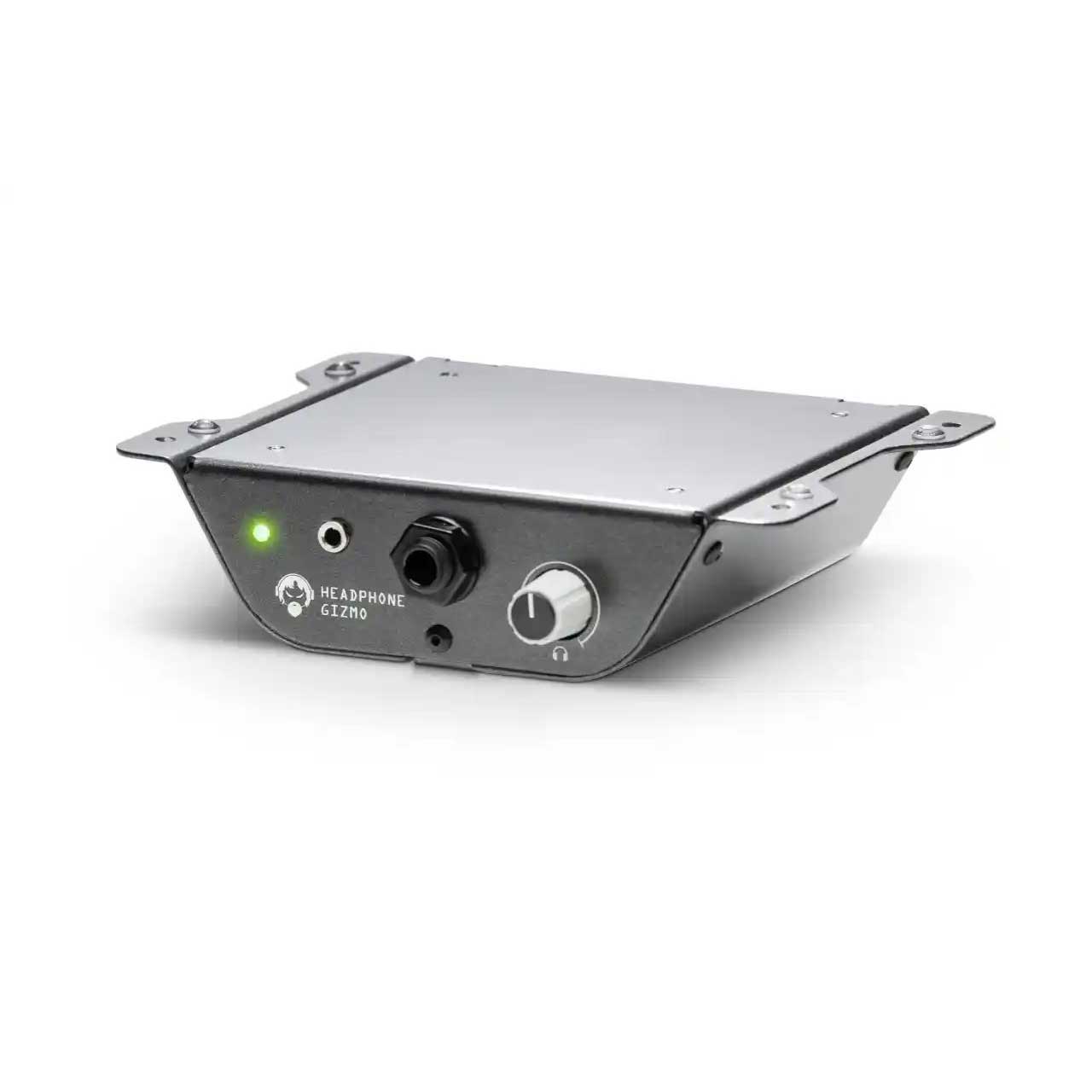

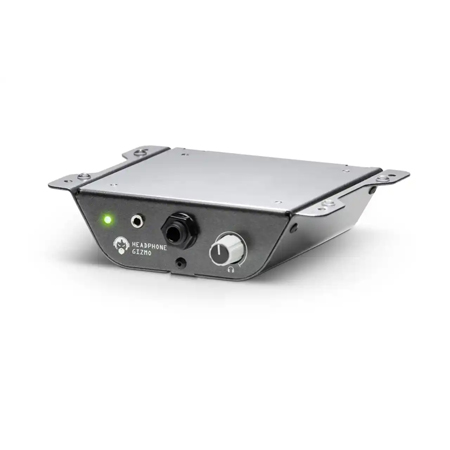

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$229.00

Our Price:

$217.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HEADPHONE GIZMO - Overview

    Radio jocks love loud headphones. Maybe they expect to hear everything with the phones around their necks. Maybe they want to watch the cans jumping to the beat. No matter the reasons, the Headphone Gizmo will give them all the volume they crave. And if your talent prefers to hear all the detail and nuance in their headphones, the precision analog circuitry in the Headphone Gizmo is as transparent as it is loud.

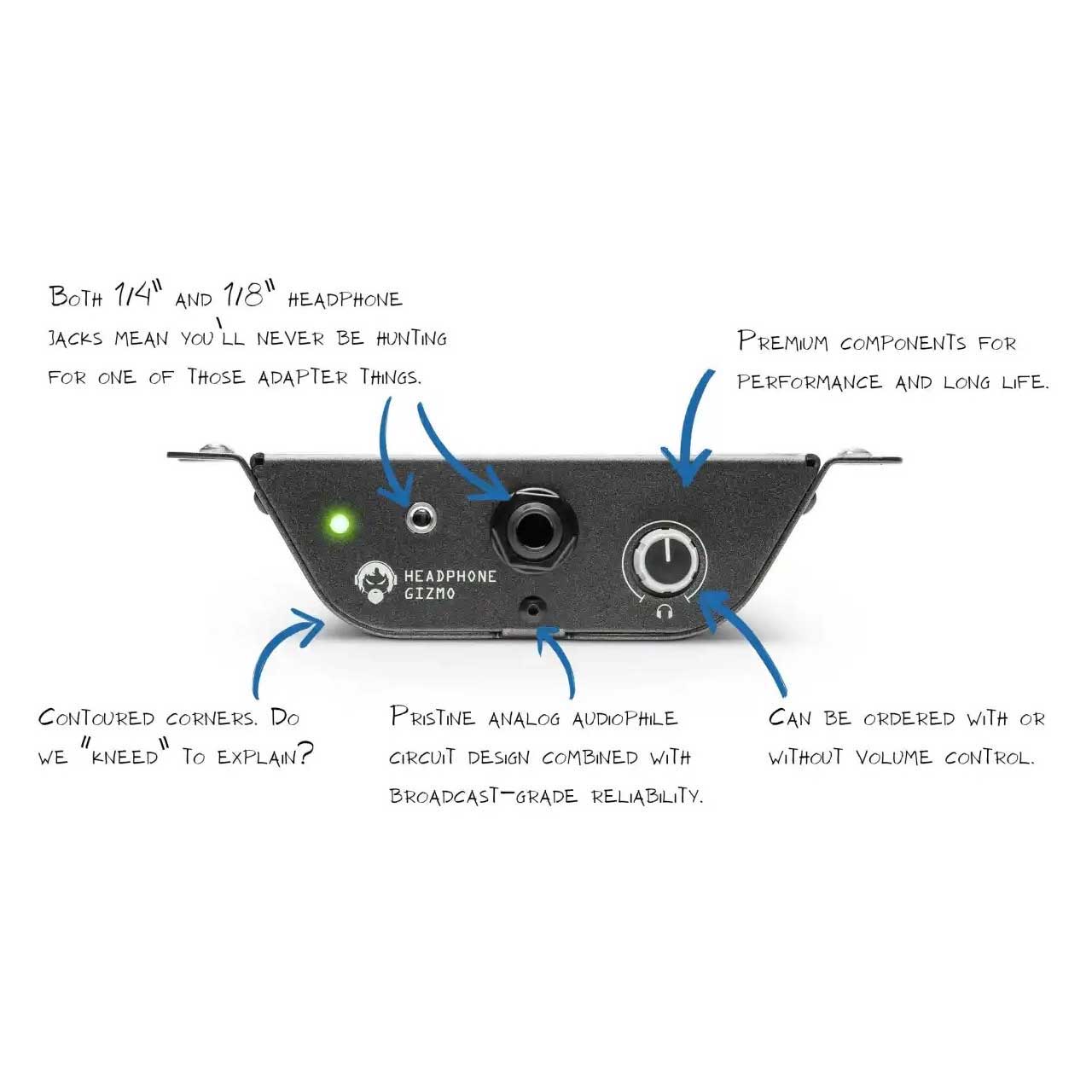

    Headphone Gizmos mount to the underside of your counter to save desktop space, always right where they're needed and never in the way. The low-profile design has contoured edges to prevent painful knee incursions. Both 1/4 inch and 1/8 inch jacks are provided. Whether your talent uses full coverage phones or modern IEMs, the Headphone Gizmo will drive them to perfection.

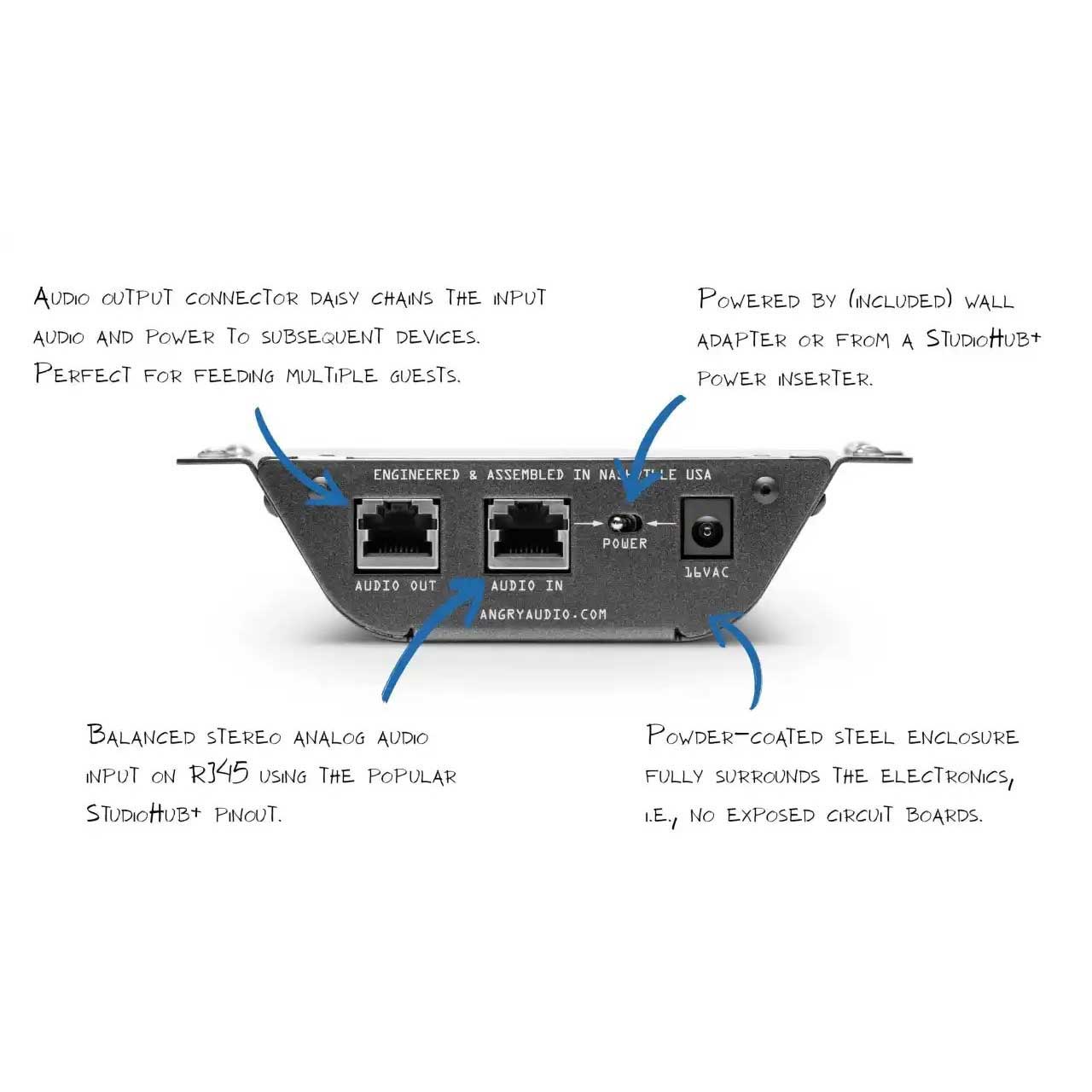

    Feed the Headphone Gizmo stereo audio via its RJ-45 input connector (StudioHub+ format) from your node or blade output. Adapters are available for most audio connector types. A convenient daisy-chain output passes the signal along to the next device. Power the Headphone Gizmo from a StudioHub+ power supply inserter or the included wall adapter.

    The Headphone Gizmo is available in two versions, one with a local volume control and the other with fixed gain. Like all Angry Audio products, the Headphone Gizmo is built for the rigors of radio with its powder-coated steel enclosure, premium components, and RFI-immune circuitry. It will sound amazing for years.

    Most headphone amps are optimized for either a high or low load impedance. The Headphone Gizmo circuitry has no such limitations. It is capable of the high currents needed by low impedance phones. While also comfortably delivering the high voltages your high impedance cans demand. No matter what you plug in, the Headphone Gizmo will never run out of loud, clean power.

    • Specifications:

      • Connections
      • Audio Input and Output RJ45 jack, StudioHub+ format
      • Headphone Outputs 1/8" (3.5mm) and 1/4" (6.3mm) TRS
      • Power 16VAC (115V or 230V) via wall adapter or +/-15VDC via RJ45 audio input jack

        Headphone Amplifier
      • Nominal Input Level: +4dBu
      • Maximum Input Level: +26dBu
      • Input Impedance: 20kΩ Fully Balanced
      • Headphone Impedance: ≥16Ω
      • Output Voltage: +20dBu
      • Output Power: 2.6W per channel at 16Ω
      • Output Current: 400mA
      • Frequency Response: 20Hz - 20kHz ±0.1dB
      • THD+N: ≤0.003% (20Hz - 20kHz)
      • Noise: ≤-96dBu (20Hz - 20kHz unweighted)
      • Dynamic Range: ≥115dB
      • CMRR: ≥80dB (1kHz)

        Power and Environmental
      • Power Input (120V Adapter): 120VAC 60Hz
      • Power Input (230V Adapter): 230VAC 50Hz
      • Power Output (Adapter): 16VAC, 500mA, 8.0W
      • Operating Temperature: 32° to 104° F
      • Storage Temperature: -4° to 113° F
      • Relative Humidity: 0% to 90% non-condensing

        Product Weight & Dimensions
      • Gizmo Dimension: 5.6in x 4.0in x 1.4in
      • Shipping Dimensions: 8.0in x 6.0in x 3.0in
      • Shipping Weight: 3.0 pounds

    • Item Includes:

      • 1x Headphone Gizmo Wall adapter power transformer
