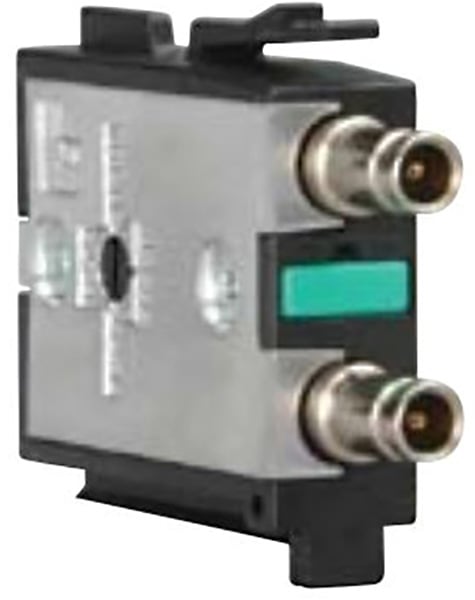

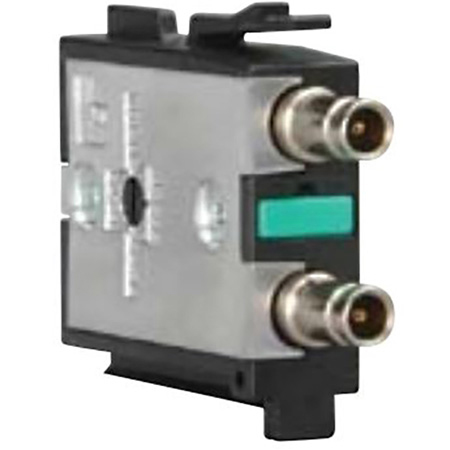

ADC-Commscope SHDC-1023-HP SHDC JACK 1.0/2.3 AES NORM Patch Field

Name: ADC-Commscope SHDC-1023-HP SHDC JACK 1.0/2.3 AES NORM Patch Field
Brand: ADC-Commscope
SKU: ADC-SHDC-1023-HP

ITEM #: ADC-SHDC-1023-HP MFG #: SHDC-1023-HP

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ADC-SHDC-1023-HP

Overview

SHDC-1023-HP - Overview

The ADC Commonscope SHDC-1023-HP is an SHDC jack for PPM panels.

Features:
- Switchable between terminating and non-terminating normalled-through
- Non-normalled jack offered in same jack housing, looping plug available for circuit patching
Specifications:
- Electrical
- Characteristic impedance: 75 W
- Voltage rating: 600 Volts RMS
- Bandwidth: HD LCC: Up to 3 GHz; HD 1.0/2.3: Up to 3 GHz; Straight-through LCC: Up to 3 GHz; Straight-through 1.0/2.3: Up to 3 GHz; AES: Up to 500 MHz
- Contact resistance: .030 Ω max change post environmental
- Insulation resistance: 200 MΩ min change

  Mechanical
- Mechanical durability: 10,000 cycles min (Front port: LCP); 500 cycles min (Back port: LCC)
- Center contact retention: 6 lbs min
- SHDC jack panel retention: 20 lbs min
- Patch cord cable bend and twist: 500 cycles min
- Thermal shock: -40° C to 65° C, operating; -55° C to 85° C, non-operating
- Moisture resistance: 0% to 95%; MIL-STD-202 Method 106
- Corrosion (salt spray): MIL-STD-202 Method 101, Test Condition B
- Flammability: UL 94-VO rated (center conductor insulator)
- Vibration: MIL-STD-202 Method 201
- Solvent resistance: MIL-STD-202 Method 215

  Finish
- Sheet metal panel: .060 CRS with protective black finish
- Jack plastic housing: 30% Glass Filled Valox
- Nickel coax housings: Tarnish-resistant electroless nickel plating
- Springs: Beryllium copper with 50 millionths inch gold plating
- Center conductors: 50 millionths inch gold plating
